Wire Harness of Low-Tension Electric Circuits for Automobiles Avssx-Ts Automotive Wire

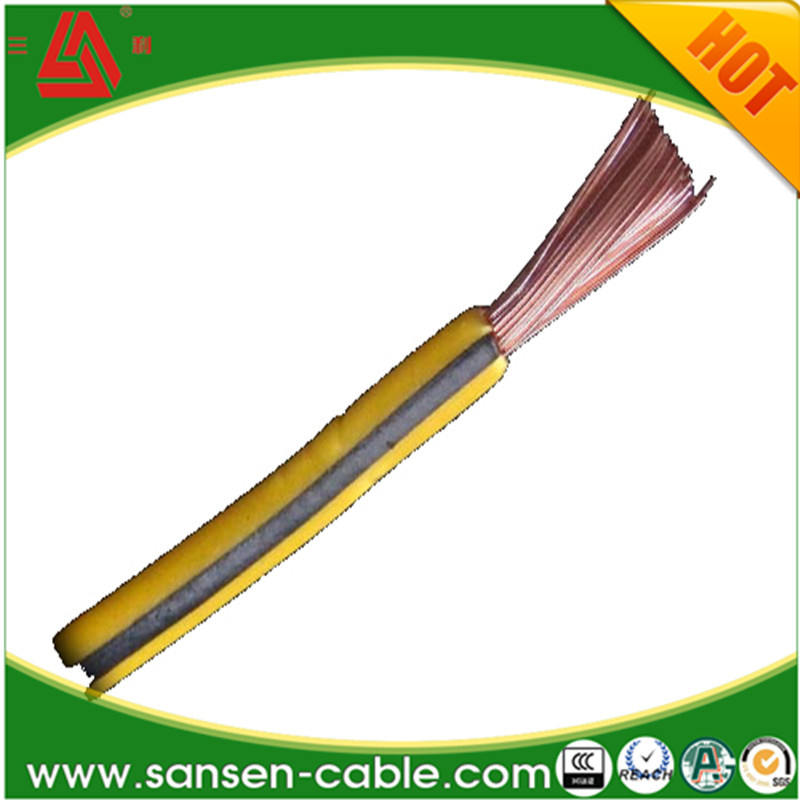

Name: Wire Harness of Low-Tension Electric Circuits for Automobiles Avssx-Ts Automotive Wire
Brand: all-electronics-online.com
SKU: 831983365
Availability: InStock
Rating: 5 (46 reviews)

Price:	Negotiable/Meter
Min Order:	50000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AVSSX
Temperature:	125
Tseting Voltage:	1000V
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS
Range Of Application:	Auto
Brand:	Sansen

Product Description

XLPE AVX Automotive cable 1.25F cable AVSSX auto cable AEX/AESSX 1.25F Automotive Wire

Type TXL GXL SXL auto cable Automotive Wire Construction:

1.nominal voltage: 60V DC,25V AC

2. temperature: 125°C

3. testing voltage: 1000V

4. conductor : copper or tinned copper

5. insulator: XLPE

6. usage : electrical system of vehicles

7. standard : SAEJ1128-2000

Type SXL Automotive Wire Ratings and Approvals:

Recommended Temperature Range: -51°C to +125°C.
Voltage Rating: 60 volts
Ford Specification: Ford (M1L-85A)
Chrysler Specification: Chrysler (MS-5919)
SAE Specification: SAE J-1128

UL Standard TXL GXL SXL Low-voltage automotive cables
Specification:

conductor			Insulator		Packing
conductor			600V		Packing
AWG	Conductor construction No.xΦmm	Diameter mm	Insulator Thick mm	Over Diameter mm	m/roll
30	11/0.08	0.30	0.35	1.00	300.00
28	16/0.08	0.36	0.55	1.30	300.00
26	30/0.08	0.46	0.55	1.40	300.00
24	40/0.08	0.61	0.55	1.50	300.00
22	60/0.08	0.78	0.55	1.70	300.00
20	100/0.08	0.92	0.55	1.80	300.00
18	150/0.08	1.19	0.55	2.30	200.00
16	252/0.08	1.53	0.80	3.00	200.00
14	400/0.08	1.78	0.90	3.50	200.00
12	680/0.08	2.48	1.00	4.50	200.00
10	1050/0.08	3.06	1.25	5.50	100.00
8	1650/0.08	3.75	1.25	6.30	100.00
6	3200/0.08	7.80	1.22	8.50	100.00

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

Jason Zhang | Sales Manager
Huzhou Sansen Cable Co.,Ltd.

Tel: + 86-572-8352155

Fax: +86-572-8182173

Mob: +86-15088322304

Gaolin Road, Xinshi Town, Deqing County, Zhejiang Province, China

http://www.sansen-cable.com

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

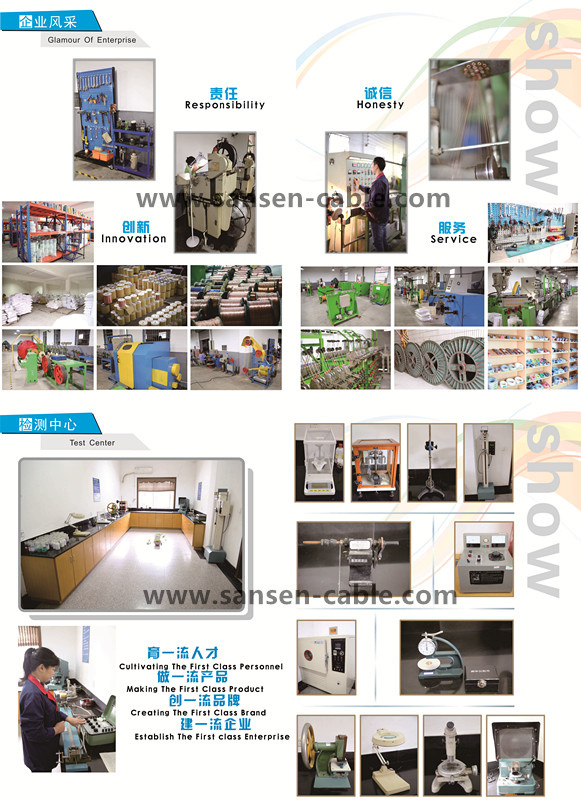

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
