Wire Intelligent Sweeping Machine Ultrasonic Sensor 40kHz Waterproof

Name: Wire Intelligent Sweeping Machine Ultrasonic Sensor 40kHz Waterproof
Brand: all-electronics-online.com
SKU: 835386335
Availability: InStock
Rating: 4.3 (31 reviews)

Price:	US $ 0.2-0.8/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSW-A1440H09TR-W
Product Name:	Wire Intelligent Machine Ultrasonic Sensor
Resonant Frequency:	40kHz
Echo Sensitivity:	≥150mv
Decay Time:	≤1.05ms
Directivity (X):	120±15°
Directivity (Y):	60±10°
Electrostatic Capacitance:	1800±15%PF
Input Voltage:	≤140vp-P
Mean Time To Failure:	50000h
RoHS:	Yes

Product Description

wire Intelligent sweeping machine ultrasonic sensor 40khz waterproof

Specification

Specification Item	Parameter	Remark
Resonant frequency	40±1.0kHz
Echo Sensitivity	≥150mV	Simulation test circuit see Figure 1.
Decay Time	≤1.05ms	Simulation test circuit see Figure 1.
Directivity (X)	120±15°	Directivity test see Fig 2.
Directivity (Y)	60±10°	Directivity test see Fig 2.
Electrostatic Capacitance	1800±15%pF	1kHz/25ºC
Input voltage	≤140Vp-p	40kHz/ pulse width 0.5ms/ interval 20ms
Mean Time to Failure	50000h
Operating temperature	-35~+80ºC
Storage temperature	-35~+80ºC

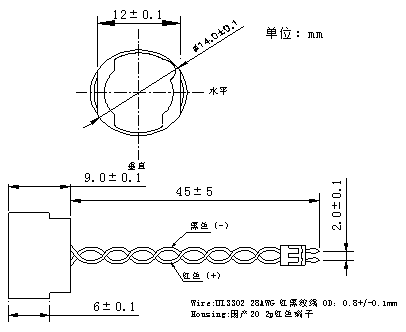

Dimension


Application



Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
