Wire Rope Tension Force Measurements Load Cell

Name: Wire Rope Tension Force Measurements Load Cell
Brand: all-electronics-online.com
SKU: 829938355
Availability: InStock
Rating: 4.8 (145 reviews)

Price:	US $ 56/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-43D
Aplication:	Elevator Scale
Type:	Weigh Bridge
Capacity:	3ton, 5ton, 10ton
Types:	Tension Wire Ropes Load Cell
Feature:	Alloy Steel

Product Description

wire rope tension force measurements load cell

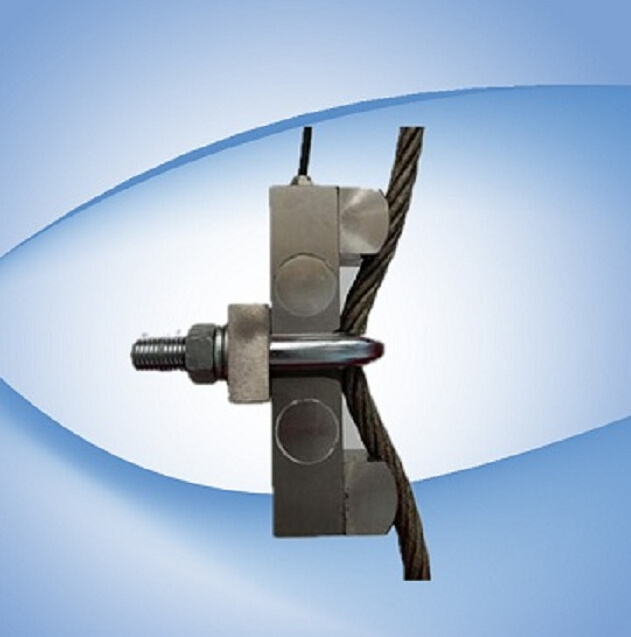

The range of rope clamp load cells are for measuring tension in wire ropes. These load cells have a double ended beam design and are available in 3T, 5T and 10T nominal capacities.

Characteristic:
1.high-quality alloy steel,chemical plating the nickel in surface.
2.simple structure, convenient to install and maintenance.
3.high sensitivity outputing.
4.high coomprehensive precision.
5.compact structure.
6.good long-term stability

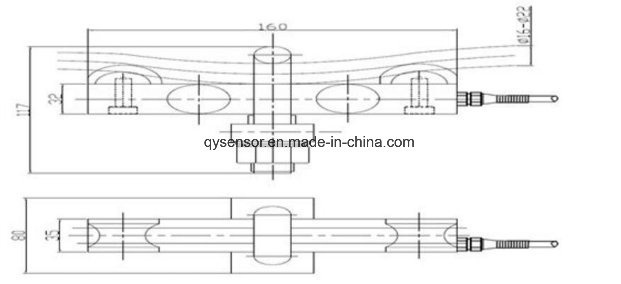

Dimensions:

TECHNICAL PARAMETERS:

Rated Load:	1/2/3/5/10t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.05% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10°C
Tc Span:	±0.02% F.S/10°C
Input Resistance:	750±5Ω
Output Resistance:	702±3Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=L:12m(25~50klb),16m(60~75klb)

WIRING:

Red: +excitation

Black: -excitation

Green: +output

White: -output

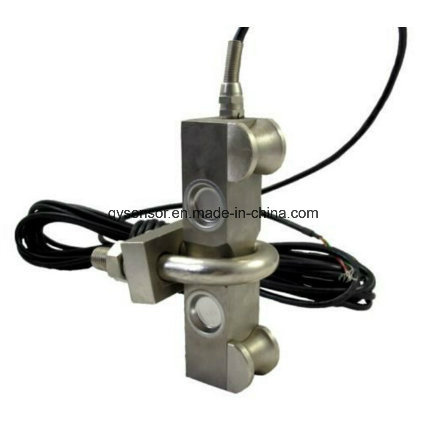

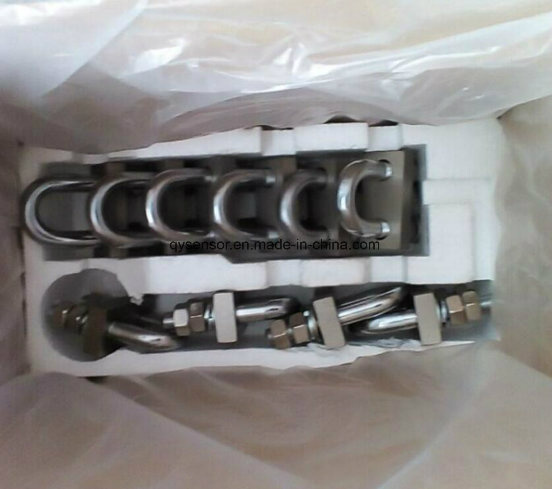

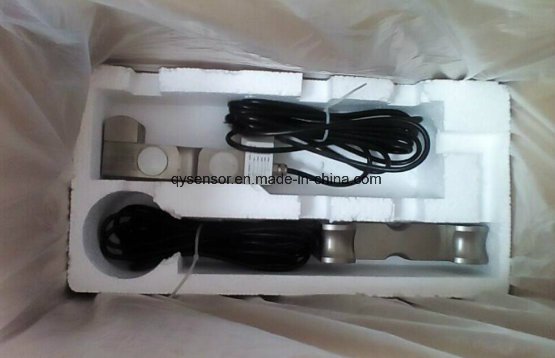

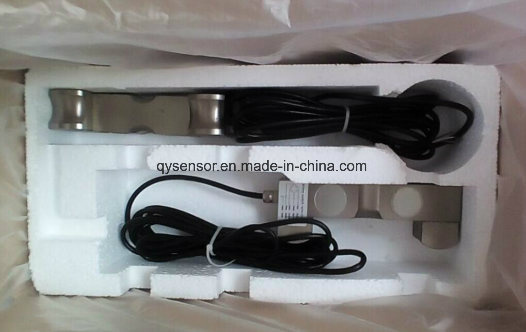

Product Pictures:

FAQ:

1. What is the MOQ?

If we don't have it in stock, the MOQ is 5 pcs

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 7 working days.

If we don't have it in stock, the lead time will be 30-45 days.

3. What is the payment terms?

T/T, Western Union, is acceptable.

4. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

We will choose the safe and cheapest way for you to reduce your cost.

Economic shipping way: by sea, by air transport

If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. What is the quality guarantee?

Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.

6. Is there any after-sale service?

After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade messenger,telephone
