| Prod Model: |
JR101-CB-HB |
| Color: |
Yellow or Customized |
| Wall Mounting: |
Yes |
| Alarm: |
No |
| Vandal Resistant: |
Yes |
| Horn: |
Yes |
| Weather Protection: |
IP66-67 |
| Analogue,SIP,GSM,3G Version: |
Optional |
| Handset: |
Yes |
| Doorcover: |
Yes |
| Material: |
Aluminum Alloy Die Casting Body |
| Usage: |
Maine,Roadside,Tunnel |
| Call Type: |
Mixed |
| Hardware Technology: |
Board |
| Certification: |
ISO |
| Condition: |
New |
Product Description

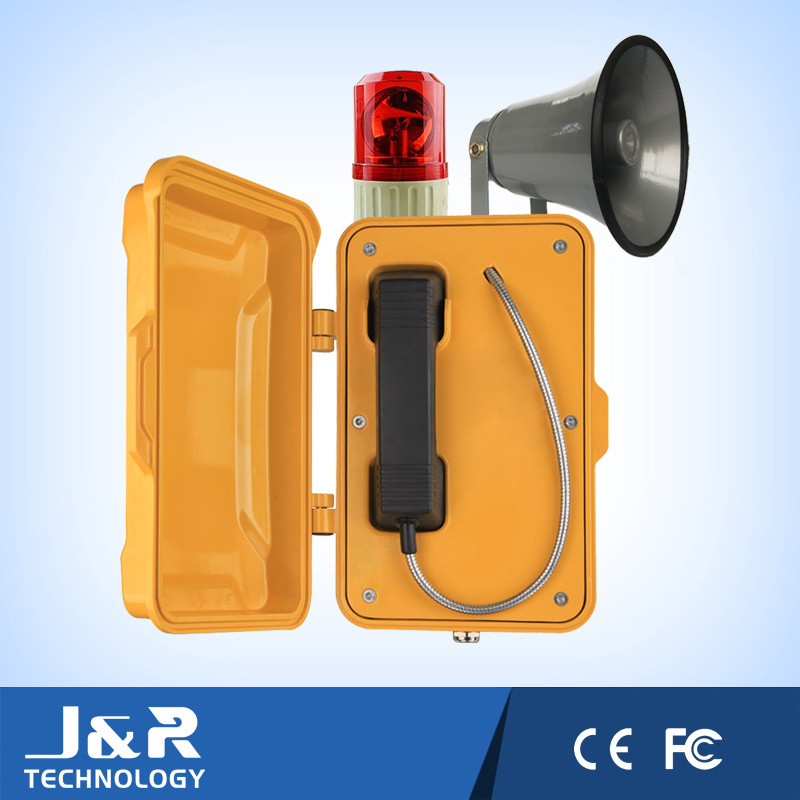

J&R Wireless Alarm Emergency Telephone Weather Resistant Industrial Telephone
APPLICATIONS:
Auto-Dial Emergency Telephone Vandal Resistant Intercom Phone within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. That used for Railway, Highway side, Gas&Oil station,Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
KEY FEATURES:
Suitable for indoor & outdoor application
Designed to flush mount or surface mount into flat surface
The phone has stainless steel faceplate, Material: Metal SS 304,thickness 2 mm.
The telephone electronics is on the rear of the faceplate and is
covered with back box in CRCA for protection
The phone operates on standard analog phone line
It is Line powered i.e. power drawn from telephone line. It doesn't require battery or any external power source.
Handset material: ABS
Built in Ringer, in front panel.
Sealed, push button keypad for smoother and faster dialing of numbers.
Dialing system: Tone dialing (DTMF)
Hook Switch: Non -movable, Magnetically operated hook switch
Handset with Noise canceling microphone for effective communication from noisy areas
Handset cord: Stainless Steel spiral cord
No mechanical or moving parts.
Compatible for interconnection with external ringer, flasher, hooter etc. through additional hardware
Compatibility: Fully compatible with all PBX's
Cabling: Single Pair Telephone Cable
FEATURES:
Analogue/SIP/GSM/3G phone
All weather protection IP66-67
With horn and beacon
Loudness of sound can be 110~120 DB
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmable for auto-dial
Can be programmed remotely by tone phone
Robust construction, Vandal resistant
Non-volatile memory
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC compliant
TECHNICAL SPECIFICATIONS:
| Telephone Versions | Analogue,SIP,GSM,3G Optional |
| Operating Temperature | -30°C to +65°C |
| Storing Temperature | -40°C to +75°C |
| Ringing Tone | 80 dBA @ 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |
| Power Supply | telephone line or DC or solar powered |
| Weather Resistance | IP66-IP67 |
| Casing Material | Aluminum alloy die casting body |
Dialing:MF (tone)
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
PACKAGE
Unit size: 339*246*126(mm)
Carton size:200*300*440( mm )
Packaging materials: pearl cotton, carton
Net weight: 8.8KG
Gross weight: 12KG
