Wireless Dimmable Microwave Motion Sensor Combine with LED Driver (KA-DP27)

Name: Wireless Dimmable Microwave Motion Sensor Combine with LED Driver (KA-DP27)
Brand: all-electronics-online.com
SKU: 777613035
Availability: InStock
Rating: 4.7 (21 reviews)

Price:	US $ 8.5-15.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP27
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery Time:	Within 30 Days
Warranty:	2 Years
Package:	Customized Color Box or White Box
Type:	Microwave Sensor Switch
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Principle:	Microwave Sensor
Application:	Corridor, Warehouse,Garage,Toilets etc.

Product Description

KA-DP27 Wireless Dimmable Microwave Motion Sensor Combine with LED Driver specifications:
1) Power supply: 100-130VAC; 220-240VAC
2) Power frequency: 50/60Hz
3) Installation sit: Indoors, ceiling mounting
4) HF system: 5.8GHz CW radar, ISM band
5) Detection angle: 360°
6) Reach: 2-10m(radii. ), (adjustable)
7) Time setting: 10sec to 10min,(adjustable)
8) Light control: <10LUX,(adjustable)
9) Rated load: 1200W(220-240VAC); 600W(100-130VAC)
10) Transmission power: <0.2mW
11) Working temperature: -15° C~+70° C
12) Power consumption: Approx. 0.5W.
13) Output: DC27V or DC36V
14) Consumed Power: 16W, 18W, 20W or 22W
15) Dimmable setting: 0%,10%,20%,30%

Package:
1) White box or customized color box
2) Carton size: 44*36.5*29cm
3) Gross weight:11.6KGS
4) Quantity/carton:100pcs

Product introduction:

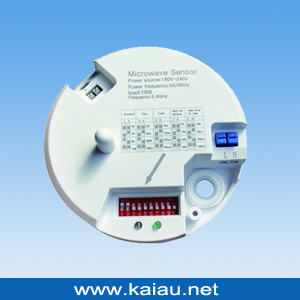

Doppler HF sensor KA-DP27 is a moving object sensor that can detect range of 360° And it's working frequency is 5.8G. The advantage of this product is stable working state (stable working temperature: -15° C~+70° C), KA-DP03 adopts a microwave sensor(high-frequency output<0.2mW), so that it is safe and performs better than infrared sensor.
It can be installed inside of product that is made of glass and plastic because that these materials make little effect to microwave. Connect the product as shows below; You can change a common light to an automatic light.
