| Prod Model: |
CY-ECM-CT01-13-008 |
| Type: |
Wireless Single Phase AC One-Piece |
| Basic Measurement And Energy: |
Voltage/Current/Active Power/Reactive Power |
| Operating Temperature: |
-40c- 85c |
| Rated Primary Current: |
20A |
| Communication: |
Antenna, Internel |
| Communication Port: |
RJ45 Port |
| Application: |
Instrument |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Coil: |
Wireless Single Phase AC One-Piece |
| Brand: |
Chuangyin |
Product Description

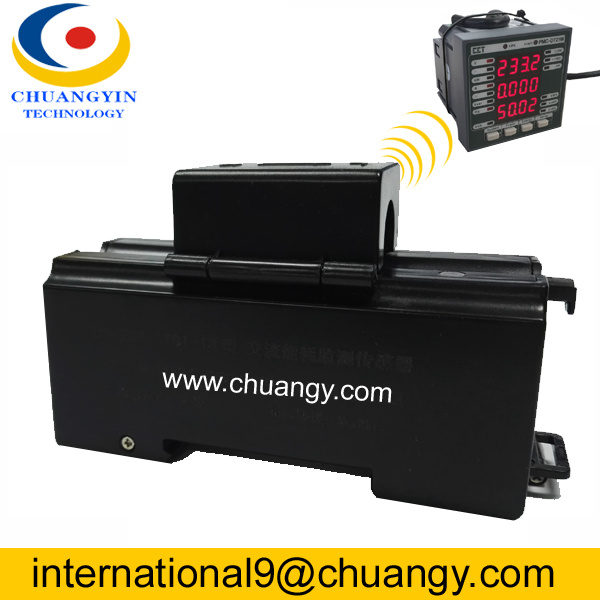

Wireless Single Phase AC One-Piece Energy Consumption Sensor split core current transformer
Main Feature
.Divisible top, high precision and little wastage
.Nice appearance, small volume, little weight and easy to install
.Open and easy to install, working in hot-line withoutinfluence and tearing the generatrix
Typical Application
.Used in the energy comsumption monitoring of mobilecommunication cabinet, small volume and easy to install, it could measureelectric current, power , energy monitoring system
.Used in generalized measuring of strong maneuverability,system room or continued power system
Drawing
Function
Item |
Project |
Basic measurement and energy |
Voltage |
Current |
Active power |
Reactive power |
Apparent power |
Power factor |
Forward and reverse direction power |
Forward and reverse direction idle power |
Frequency |
In -out |
Photoelectric energy pulse output |
Communication |
Zigbee communication(ModBus -RTU)
Or RS -485 communication(ModBus-RTU) |
Technical Index
Item |
Project |
Parameter |
Environment condition |
Environment temperature |
-40 º C-+85 º C |
Atmosphere |
70Pa-106Kpa |
Humidity |
5%-95%(no condensation) |
Storage temperature |
--40 º C-+85 º C |
Power |
Scope |
85-265V AC,47-440HZ |
consumption |
≤0.8W |
|
(In rated) |
20A |
Current |
consumption |
<0.4VA@100A |
Accuracy index |
Overload ability |
5In(100A),continued working 20In ,allowed 1s |
Accuracy index |
Voltage |
±0.5% |
Current |
±0.5% |
Active power |
±1.0% |
Reactive power |
±1.0% |
Apparent power |
±1.0% |
Active energy |
GBT17215.321-2008,1 |
Reactive energy |
GBT17215.321-2008,2 |
Power factor |
±1.0% |
frequency |
±0.02Hz |
Communication |
Zigbee communication port |
1,ModBus-RTU,the distance of communication is 80m outdoor |
Antenna |
Internal |
RS-485port |
1,ModBus-RTU,4800bps-19200bps |
Communication port |
RJ45port |
Electric insulation ability |
Dielectric strength |
GB/T13729-2002,AC frequency voltage 2KV,time 1min |
Insulation resistance |
GB/T13729-2002,insulation resistance value≥100MΩ |
Surge voltage |
GB/T13729-2002,1.2/50US,5KV Standard lighting wave |
Shock |
Response:GB/T11287-2000,1:durability:GB/T11287-2000-1 |
Mechanical property |
Impact |
Response:GB/T11287-1993,1:durability:GB/T11287-1993-1 |
|
crash |
Parameter |
Electromagnetic compatibility |
Complete
Machine |
ESD noise immunity |
GB/T 17626.2-2008,3,Contact discharge:6KV;criterion B air discharge :8KV ;criterion B |
Electromagnetic field radiation noise immunity |
GB/T 17626.2-2006,3,10V/m,80%AM(1kHZ),80-2700MHZ;CriectionA |
DC frequency magnetic field noise immunity |
GB/T17626.8-2006,4 |
Re |
GB9254-1998,CLASS B (-6dB)@30MHZ-1GHZ |
Power |
Radio frequency field interaction condition noise immunity |
GB/T 17626.3-2008,3,10V,80%AM(1KHZ),80-2700MHZ;Criterion A |
Ce |
GB9254-1998,Class B (-6dB)@30MHz |
Electrical fast transient noise immunity |
GB/T17626.4-2008,3,±2kv,5/50S,5Khz;criterion B |
Surge noise immunity |
GB/T17626.5-2008,x,difference module 6KV,2Ω,L-N(line to line) &common mode 6KV,12Ω,L-PE(line to shell),N-PE(line to shell)1.2/50-8/20US combination wave plus and minus 5times every time interval 1min; criterion B |
Voltage sags short interrupt and voltage changing noise immunity |
GB/T17626.11-2008,3,drop at 0%UT,time 10ms;drop at 0%UT,time 20ms;drop at70%UT,time500ms;drop at 40%UT,time 500ms;drop at 0%UT,time 5000ms;criterion B,B,B,B,C |
Fluctuations and Flicker |
GB/T17262.5-2007,Pst≤1,plt≤0.65,relative voltage changing dc≤3.3% maximum relative voltage changing dmax≤4%;3.3%the time of d(t) ≥3.3% is less than 500ms |
Hamonic |
GB/T17262.1-2012,50-2000Hz,Class A product requirements |
Impulse Current |
GB50689-2011,difference module 5KA(line to line)8/20US Impulse current, plus and minus 5 times ,every time interval 3 min ;Impulse current criterion |
