Wireless-Single-Phase DC One-Piece Energy Consumption Sensor

Name: Wireless-Single-Phase DC One-Piece Energy Consumption Sensor
Brand: all-electronics-online.com
SKU: 757897515
Availability: InStock
Rating: 4.3 (88 reviews)

Price:	US $ 43-45/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-ECM-CT01-13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Class:	Cat III
Customized:	Customized
Operation:	Easy
Accuracy:	High
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

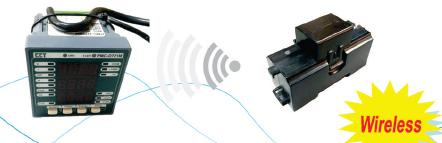

Wireless-Single-phase AC ON Energy Consumption Sensor

Main Feature:
. Divisible top, high precision and little wastage
.Nice appearance, small volume, little weight and easy to install
.Open and easy to install, working in hot-line without influence and disassembling the busbar
Typical application:
.Used in the energy consumption monitoring of mobile communication cabinet, small volume and easy to install, it could measure electric current, power , energy monitoring system
.Used in generalized measuring of strong maneuverability, system room or continued power system

Dimension:

Technical data:

Sort	Project
Basic measurement and energy	Voltage
	Current
	Active power
	Reactive power
	Apparent power
	Power factor
	Forward and reverse direction power
	Forward and reverse direction idle power
	Frequency
In -out	Photoelectric energy pulse output
Communication	Zigbee communication(ModBus -RTU) Or RS -485 communication(ModBus-RTU)

Technical index:

Sort	project		parameter
Environment condition	Environment temperature		-40 º C-+85 º C
	Atmosphere		70Pa-106Kpa
	Humidity		5%-95%(no condensation)
	Storage temperature		--40 º C-+85 º C
Power	Scope		85-265V AC,47-440HZ
	consumption		≤0.8W
	(In rated)		20A
Current	consumption		<0.4VA@100A
Accuracy index	Overload ability		5In(100A),continued working 20In ,allowed 1s
Accuracy index	Voltage		±0.5%
	Current		±0.5%
	Active power		±1.0%
	Reactive power		±1.0%
	Apparent power		±1.0%
	Active energy		GBT17215.321-2008,1
	Reactive energy		GBT17215.321-2008,2
	Power factor		±1.0%
	frequency		±0.02Hz
Communication	Zigbee communication port		1,ModBus-RTU,the distance of communication is 80m outdoor
	Antenna		Internal
	RS-485port		1,ModBus-RTU,4800bps-19200bps
	Communication port		RJ45port
Electric insulation ability	Dielectric strength		GB/T13729-2002,AC frequency voltage 2KV,time 1min
	Insulation resistance		GB/T13729-2002,insulation resistance value≥100MΩ
	Surge voltage		GB/T13729-2002,1.2/50US,5KV Standard lighting wave
	Shock		Response:GB/T11287-2000,1:durability:GB/T11287-2000-1
Mechanical property	Impact		Response:GB/T11287-1993,1:durability:GB/T11287-1993-1
	crash		Parameter
Electromagnetic compatibility	Complete Machine	ESD noise immunity	GB/T 17626.2-2008,3,Contact discharge:6KV;criterion B air discharge :8KV ;criterion B
		Electromagnetic field radiation noise immunity	GB/T 17626.2-2006,3,10V/m,80%AM(1kHZ),80-2700MHZ;Criterion A
		DC frequency magnetic field noise immunity	GB/T17626.8-2006,4
		Re	GB9254-1998,CLASS B (-6dB)@30MHZ-1GHZ
	Power	Radio frequency field interaction condition noise immunity	GB/T 17626.3-2008,3,10V,80%AM(1KHZ),80-2700MHZ;Criterion A
		Ce	GB9254-1998,Class B (-6dB)@30MHz
		Electrical fast transient noise immunity	GB/T17626.4-2008,3, ±2kv,5/50S,5Khz;criterion B
		Surge noise immunity	GB/T17626.5-2008,x,difference module 6KV,2Ω,L-N(line to line) &common mode 6KV,12Ω,L-PE(line to shell),N-PE(line to shell)1.2/50-8/20US combination wave plus and minus 5times every time interval 1min; criterion B
		Voltage sags short interrupt and voltage changing noise immunity	GB/T17626.11-2008,3,drop at 0%UT,time 10ms;drop at 0%UT,time 20ms;drop at70%UT,time500ms;drop at 40%UT,time 500ms;drop at 0%UT,time 5000ms;criterion B,B,B,B,C
		Fluctuations and Flicker	GB/T17262.5-2007,Pst≤1,plt≤0.65,relative voltage changing dc≤3.3% maximum relative voltage changing dmax≤4%;3.3%the time of d(t) ≥3.3% is less than 500ms
		Harmonic	GB/T17262.1-2012,50-2000Hz,Class A product requirements
		Impulse Current	GB50689-2011,difference module 5KA(line to line)8/20US Impulse current, plus and minus 5 times ,every time interval 3 min ;Impulse current criterion
	RS-485	Radio frequency field interaction condition noise immunity	GB/T 17626.6-2008,3,10V,80%AM(1KHZ),0.15-80MHZ;criterion A
		Electrical fast transient noise immunity	GB/T 17626.4-2008,3, ±2KV,5/50ns,5KHZ;criterion B
		Surge noise immunity	GB/T 17626.5-2008,X,difference module 1.5KV(line to line),15Ω+25Ω/line &common mode 4KV(pair or single line to shell),15Ω+25Ω/line, 10/700us combination wave, plus and minus 5, every time interval 1 min ,criterion B

Method of application:

Depress cover entangle cable open cover of sensor

Common requirements:
.appearance demand: exact and clear brand, no obvious dirty thing on the sensor and the standard, length, colour , position of lead should conform to design
.Package and transmission:
.Storage :temperature of sensor is -40 ºC-85 ºC, Humidity is less than 95%(25 ºC)indoor .Besides, there is no harmful gas and other media which will lead to rusty result

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
