Wireless Smelting Pyrometer W660 Jiebo

Name: Wireless Smelting Pyrometer W660 Jiebo
Brand: all-electronics-online.com
SKU: 700102955
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	US $ 1800-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Type W660
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	14days
Certification:	RoHS
Control Type:	Digital
Type:	Temperature Controller
Display Type:	LCD
Material:	Stainless Steel
Usage:	Industry
Brand:	Jiebo

Product Description

Type: W660
Brand: JIEBO(WUXI)

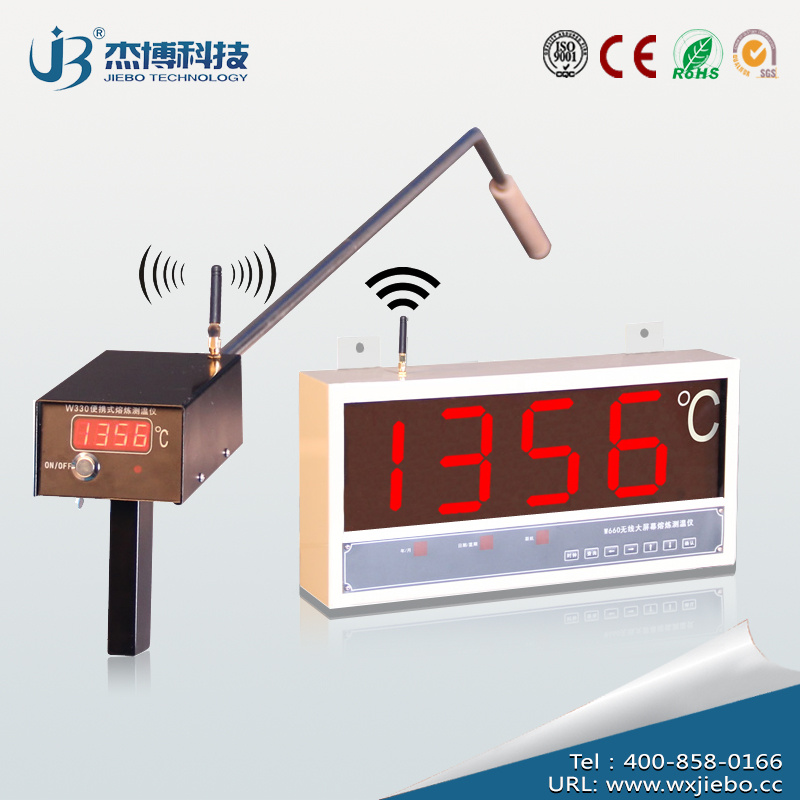

This wireless type big screen smelting pyrometer can simultaneously and accurately take the portable pyrometer's temperature value on the wall mountable large-screen display by Wireless transmission technology, saving the fetter of the wall mountable large-screen display's lines and promoting the anti-interference ability of the instruments.

The instrument can test the temperature quickly and accurately, used in various occasions with the adaptable thermocouple supporting.

Thermocouple(xx1type)RTD(xx2type)voltage(xx3type)
Resisance(xx4type)current(xx5type)
Adjusting Mode
Two digits adjusting(x0xtype)three digits adjusting(x2xtype)
Time proportion adjusting(x6xtype)silicon controlled zero cross(x7xtype)
Silicon controlled three phases zero cross(x8xtype)PID adjusting(x9xtype)
Outline&installing dimension
Outline dimension 160× 80mm installing dimension 152× 76mm
Rated voltage of power supply
AC220V± 10% 50/60Hz
Precison
Display precision 0.1 class, control precision may reach ± 1
Work environment
Temperature 050, relative hunidity≤ 85%
Output capacity of contact
Relay connection point 5A 250VAC, voltage of no connection point DC12V for SSR use
Proportion cycle
Relay: 30secs, no connection point: 2 secs.
Power consumption
≤ 5W
Temperature range
Thermocouple 0-1800 RTD -200-600

Thermocouple	Stype	Measuring range(°C)	Occasions
Single platinum and rhodium	KS-602	0~1750	steel,iron,copper liquid
Single platinum and rhodium	KR_602	0~1750	Steel,iron,copper liquid
Double platinum and rhodium	KB-602	500~1800	High-temperature steel liquid
Tungsten phenium	KW-602	0~2000	Steel, iron liquid
Nickel chrome-Nickel silicon	K	0~1000	Aluminum, zinc liquid
