| Prod Model: |
AT-II-C3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Digital Sensor |
| Usage: |
Thermal Sensor |
| Theory: |
Magnetic Sensor |
| Material: |
Mixture |

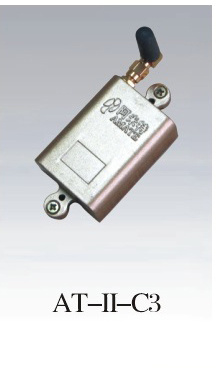

Product Description
It is installed on the surface. It transmites temperature date to the temperature display that within hundred of meters via RF after surveying. Each temperature sensor has its ID No. It sends alarm automatically as temperature is abnormal.
Technical features
1. Adopting advanced digital and wireless transmission technology, it detects accurate data for wireless surveying and remote warning.
2. Standard design, flexible for installing, easy to expand, it is very convenient to connect with other system.
3. Under ensured range, it adopts low power loss design, the battery of the sensor can be used for four to six years, and the battery is replaceable.
4. Electromagnetic interferences immunity design, and the operation is safe, reliable and of high accuracy rate.
Applications
1. Apply to the places that cannot lay the cables, such as high-voltage apparatus, rotary objects, moving objects, closed objects, etc.
2. Instead of the places of expensive wiring, such as the places of scattered detected points, costly cables, complex conditions, etc.
Mainly used in:
1. Electricity
Temperature monitoring for vacuum circuit breaker of indoor closed switch cabinet
Temperature monitoring for outdoor transformer
Temperature monitoring for cable joints
2. Medical
Temperature monitoring for blood and medicines storage
Temperature monitoring for ultra-low temperature freezer
3. Smelting
Temperature acquisition and wireless transmission for high temperature equipment
Temperature monitoring for motor bearing
4. Chemical
Temperature monitoring for chemical reaction tower
5. Other manufacturing
Temperature monitoring for key position of automation equipment
6. Building
Temperature monitoring for public buildings, government agencies, thermostatic chambers and refrigerators
7. Agriculture and Fishery
Temperature monitoring for greenhouse
Temperature monitoring for aquaculture
|
Model |
AT-II-C3 |
|
Sleeping mode current |
<6μA |
|
Measuring temperature |
minus 25~+125ºC |
|
Transmission distance |
100~800 m |
|
Max. transmission power |
10 dBm |
|
Overall dimension (mm) |
50*34*33 mm |
|
Temperature detection point |
1 |
|
Temperature prode |
PN junction |
|
Frequency |
433~434Hz (free of charge) |
|
Voltage |
2.7~3.6V |
|
Measuring accuracy |
±0.1ºC |
|
Measuring time interval |
It is adjustable from 1 minute to 4 hours via remote software |
|
Alarm temperature setting |
It can be set by remote software adjustably. |
