| Prod Model: |
C7RF |
| Plastic: |
Flame Retardance ABS |
| Programmable: |
7 Days Programmable |
Product Description
| Features | Specification |

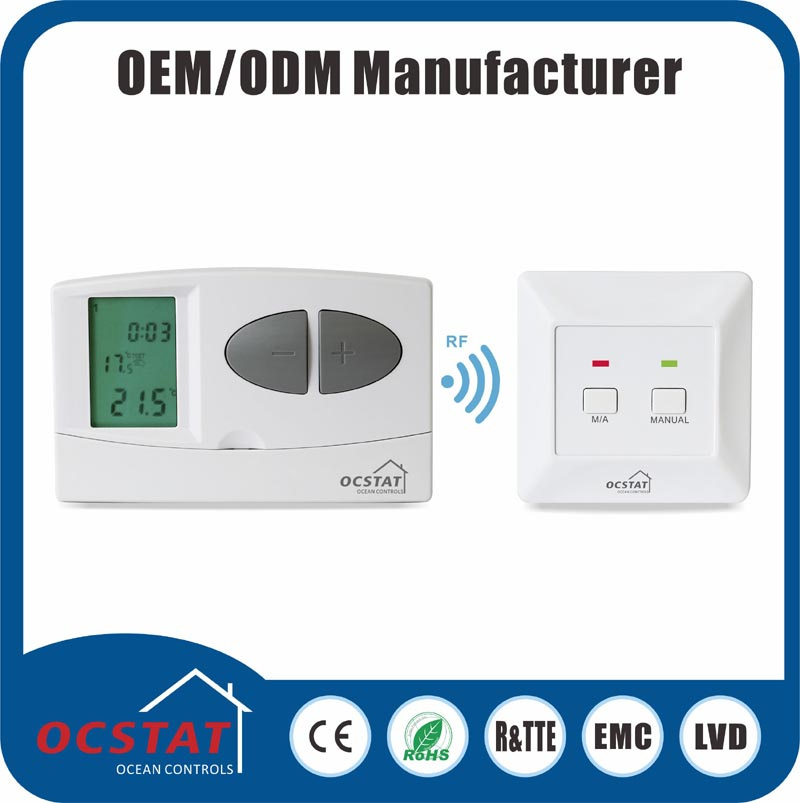

• Wireless Room Thermostat
Transmitter:
• 7 Day programmable
• 6 Time & 6 Temp,per day
• Green back light
• Manual override mode
• 868Mhz with more stable communication
• Wall mount or base mount
• °F/ºC: Temperature display in °F/ºC format
• Battery power supply
Receiver:
• AUTO/MANUAL Switch
• LED system indicator
• Power supply: 230V AC
• Contact rating:6(2)A 250VAC Max | Model No.: C7 RF
Transmitter:
Operating Frequency: 868.35 MHz
Programmability: Programmable
Temperature Range (ºC): 5ºC-35ºC in 0.5ºC
Control Temp.Range (ºC): 10ºC-30ºC in 0.5ºC
Temp.Meas.Accuracy: ±0.5°C
Sensitivity: ±0.2°C / ±0.3°C
Storage Temperature: -10°C to +60°C
Power Method: 2x1.5 V AA alkaline batteries (LR6 type)
Power Consumption: 1.3 mW
Dimensions: 130 x 80 x 35mm (without holder)
Temp. Sensor Type: NTC 10 kΩ ±1% at 25°C
Receiver:
Power Consumption: 6W
Power Supply Voltage: 230V AC, 50Hz
Switchable Voltage: 24 V AC / DC,…250 V AC; 50 Hz
Switchable Current: 6 A (2 A inductive load)
Transmission Distance: approx. 50 m in open terrain |
| Advantage: |
| 1. Competitive price and stable quality. |
| 2. Deliver promptly. |
| 3. 1:1 replacement for defective in materials or workmanship. |
| 4. Release new products regularly. |
| Ocean Controls Limited |
| Add:Build A,Dongxing Industrial Park,Hengli Town,Dongguan, Guangdong,China |
| |
| MB: +86 137 5126 2649 |
| |
| |
| |
| http://www.ocstat.com |
FAQ:
Q1. Can I get any discount?
A1:The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, We offer you wholesale price. We also have promotions several times a year.
Q2. How much are the shipping costs?
A2:Shipping cost is charged by the package's weight and related to the shipping methods you choose and your destination.
Q3. Do you offer samples?
A3:You can buy 1pcs in first order to check the quality. then we send some other designs small cutting as samples with your order.
Q4. How many styles for my select?
A4:Many types for your choose or as per customized.
Q5. I am a designer, Can you help me to produce the sample which we designed?
A5:Many types for your choose or as per customized.
Q6. Can you make OEM or ODM service?
A6:Yes. We can accept OEM service. Also we have our own designer team. So it's also welcome to choose our ODM products.
Q7. Tell me your company's strength, because I want to place order to you.
A7: Our company has a long-time experience in thermostats, also we have R&D team in thermostats,we have many famous clients around the world.
Q8. Do you have some special policies for Brand company?
A8:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year, so that we could support you the products in your market.
Ocean Controls Limited was founded by an industrial engineer with 10 years experience in the design and manufacturer of top-end electronic room thermostats.
We provide OEM/ODM services to worldwide customers, including manufacturing, design, engineering and tooling.
With many years of experience, our products feature unrivalled quality, reliability and durability. We export our products all over the world, especially to European and American markets. Currently our main products includ: Non-programmable/programmable thermostats, dial/push button/touchscreen thermostats, wired and wireless thermostats, we can also make timer, immersion/capillary thermostat and other related heating system control parts as per the customer's request. The products meet CE, R&TTE, FCC, UL and CSA approved quality standards.
Our factory has three sets of SMT, 10 sets of injection molding machine and advanced moulding equipments, Monthly capacity is more than 50, 000 PCS, and this can be expanded according to customer requirement.
We have a strong R&D team with more than 10 years experience in the thermostat field, They are seasoned in the design, develop and testing of electronic thermostats, HVAC controller and accessories. In addition, we have broad experience in RF remote control products like remote wireless thermostats. Based on the above, we can design/develop new models for you upon your technical specifications or samples.
As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We are committed to continuous improvement and on building win-win relationships with our partners.
