Wireless Transmitter and Receiver

Name: Wireless Transmitter and Receiver
Brand: all-electronics-online.com
SKU: 747323895
Availability: InStock
Rating: 4.7 (58 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	500/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JJ-JS-084
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Giant
Style:	Transmitter and Receiver
Frequency:	433.92MHz
Working Voltage:	6-24V
Delivery Date:	25 Days
Payment:	Tt,Wu,Paypal
Port:	Xiamen

Product Description

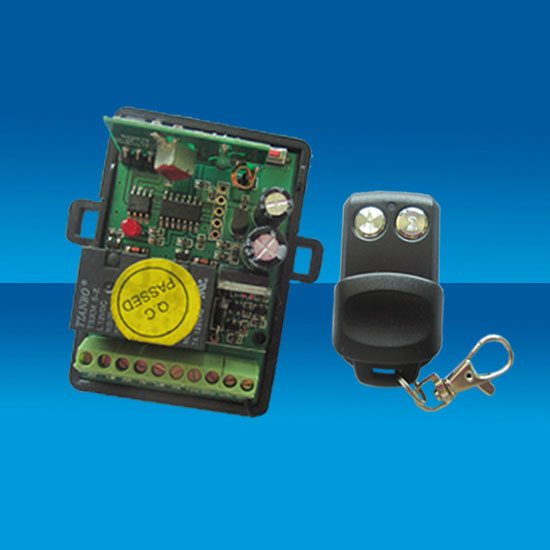

433.92MHz Transmitter And Receiver(JJ-JS-084)

WORKING VOLTAGE: 6-24V
FREQUENCY: 433.92MHz

LED:
1. When electrified, LED lights 1 second, it's ready to work.
2. LEARNING CODE: Press P1 (1 second at least), LED lights (1 second) and goes off( 1 second) and lights again, now press any button of the remote, if the code is learnt LED will go off. Then release the button of the remote. If the remote cannot read the signal, LED will light for 10 seconds and finish learning status.

3. PROGRAMMING METHOD:
A. Press P1 one time, LED flashes one time and the first channel (monostable) activates.
B. Press P1 twice, LED flashes twice and the second channel (monostable) activates.
C. Press P1 three times, LED flashes three times and the first channel (bistable) activates.
D. Press P1 four times, LED flashes four times and the second channel (bistable) activates.
Each channel can learn 140 codes at least.
It supports all the codes including fixed code and rolling code.

4. DELETING FUNCTION:
A. Delete one code: Press P2 for about 1 second and release, LED lights, press the button that you want to delete the code. Then it's ok.
B. Delete all the codes: Long press P2 for 8 seconds, LED lights, release your hand and LED goes off, now all the codes are deleted.

5. NOTICE:

A. Since the data of rolling code is relatively bigger, it'll take you a little more time to operate remote with rolling code than that with fixed code.
B. If you learning same code for more than one time, only the last code is memorized.

Product name	Receiver
Model No.	JJ-JS-084
Working voltage	12V-24VDC
Frequency	433.92MHz (315MHz optional)
Channel	2-CH(1CH optional)
Receiver mode	superregenerative (Superheterodyne optional)
Encode	fixed code and rolling code
Static current	5mA±2
Working current	50-200mA
Range	60-150m in unobstructed area
Memory capacity	140 remotes controls
Wire connect	Terminal block (wire solder optional)

Control mode	Continuous output (bistable) or momentary output(monostable).

Receive sensitivity	-108dBm (max)
Dimensions(L x W x T)	604030mm

Net weight	54g
Certification	ISO9001:2000,SGS,D&B,BUREAU, CE, RoHS and Intertek
Output mode	Dry contact (+12V or -12V optional)
