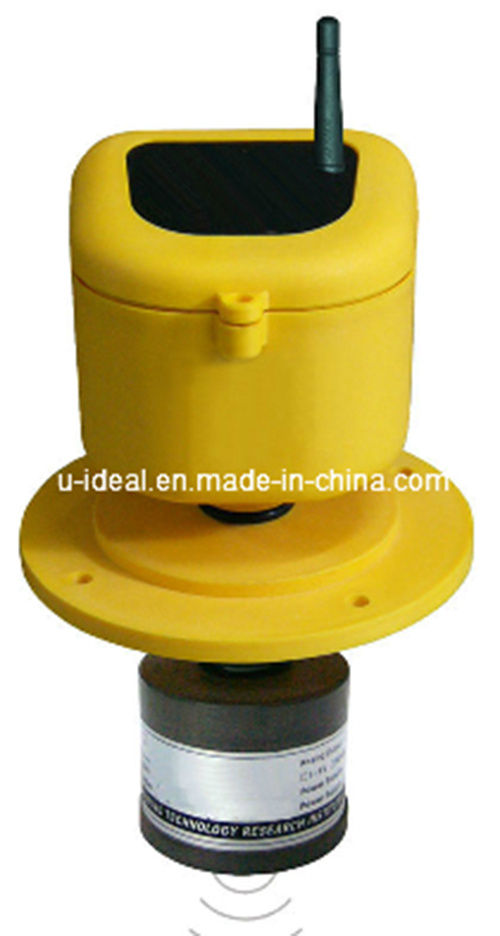

Wireless Ultrasonic Level Meter-Ultrasonic Fuel Level Meter with GPS/GPRS Tracker
| Price: |
US $ 150/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
IPU57W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Ultrasonic Wave |
| Structure: |
All in One |
| Range: |
0~60m |
| Principle: |
Vibration Sensor |
| Ouput: |
4~20mA |
Product Description
Ultrasonic fuel-level meter
1) With GPS/GPRS Tracker
2) IP67, high accuracy
3) Protect fuel/oil from theft
4) OEM/ODM well
Ultrasonic fuel tank level Meter with GPS/GSM
We customized many kinds of ultrasonic products according customer's requirements.
1. Description
Ultrasonic fuel-level meter is used for fuel level measurement in vehicle fuel tanks in order to monitor the fuel consumption. The measurements are realized by the ultrasonic radiator installed directly on the external bottom part of the fuel tank and data processing box. The ultrasonic fuel-level meter can measure levels of diesel and petrol or other liquid materials depending on software settings.
Power supply voltage
|
9...36V
|
Power protection up to
|
80V
|
Measurement range
|
18 –2500mm
|
Max load current of outputs
|
10 mA
|
Max current consumption
|
80 mA,100mA for 50-2500mm range
|
Analog interface(0 ^1023)
|
0,3....9,7 V
|
Frequency output interface (U=10V)
|
500-1500 Hz
|
Quantity of outputs EIA 485
|
1
|
Quantity of outputs EIA 485/2321
|
1
|
Accuracy of fuel level measurement in static
|
not more 0.5 %
|
Accuracy of fuel level measurement in dynamic
|
not more 3.0 %
|
Accuracy of fuel level measurement
|
not more 3.0 %
|
Degree of the radiator protection
|
IP67
|
Working temperature
|
-40...+80 °C
|
Nonvolatile memory
|
2 MB(30 days if record once in 30 sec.)
|
Galvanic isolation of the power supply
|
yes
|
Galvanic isolation of the outputs
|
yes
|
Patent
|
yes
|
Guarantee
|
1 year
|
