Wireless Universal DC12V 8686MHz RF Remote Control Kl3000-2

Name: Wireless Universal DC12V 8686MHz RF Remote Control Kl3000-2
Brand: all-electronics-online.com
SKU: 825877645
Availability: InStock
Rating: 4.8 (136 reviews)

Price:	US $ 9-15/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL3000-2
Encoding Chip:	Sc2260,PT2240,EV1527,Hcs301
Operating Voltage:	DC 12V
Operating Current:	70mA
Operating Frequency:	315MHz / 433.92MHz / Customized
Transmitting Distance:	1000-1500m
Modulation Way:	Ask/Ook
Encoding Type:	Fixed, Learning, Rolling Code
Dimension:	1274120mm
Weight:	100g
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

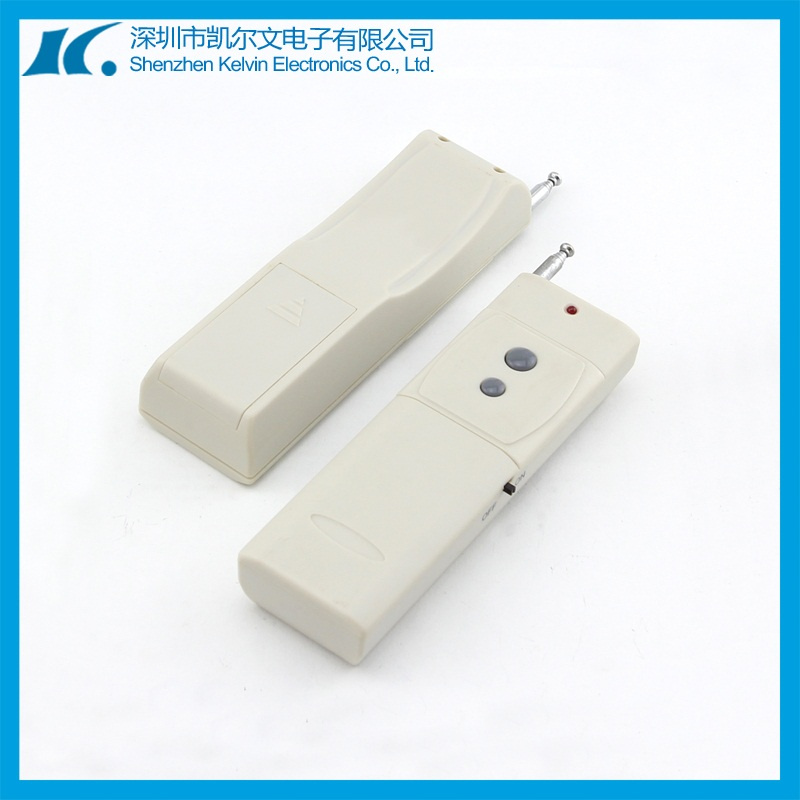

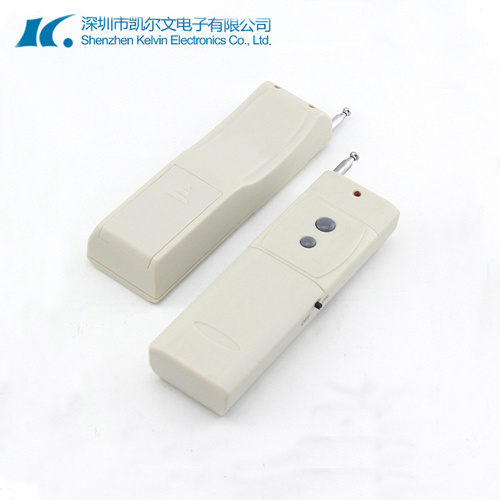

Wireless universal DC12V 8686mhz rf remote control KL3000-2

Parameter:
Working Voltage:DC9V
Working Current:70mA
Frequency:433.92MHZ
Modulation:ASK(ASK)
Temperature:-20-55ºC
Dimension:49*31*8mm
Weight : 9.6g
Encode type: Learning code

Working Voltage	DC9V
Working Current	70mA
Modulation	ASK(ASK)
Frequency	433.92MHZ
Temperature	-20-55ºC
Dimension	49318mm
Encode type	Learning code
Weight	9.6g

Operation Method:
1. Match code:
Hold learning button and learning indicator light blinks, then press any buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 80 remote controls can be matched.
2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.

3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latched
No Jumper on S1 &S2→ Momentary

Working Mode:
1. Non-lock/Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Self-lock/Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Inter lock/Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.

Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.

Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established

Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB

Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Prospects for development: Bright future is coming
