| Prod Model: |
DH-20-C02PE-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connect Pin: |
2pin |
| Cable Specification: |
2.5-4mm2/ 14-12AWG |
| Diameter Range: |
Od8-12mm |
| Rated Current: |
20A |
| Operating Voltage: |
500V |
| Gender: |
Male |
| Application: |
UHF |
Product Description

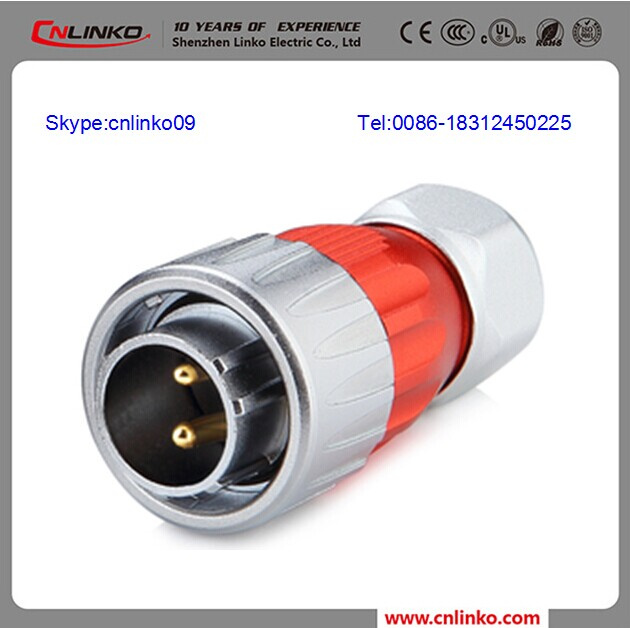

With All Zinc Alloy Shell quick connect wiring connectors
DH-20 series electrical connectors IP65/IP67
1. Three positioning, designing as wave spring knob, the outer ring card point locking snap engaged with the socket, making the connection operation for the plug and socket be more simple and convenient, uniform intensity engaging, and keeping the current and signal transmission more stable.
2. Using wave spring structure, so that elastic wave spring stranded automatically when connect the plug and socket.
3. Copper needle retainer designing, so that copper welding operations and install socket were separated, thus solve up limited operating environments from install to then welding.
4. Using outer alloy ring, keeping the plug and socket more stable in the closed state, making the power supply or signal transmission more stable and comparable while connection.
5. Using tail jaws design, to tighten the wire more effective, twisted more effective too, improving the product waterproof rating and tensile strength requirements, and prevent the nut back effectively.
6. Waterproof clip coil designing, so that the products have better waterproof rating when closed.
7. Waterproof IP65/IP67 while connection.
DH-20-C02PE-01-001 |
| Specifications: | |
| Connecting mode: | Screw connect |
| Protection level: | IP65/IP67 |
| Cable specification: | 2.5mm2 ~ 4mm2 /14~12AWG |
| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ2.7×2 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| | |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packing and shipping:
1: 10pcs/small box, 100pcs/ middle box, 240pcs/master box
2: Lead time: 3-5 working days if have in stock, 7-10working days below 500sets
3: Shipping way: by express, by air or by sea
Customer service:
1. Supply OEM and ODM service
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available
5. supply the best service to you with the contact details below:
TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312450225 Eunice Tan
