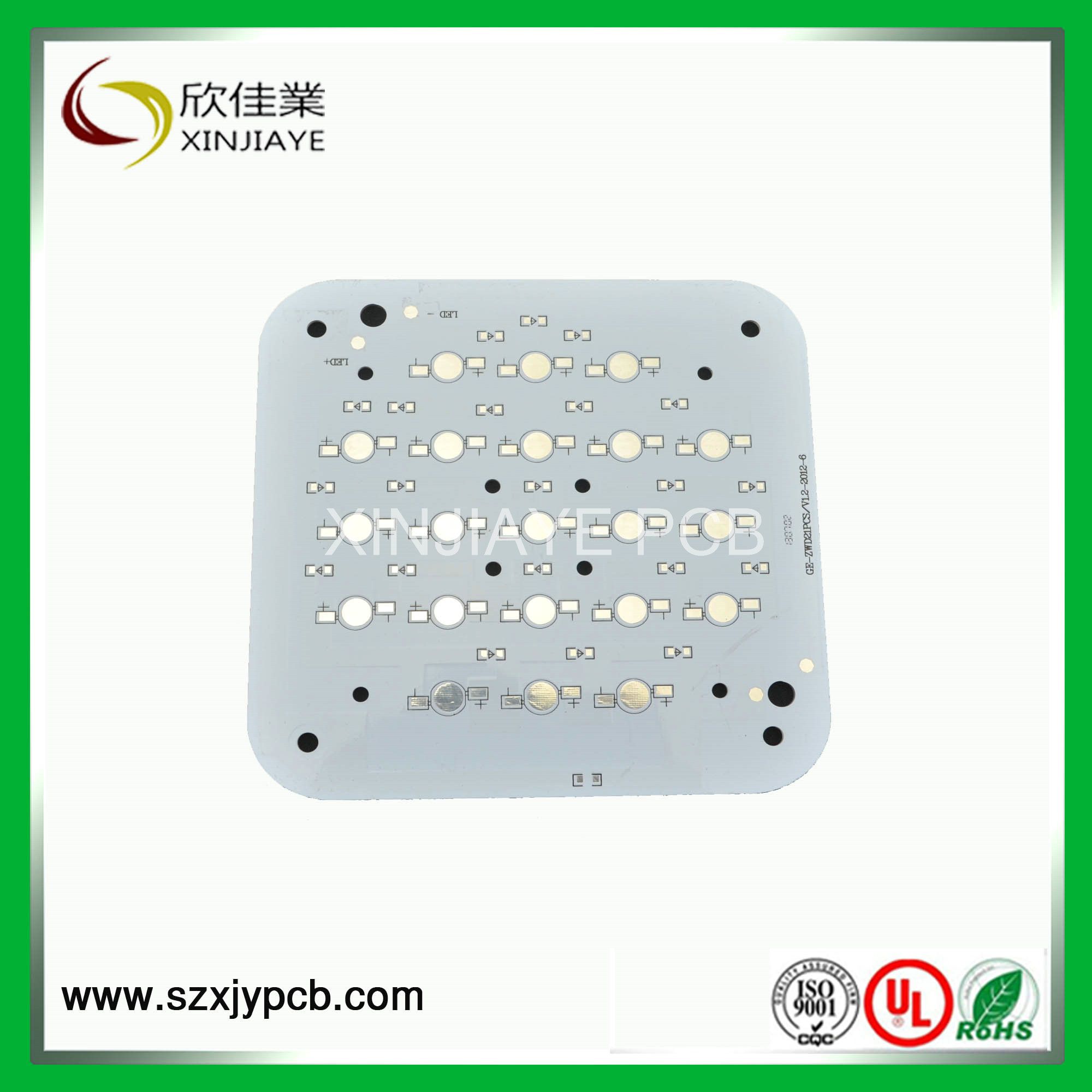

with Quick Lead Time LED PCB
| Price: |
US $ 30/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
XJY-PCB 146 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Solder Mask: |
White |
| Silk Screen: |
Green,White |
| Surfaceing Finish: |
Enig ,HASL ,OSP |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Min Hole Size: |
0.2mm |
| Min Line Spacing: |
0.1mm |
| Min Line Width: |
0.1mm |
| Certificate: |
UL,RoHS,SGS,ISO 9001,Ect |
| Package: |
Vacuum |
| Structure: |
Single-Sided Rigid PCB |
| Production Process: |
Subtractive Process |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Application: |
LED |
Product Description
With quick lead time LED PCBWelcome to our website! !
XinJiaye is able to offer one stop 1 to 24 Layer PCB fabrication, PCB manufacturing, PCB Assembly, PCBA Test, Reverse engineering service; FPC fabrication, Aluminium base fabrication,
High Frequency Board fabrica-tion. OEM/ ODM Single Sided Aluminum Base of PCB BoardQuick Details:
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | XJY | Model Number: | xjy-pcb 146 |
| Base Material: | aluminum based | Copper Thickness: | 1OZ | Board Thickness: | 1.6MM |
| Min. Hole Size: | 0.2MM | Min. Line Width: | 0.1MM | Min. Line Spacing: | 0.1MM |
| Surface Finishing: | HASL | product name: | PCB control board for LED bulb | pcb size: | customized |
| silk screen: | green black white blue | product: | manufacturer factory | shipping: | DHL UPS EMS |
| solder mask: | ENIG .HASL ,osp | origin: | shenzhen, China (Mainland) | MOQ: | 1 |
| pcb board thickness: | 1.6mm |
|
|
Our PCB board manufacture
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-freeDelivery Time for PCB board
1) PCB production time: Sample: 2-4 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days
Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)

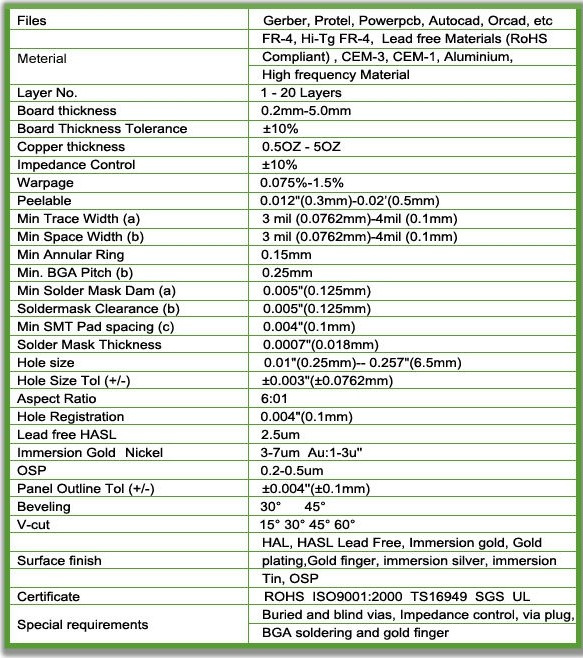

Our capability:
Detailed Terms for PCB Manufacturing
---Technical requirement for pcb assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT(In Circuit Test), FCT(Functional Circuit Test) technology.
* PCB Assembly With UL, CE, FCC, Rohs Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Quotation Requirement and Time:
1) Following specifications are needed for quotation:
A) Base material:
B) Board thickness:
C) Copper thickness:
D) Surface treatment:
E) color of solder mask and silkscreen:
F) Quantity
2) Qutoation within 2 hour after we get the gerber file or pcb file with complete specifications
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.
Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components, PCB design, PCB copy, PCB drawing, PCB assembly and so on.
Our Superiority
1. High efficiency&Experience
We can provide one stop service. We have grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development department and sophisticated quality control system.
***************************************
2. Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
***************************************
3. Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether it's a simple custom or not. Product or a complex turnkey production run, We will adhere to the highest quality standards.
***************************************
4. Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.Any need,please contact me!
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
