| Prod Model: |
GWCT008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Class: |
Class 0.1, 0.2 |
| Operating Temperature:-25 To +55 Degree: |
Retardant Rating 94-V0 |
| Frequency:50 To 400 Hz: |
Accuracy Class:as Defined in IEC 60044-1 |
| Color: |
Blue, Black, Yellow, White |
| Applications: |
Precision Watt-Hour Meter |
| Use For: |
Electric Energy Measurement |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

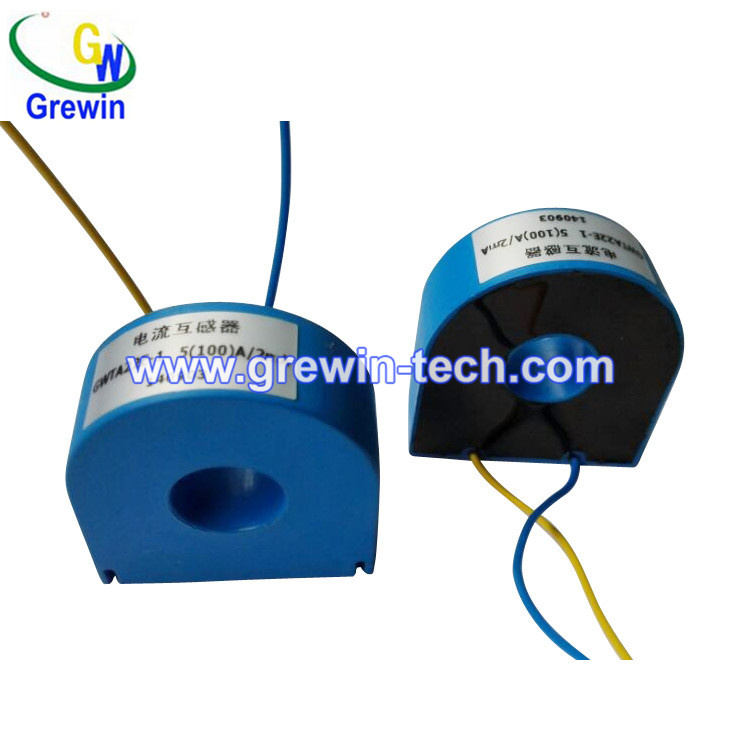

The grewin TAXX11 series Miniature current transformers are designed for applications where AC current signals must be transformed accurately into a ower AC current or voltage signal app-ropriate for micro-processor based circuits.
Miniature Current Transformers \ For Electronic Watthour Meter \ Without DC ImmunityFeatures:
Low cost
More than 30 standard sizes
Small size
High accuracy, wide linear range, good
Consistency
Terminal: PCB Mounted or Lead
Toroidal Nanocrystalline and Nickel Alloy cores available
Applications:
For applications that required high precision
And minimal phase angle error watt-hour
Metre ect. Electric energy measurement
Device
Specifications:
Exterior Material: PBT Resin UL flame
Retardant rating 94-V0
Interior Insulation: Epoxy Encapsulated
Isolation Current: 2500 Vrms for 1 minute
Dielectric Resistance: 1000 M Ohms @ 500 Vdc
Surge Withstand: 5000V(1.2/50μ S standard
Shock wave)
Operating Temperature: -25 to +55 Degree, -40 to
+85 degree optional
Frequency: 50 to 400 Hz
Accuracy Class: As defined in IEC 60044-1 Part 1 Current Transformers Class 0.1, 0.2
RoHS Compliant
| GREWIN'S For Electronic Watthour Meter \ Without DC Immunity Typical Products : |
| Photograph | Part
Number | Rated
(max)
input
current
(A) | Ratio | Frequency
(Hz) | Secondary
Burden
Resistance
(Ohms) | Accuracy
Class | Outline
Dimensions
(mm) | Output
Mold | pdf |
| | TGW2011 | 5(20)
5(50)
10(40)
15(60)
| 1000:1
1500:1
2000:1
| 50-400 | ≤40
| 0.1
0.2
| ID-L-W-H
8.0
26.0-13.5-28.6
| lead | |
| | TGW21A11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
2000:1
2500:1
| 50-400 | ≤40
| 0.1
0.2
| ID-L-W-H
6.7
23.5-11.5-25.0
|
lead/
pin
|
| | TGW21B11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
2000:1
2500:1
| 50-400 | ≤40
| 0.1
0.2
| ID-L-W-H
6.7
23.5-11.5-25.0
|
| | TGW22B11 | 5(20)
5(50)
10(40)
20(80)
| 1000:1
2000:1
2500:1
| 50-400 | ≤50
| 0.1
0.2
| ID-L-W-H
8.7
26.0-17.5-27.5
|
| | TGW22D11 | 5(50)
10(40)
10(60)
20(80)
| 1000:1
2000:1
2500:1
| 50-400 | ≤50
| 0.1
0.2
| ID-L-W-H
8.0
19.5-18.5-30.0
|
| | TGW22E11 | 5(50)
10(60)
10(100)
20(120)
| 1000:1
2000:1
2500:1
| 50-400 | ≤50
| 0.1
0.2
| ID-L-W-H
12.8
36.7-14.2-38.5
|
| | TGW2411 | 5(50)
10(40)
20(80)
20(100)
| 1000:1
2000:1
2500:1
| 50-400 | ≤50
| 0.1
0.2
| ID-L-W-H
9.0
41.0-18.5-30.0
|
| | TGW24B11 | 5(20)
5(50)
10(40)
15(60)
| 1000:1
1500:1
2000:1
| 50-400 | ≤40
| 0.1
0.2
| ID-L-W-H
6.0
41.0-15.0-28.0
| lead |
| | TGW3611 |
10(60)
15(60)
10(100)
20(80)
| 500:1
1000:1
2000:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
32.0-30.0-30.0
|
| | TGW36A11 | 1.5(6) | 150:1
250:1
300:1
1000:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
32.0-30.0-34.0
|
| | TGW36B11 | 1.5(6) | 150:1
250:1
300:1
1000:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
28.0-30.0-32.0
|
| | TGW20DA11 | 5(20)
5(50)
10(40)
15(60)
| 1000:1
1500:1
2000:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
38.0-15.0-29.0
|
| | TGW20EA11 | 5(20)
5(50)
10(40)
15(60)
| 1000:1
1500:1
2000:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
45.0-28.0-29.0
|
| | TGW3711 | 1.5(6) | 150:1
250:1
300:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
85.0-31.0-33.0
| lead | |
| | TGW3811 | 1.5(6) | 150:1
250:1
300:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
98.0-23.0-33.0
|
| | TGW38C11 | 1.5(6) | 150:1
250:1
300:1
| 50-400 | ≤40
| 0.1
0.2
| L-W-H
96.0-23.0-28.0
|
Contact info :
Tianjin Grewin Technology Co., Ltd
Contact:Victor Dong
T:86-22-84943756
F:86-22-85909471
Website: http://www.grewin-tech.com/

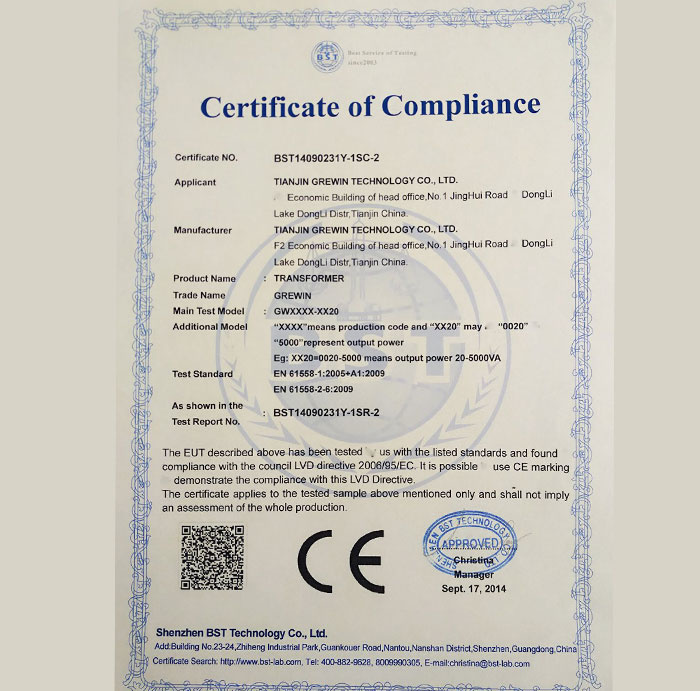

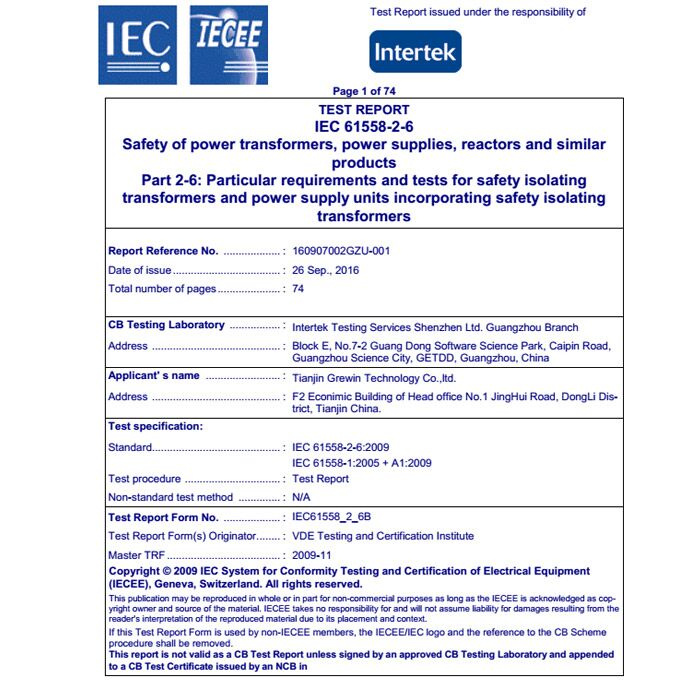

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
