Wjk 8mm AC ABS Unshielded Square Inductive Proximity Switch Sensor 56X36X26

Name: Wjk 8mm AC ABS Unshielded Square Inductive Proximity Switch Sensor 56X36X26
Brand: all-electronics-online.com
SKU: 840298115
Availability: InStock
Rating: 4.7 (40 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJK
Standard:	Standard
Certification:	CE
Type:	Proximity Sensor
Principle:	Inductive
Wires:	2-Wires, 3-Wires,4-Wires

Product Description

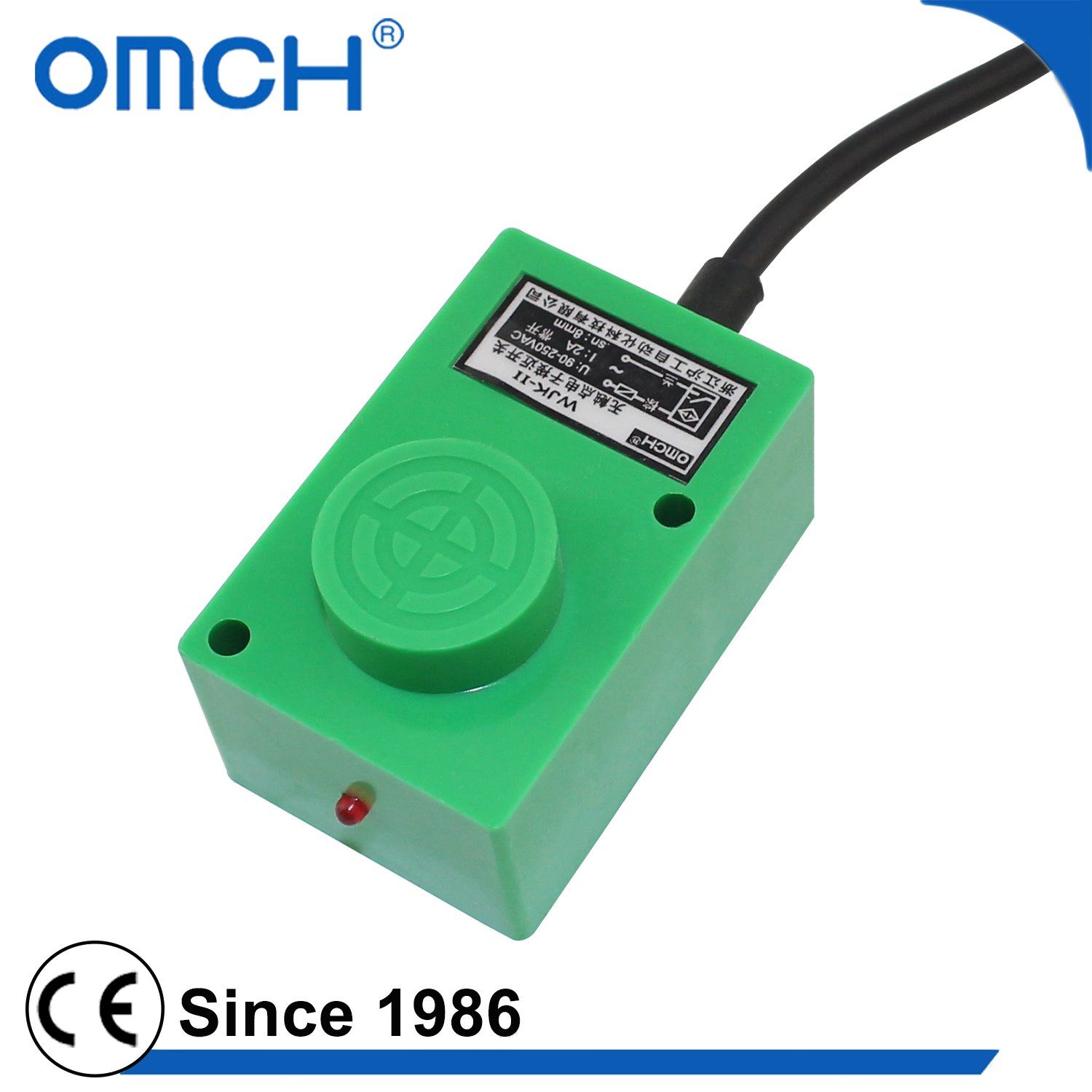

WJK 8mm AC ABS Unshielded Square Inductive Proximity Switch Sensor 56x36x26

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature
We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Economic and simple operation
Long service life, high reliability and strong resistance property to environment
Red LED indicates that it's available to derect the sensor operating state
IP65 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

Dimension				56×36×26
Mounting way				Non-screen shield type
TYPE	DC TYPE	NPN	NO
			NC
			NO+NC
	AC TYPE	Two-wire	NO	WJK-II (Green)
			NC	WJK-II 2 (Green)
Detection distance				8mm±10%
Set distance				0~7mm
Standard detection object				IRON 18×18×1mm
Response frequency				DC:0.5kHz AC:25Hz
