Wood Working Machinery Used VFD Variable Frequency Inverter

Prod Model:	SY8000 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Communication Protocal:	RS485 Modbus
Carrier Frequency:	1.0~15.0kHz
Output Frequency:	0-600 Hz
Weight:	1.73kgs-259kgs
IP Grade:	20
Input Voltage:	220V/380V (+/-15%)
Output Current:	2.5-690A
Output Power:	0.75kw - 400kw
Size:	210*110*170 -1750*685*590
Output Voltage:	0-220V/0-380V
Application:	Single-phase Transducer
Output Type:	Triple
Switch Mode:	PWM Control
Main Circuit Type:	Current
Principle Of Work:	V/F&Vector Control
Brand:	Sanyu

Product Description

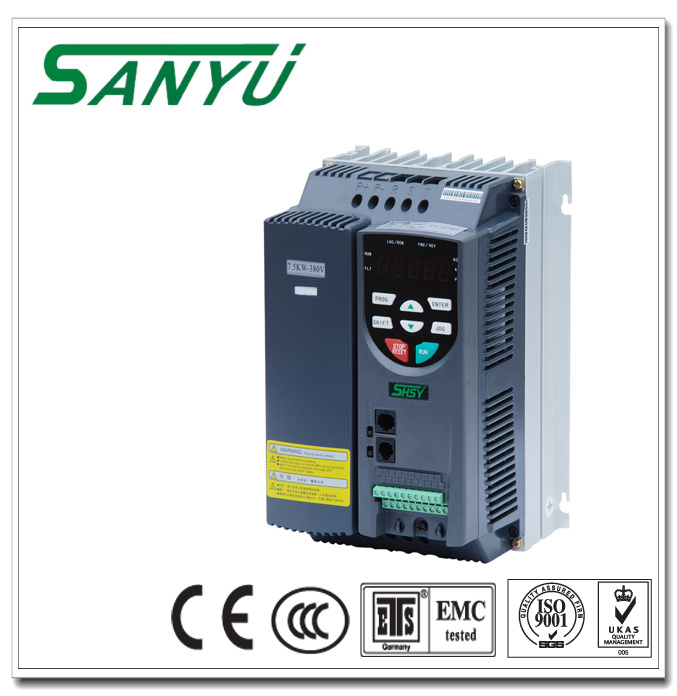

OLYMPIC STAR PRODUCT:1PH/3PH-3PH wood working machinery used VFD variable frequency inverter (SY8000 SERIES 0.75KW-400KW AC DRIVE/VFD)

1. Various control modes and widely used
2. Automatically recognize the motor parameters
3. RS-485 communication inferface, standards, MODBUS protocol
4. PWM flexible energy braking, can quickly halt machine
5. The torque output will be 150% when the frequency is 0.5Hz.
5. More powerful when at low rate, More stable when at high rate.
6. Zero speed torque output
7. Super-silent running
8. Quick menu design
9. Simple PLC, inbuilt PID adjustment
10. Compact and legerity structure
11. Mate the customer design
12. Trip suppression & Stable running
13. High stability, strong anti-interference ability
14.25 protection functions

Functions:

1. Dual-DSP + MCU + IPM high performance, high reliability
2. Automatic identification of motor parameters, automatic temperature compansation
3. Start by excitation, speed up the rapid response to vector control
4. Speed control and torque control switching online
5. Zero-servo lock function
6. The frequency of carrier wave can be up to 16k, carry out a comprehensive silent running
7. Standard built-in RS485 port, matching TDS-PA01 adapter to support the fieldbus.
8. Built-in PG card, built-in brake unit belows 22KW LCD/LED optional keyboard.
Support for uploading and downloading parameters...

Product Application:

Widely used in:
1. Metallurgy
2. Chemical
3. Petroleum
4. Textile
5. Electric power
6. Building materials
7. Coal
8. Plastics
9. Printing and Dyeing
10. Cable
11. Washing
12. Water supply
13. Heating.

Product Specification:

Item		description
input	Rated voltage, frequency	Single phase, 220V, 50Hz/60Hz; 3 phase, 380V, 50Hz/60Hz
	Allowed fluctuation	Continuous voltage fluctuation: within± 10%, instant voltage fluctuation: within -15%10%; voltage imbalance: < 3%; frequency fluctuation: within 5%.
output	Voltage	Single phase, 220V & 3 phase, 380V
	Output frequency	0~600Hz.
	Overload capability	150% rated current, 1 minutes; 180% rated current, 1 seconds
control trait	Command input mode	By LCD keypad, by terminals, by PC through serial communication port.
	Control mode	Open loop vector control, V/F control.
	Speed setting method	By keypad, by analog, by PC through serial communication port
	Speed setting precision	Digital command± 0.01%(-10 +40) analog command± 0.1%(25° C± 10)
	Speed setting resolution	Digital command: 0.01Hz; analog command: 0.1% of maximum frequency
	Speed control accuracy	Open loop vector control: ± 0.5%; (25° C± 10)
	Speed regulation range	Open loop vector control: 1: 100
	Torque control response	Open loop vector control: < 200ms.
	Start torque	Open loop vector control: 150% of rated torque at 0.5Hz.
	Torque control accuracy	± 5%
	Set reference voltage supply output	1 port, +10V, 5mA
	Control voltage supply output	24V, 100mA
	Analogy input	2 terninal, No. 4 terminal is use for voltage, No. 5 is used for voltage and current input
	Analog meter output	1 terminal, 0/4~20mA or 0~10V available for it
	DO frequency signal output	1 port, high-frequency signal output(programmable)
	Collector open-loop output	One terminal
	Programmable relay output	contactor capacity: 250V AC/3A or 30V DC/1A
	Serial communication port	RS-485 connector RS485+, RS485-
	4 bits LED display	setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code.
	Five indication lamp	Parameter unit, RUN/STOP status, special status, charging status.
Protection function	Protection function	Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stallout, load short circuit, phase fault.
	Protection degree	IP21
	Cooling mode	Forced air cooling
envirenment	Ambient termearture	-10° C, +40° C
	Termperature	2090% RH(no condensation)
	Storage termperature	-20° C, + 60° C
	Application area	indoor(no corrosive odor, dust)
	Installation area	Altitude is not more than 1000meter, no dust, no corrosive oder, no direct sunlight.
	Vibration	less than5.9m/ S 2
