| Prod Model: |
mini GPS TK102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Application: |
Criminals Tracking, Protect Child /The Old |
| Frequency Band: |
850/900/1800/1900MHz |
| Main Features: |
Min, Magnetic, Waterproof, Storage Data, Easy Hide |
| Work Mode: |
SMS /GPRS |
| Warranty Time: |
1 Year |
| OEM Or Not: |
Yes |
| Tracking Solution: |
SMS, GPRS Web Server, Android Ios APP Tracking |
| Shipment: |
by DHL, UPS, EMS |
| GPS Module: |
Ns1315 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Screen Size: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description

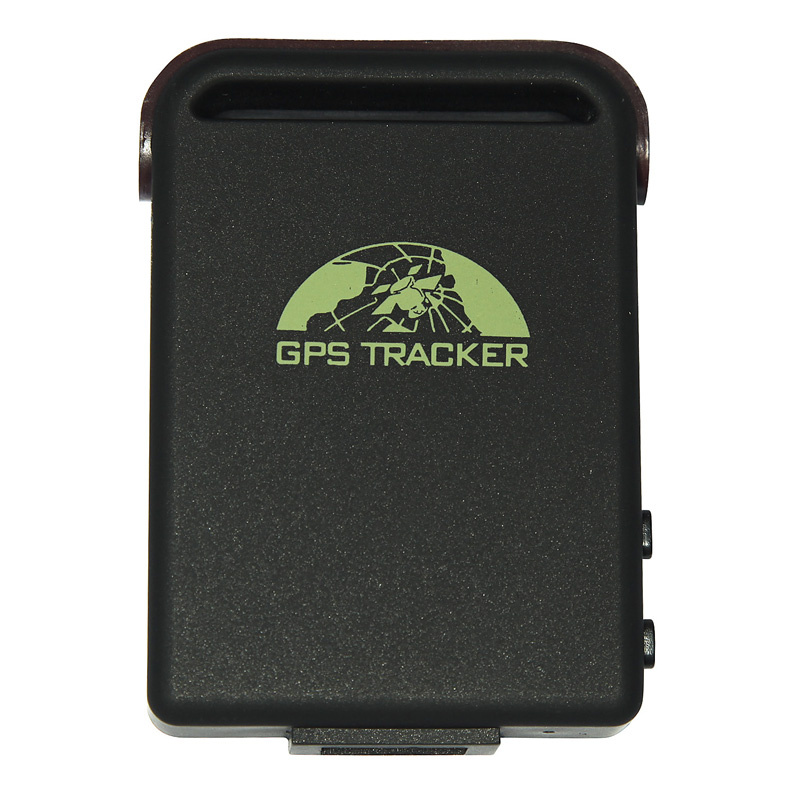

Real Time World Smallest GSM/GPRS/GPS Tracker with SOS panic button (Tk-102)
TK102
Waterproof
with Memory Slot
Inbuilt Shake Sensor
Stylish Design, with magnets inside
4 Bands, can be used all over the world
OEM Available (change functon, color, logo, gift box)
General
Based on GSM/GPRS and GPS network, you can locate and monitor any remote targets by SMS or GPRS.
Specification
1) Communication with both GSM, GPRS, GSM frequency 4-band 850/900/1800/1900
2) Powerful magnet and water proof bag, can be adsorbed in hidden places.
3) Track by your computer/PDA/cell phone/Google earth or our platform
4) Google map link in mobile phone SMS, can be opened by smart phone.
5) Memory slot for storage and upload when GSM/GPRS offline or under command
6) Real-time track, get longitude, latitude, speed and time, also can get real adress name by setting APN.
7) Position by both GPS and GSM
8) High sensitivity: Very quick to get GPS and reply to your call or SMS
9) Auto track, automatically get information with interval
10) Geo-fence: Send alert when out off preset fence.
11) Movement alert/over speed alert/low battery alert/SOS alarm, GPS off alert, outer power on/off alert (optional)
12) Monitor mode enable you hear the sound around the tracker.
13) State checking: Send back state of power, GPS/GSM/GPRS signal,
14) Sleep function, Standby 15 days (under SMS mode), with double 3.7V, 1000mA Li-batteries.
15) Inbuilt vibration sensor, send alert when the tracker is vibrated.
16) Small size and weight, unit size 64*46*17mm, NW. 50g
Application
1. Vehicle for rental or manage of outside equipment, etc.
2. Protect the elder, kid, employee and pet, etc.
3. Protect the businessmen.
4. Manage the outworker.
5. Covert Tracking.
Package Include
* Mini Global GPS Tracker
* Battery Charger
* Power Adaptor
* 2 x Batteries
* Battery Cover with Magnet
* Waterproof Plastic Holder Bag
* Software CD
* English Manual
Technical data
Dim. 64mm x 46mm x 17mm(1.8"*2.5"*0.65")
Weight 50g
Network GSM/GPRS
Band 850/900/1800/1900MHz
GPS chip SIRF3 chip
GPS sensitivity -159dBm
GPS accuracy 5m
| Brand | Specification |
|
|
| Time To First Fix | | Cold status 45s | | Warm status 35s | | Hot status 1s |
|
| Humidity | 5%--95% non-condensing |
| Temperature | | Operating Temperature | -20& deg; C to +55& deg; C | | Storage Temperature | -40& deg; C to +85& deg; C |
|
| Car charger | 12-24V input, 5V ouput |
| Wall charger | 110-220V input, 5V output |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Battery Life | About 80 hours |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
