| Prod Model: |
WP402A |
| Measuring Medium: |
Steam, Water, Oil, Air, Gas |
| Accuracy Grade: |
0.2%Fs, 0.5%Fs |
| Pressure Range: |
0-1kpa to 100MPa |
| Certification: |
Ce, ISO9001, RoHS |
Product Description

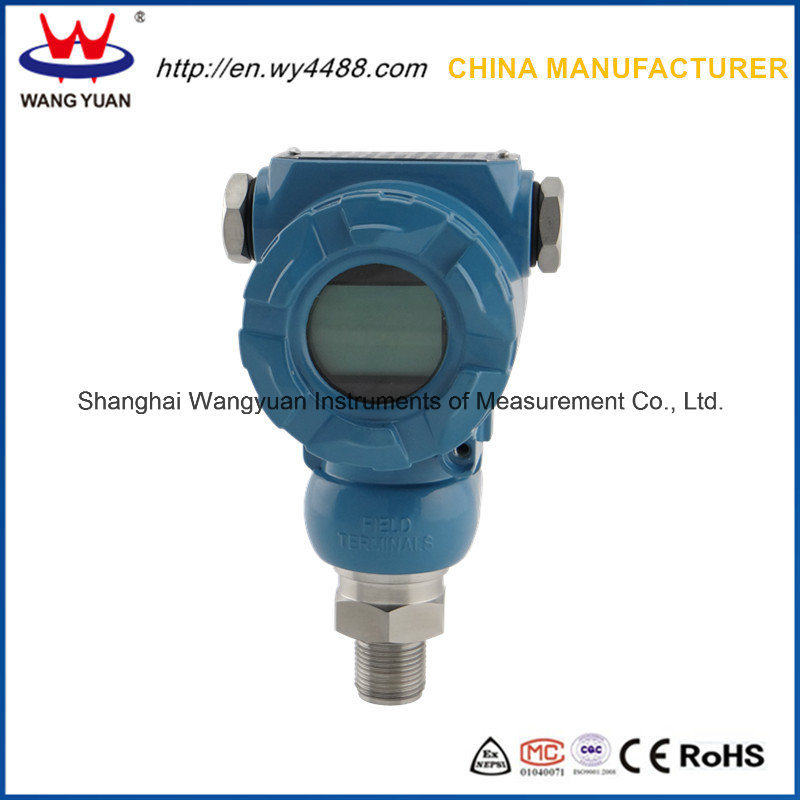

China High performance Smart Pressure Transmitter
Model: WP402A
This China High performance Smart Pressure Transmitter can be used to measure and control PRESSURE in:
- Petroleum and chemical industry,
- Electric power, water supply,
- Light industry, Metallurgy
- Military project, Aerospace
- Oil & Gas and other automatic control industries
Description:
1. WP402A China High performance Smart Pressure Transmitter adopt advanced imported sensor component, which is combined with the solid state integrated technology and isolate diaphragm technology.
2. The 4-20ma pressure transmitters are designed to work high performance under all-weather environments.
3. The temperature compensation resistance is made on admixture ceramic, which is the excellent technology of the smart pressure transmitters.
4. With strong anti-jamming performance, this 4-20ma pressure transmitter is suitable for long distance transmission.
5. WP402 smart pressure transmitter is widely used to exactitude measure and control for military project, scientific research, aerospace, petroleum & chemical, electric power, ocean, coal mine and other sever environment.
Features of China High performance Smart Pressure Transmitter:
* Imported sensor component
* Measure pressure of Corrosive medium
* World-class pressure transmitter technology
* Compact dimension design, strong
* Light weight, easy to install, maintenance-free
* Range can be adjusted in external, widely range of shift
* 100% Linear meter is configurable
* 3 1/2 LCD or LED digital indicator is configurable
* Explosion-proof type: Intrinsically safe comply with requirement of GB3836·4-83;
Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | WP402A China High performance Smart Pressure Transmitter |
Pressure range | 0 - 1kPa~400MPa |
Accuracy | 0.05%FS, 0.1%FS; 0.2%FS; 0.5 %FS |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N). |
Process connection | G1/2,M20*1.5, M27*2 Flush diaphragm, Customized |
Electrical connector | Terminal block, Cable |
Output signal | 4-20mA (1-5V); 4-20mA with HART protocol;0-10mA(0-5V); 0-20mA(0-10V) |
Power supply | 24V DC; 220V AC, 50Hz |
Compensation range | -20~85ºC |
Operation temperature | -40~85ºC |
Material | Shell: Aluminium alloy |
Wetted part: SUS304/ SUS316L/ Teflon |
Media | gas, air, liquids |
Indicator (local display ) | 3 1/2 LCD, 3 1/2 LED, 4 or 5 bits LCD indicator, 1-100% linear meter |
Maximum pressure | Measurement upper limit | Overload | Long term stability |
<50kPa | 2~5 times | <0.5%FS/year |
≥50kPa | 1.5~3 times | <0.2%FS/year |

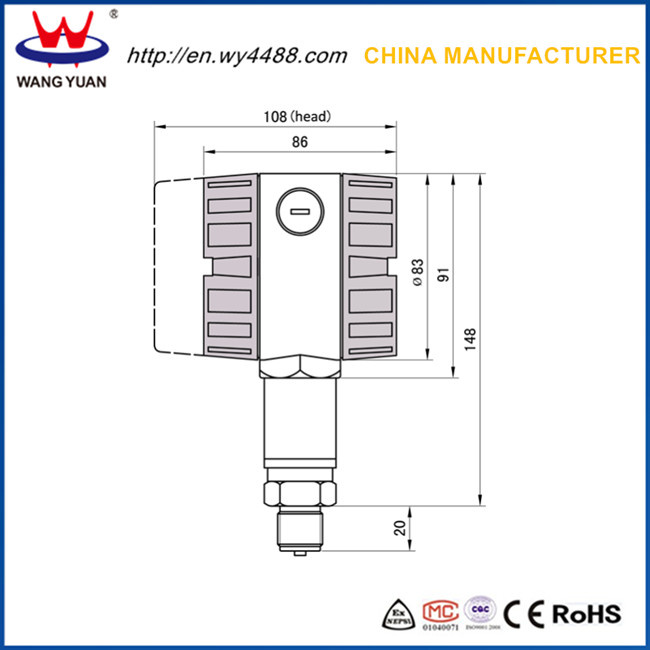

Dimensions of China High performance Smart Pressure Transmitter :
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
