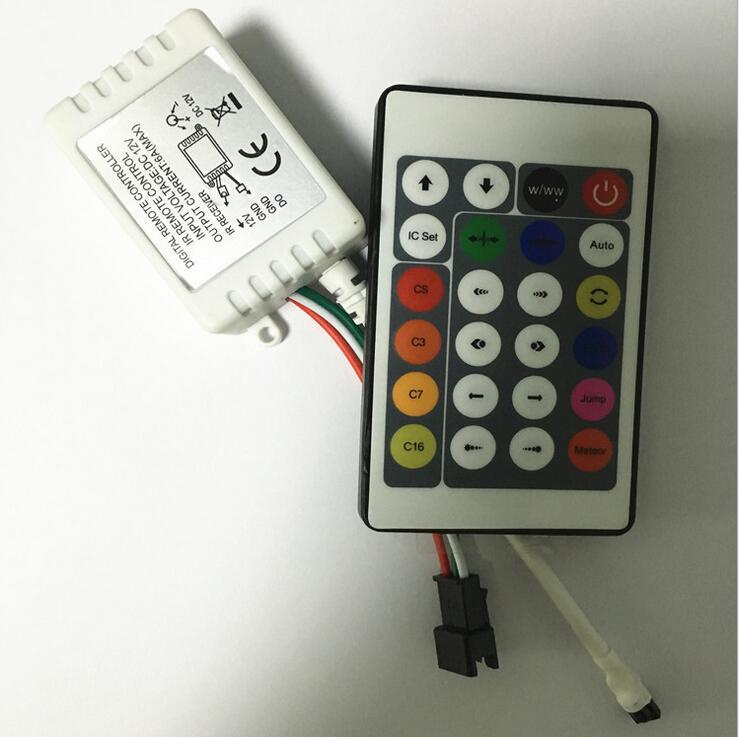

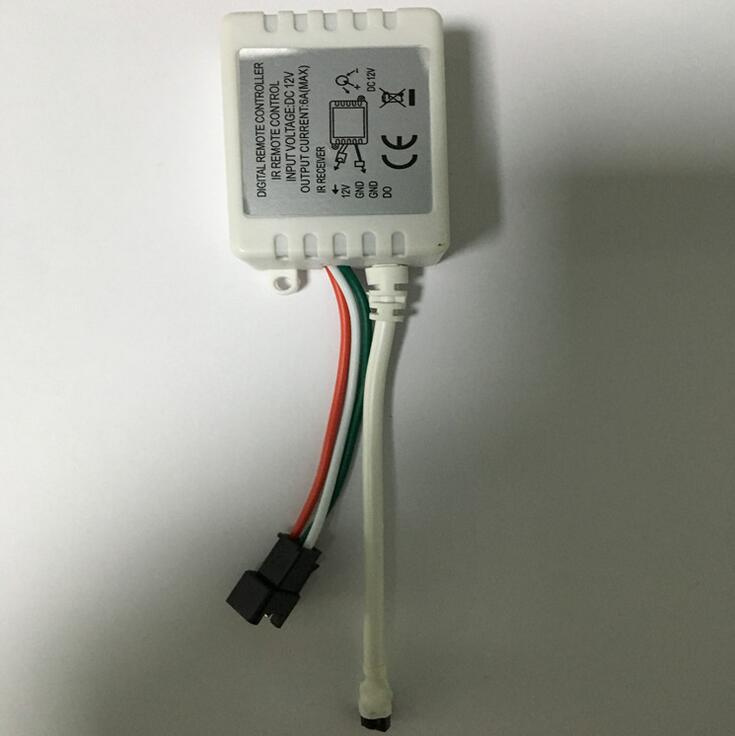

Ws2811IC LED Strip 12V 24V Controller

Prod Model:	2811MINI
Size:	L136*W48*H59 mm
Application:	Audio / Video Players
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

Infrared 24 key 2811 Symphony controller used to control the 2811 as the driver chip Symphony light; with power-down storage, IC points can be set up to up to 512 IC, the internal with more than 200 models for users to choose to use, You can let customers experience a variety of modes to bring the brilliant colors, etc., at the same time with low prices, easy wiring, easy to use and so on.
Technical Parameters:
Working temperature: -20 ºC ~ +60 ºC
Supply voltage: DC5V, 12V ~ 24V optional (specify the required voltage order)
Output: SPI signal
Static power consumption: <1W
Overall dimensions: L61 × W35 × H22 mm
Packing size: L90 × W60 × H40mm
Net weight: 50g
Gross Weight: 60g

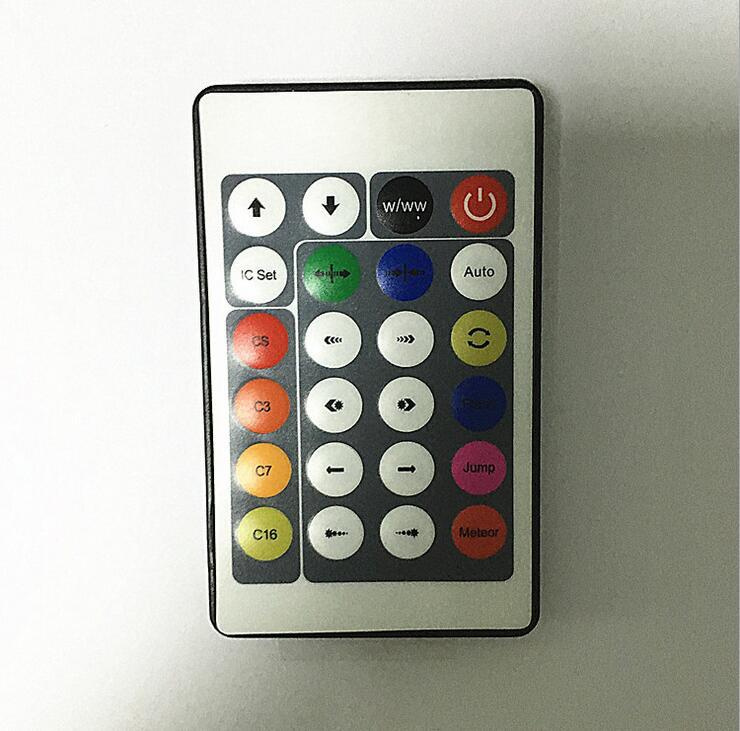

Remote control: infrared frequency 38K, receiving distance> 10m












Features
1, the product of the constant pressure controller, a standard product for the wide voltage 12-24V supply voltage can be used in this range of power supply;
2, the output for the three loops, each channel allows a maximum current of 2A, the band 12V30 lamp / light meter with 10 meters, 12V60 light / meter lights with 5 m;
3, 44-key infrared remote control mode, intuitive and easy to use remote control, remote control distance of up to 8 meters;
4, with power and memory function, each power will be preserved when the last power-down mode change;
5, 32 kinds of modes, including 20 kinds of static color, six kinds of dynamic changes and six kinds of custom modes; static color to brightness adjustment, grayscale 8, when the dynamic changes can speed adjustment speed stage is 32; each Custom buttons are marked with a red, green and blue by the arrow keys to adjust out six of their favorite colors, details see the following instructions;
6, when adjusting the brightness and speed, you can hold down the button and hold direct, rapid bursts of adjustment;
7, in order to achieve synchronization more lamps can be used with the company's RGB signal amplifier for power expansion, the specific operation see amplifier specifications;
