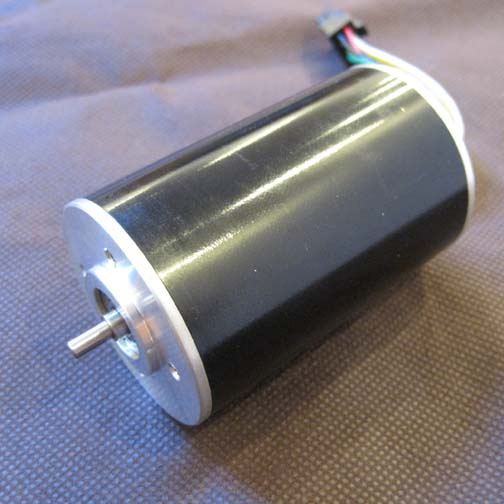

Ws4255 DC Brushless Motor

Name: Ws4255 DC Brushless Motor
Brand: all-electronics-online.com
SKU: 754754085
Availability: InStock
Rating: 4.7 (142 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	WS4255
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Type:	Brushless Motor
Rotational Speed:	13000rpm
Diameter:	42mm
Length:	55mm
Construction:	Permanent Magnet
Place Of Origin:	Hangzhou
Gearing Arrangement:	Planetary
Packaging Requirement:	Customized
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed
Application:	Power Tools
Excitation Mode:	Compound
Brand:	Lectstyle

Product Description

Specifications
DC brushless motor with high speed;
Voltage:12VDC / 24VDC;
Motor Speed:13000 rpm;
Weight:210g;
Size:D42mmxL55mm
Our Services
·          We offer customization dc brushless motors data and size;
·          NMB Ball bearings in our Brushess dc motors permit long life above 10,000 hours;
·          With Hall sensor inside dc motor brushless;
·          Motor shaft can be customization made;
·          Customization mounting flange for motor;
·          Planetary Gearbox  available for our motors;
·          Motor Voltage options :12VDC, 24VDC, 36VDC,48VDC;
·          Fast sample motor lead time;
·          Accept small orders;
Performance Data
Part Name:DC brushless motor with high speed ;
Part No:WS4255-24-70-8;
Voltage:24 Vdc;
Noload speed:5,000r/min;
Current at Noload speed:0.17A;
Rated speed:5,200;
Current at Rated speed:1.7A;
Torque at rated speed:55mN.M;
Rated output power:30W;
Efficiency at rated speed:73.6%
Max output power:42.3W;
Speed at Max output power:3300r/min;
Torque at Max output power:121mN.M;
Efficiency at rated speed:52.6%
Hall sensor electric Angle:120 degree;
Magnet poles pairs:4 pole pair;
Motor  Size:D42mmxL55mm;
Motor Weight:210g;

Voltage	Noload		Ratd Load
Voltage	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.M)
12VDC	7,000	0.38	5,200	2.9	45
24VDC	7,000	0.17	5,200	1.7	55
