Wsp/Wssp 13A RCD Protected Safety Socket
| Price: |
US $ 10-11/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WSP/WSSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Wsp/Wssp |
| Rated Voltage: |
230V |
| Maximum Operating Current: |
13A |
| Rated Trip Current: |
30mA |
| Typical Trip Time: |
40ms |
| Place Of Origin: |
Zhejiang, China |
| Grounding: |
Standard Grounding |
| Type: |
With Switch |
| Application: |
Hospital |
| IP Rating: |
IP65 |
| Rated Current: |
13A |
| Brand: |
Tengen |
Product Description
Specifications
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40mS

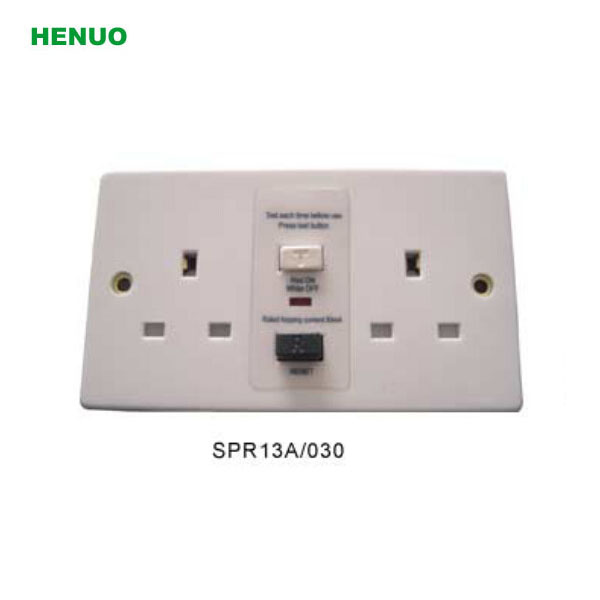

WSP/WSSP 13A RCD Protected Safety Socket
Application
An easily fitted Socket incorporating a Residual Current Device,give much greater safety in the use of electrical appliances against a rick of electrocution.
WSP plastic type can be fitted to a standard box with minimum depth of 25mm.
Designed to be usd in the fied position only and not mounted outdoors.Press green reset(R)button the indicator flag turns red and indicator light turns on.
Press white/yellow test(T)button the indicator flag turns black and indicator light turns off means the RCD has tripped successfully Designed and manufactured in accordance with the relevant clauses of BS7288,and used with BS1363 plugs fitted with a BS1362 fuse only.
Technical Data
Rated Voltage:AC220-240V/50Hz
Maximum operating current:13A
Rated trip current:30mA
Typical Trip time:40mS
RCD contact breaker:Double pole
Cable capacity:6mm
Wiring Instruction
Terminals are clearly marked L,N,E on the back of RCD which should be wired with the same way as an ordinary socket.
