Wx050 Single Turn Precision Wirewound Potentiometer

Wx050 Single Turn Precision Wirewound Potentiometer
Price: US $ 0.39-0.50/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WX050
Power Rating: 5W
Rated Volatge: 320V
Resistance Range: 50ohm-47kohm
Operating Force: 3.5-100
Resistance: Variable Resistor
Package Type: Carton
Brand: Kn

Product Description

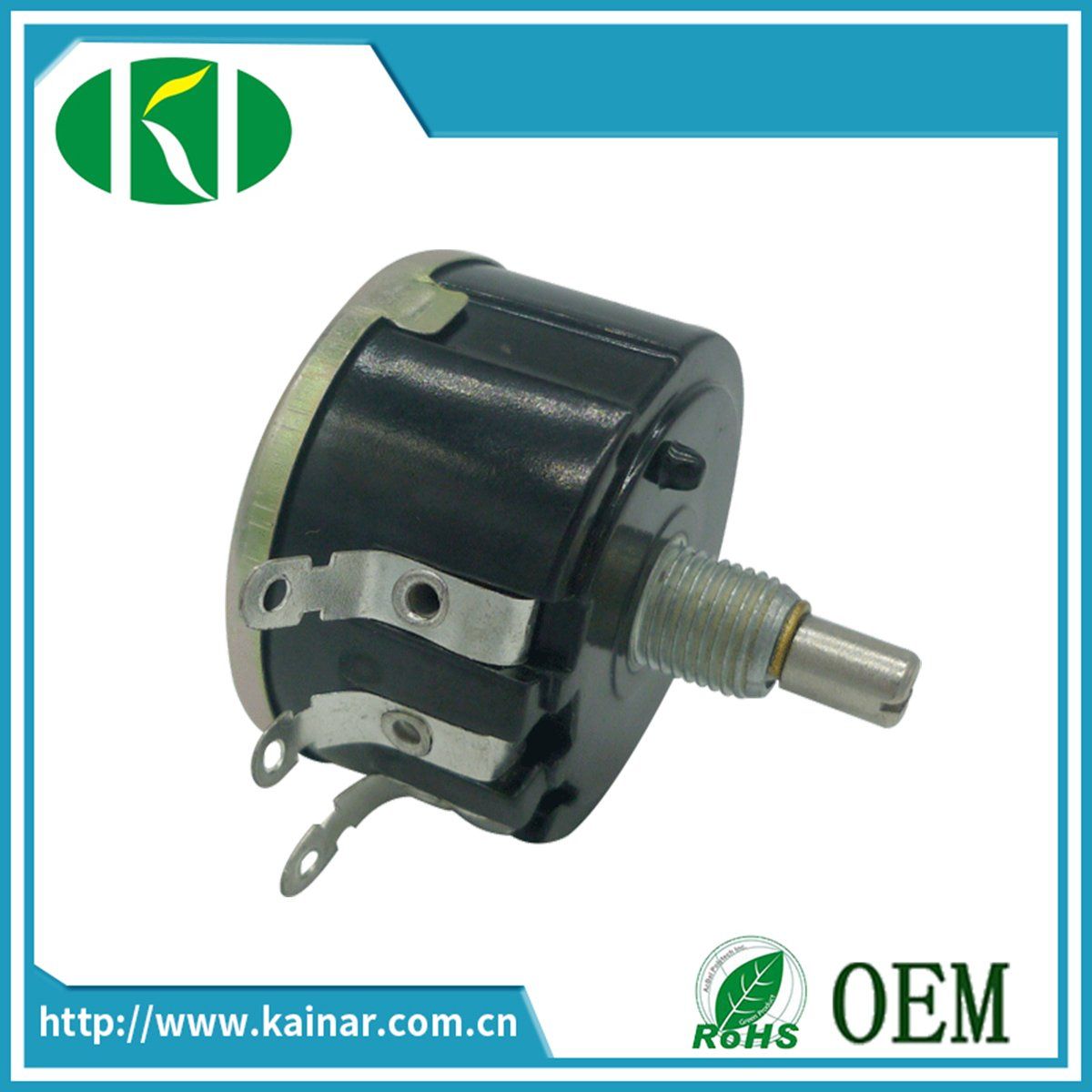

WX050 single-turn wire wound potentiometer

Specifications

Resistance range

50ohm-47kohm

Tolerance of resistance

±5% ±10%

Total rotation angle

300±10º

Operating force mN.m

3.5-100

Rated voltage

320V

Power Rating

5W

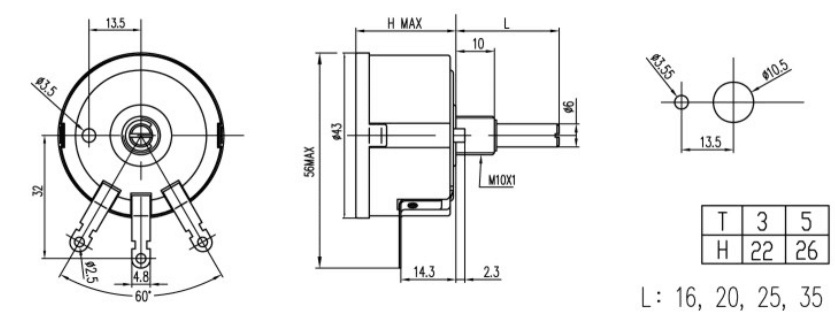

Outline Drawing

















Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
