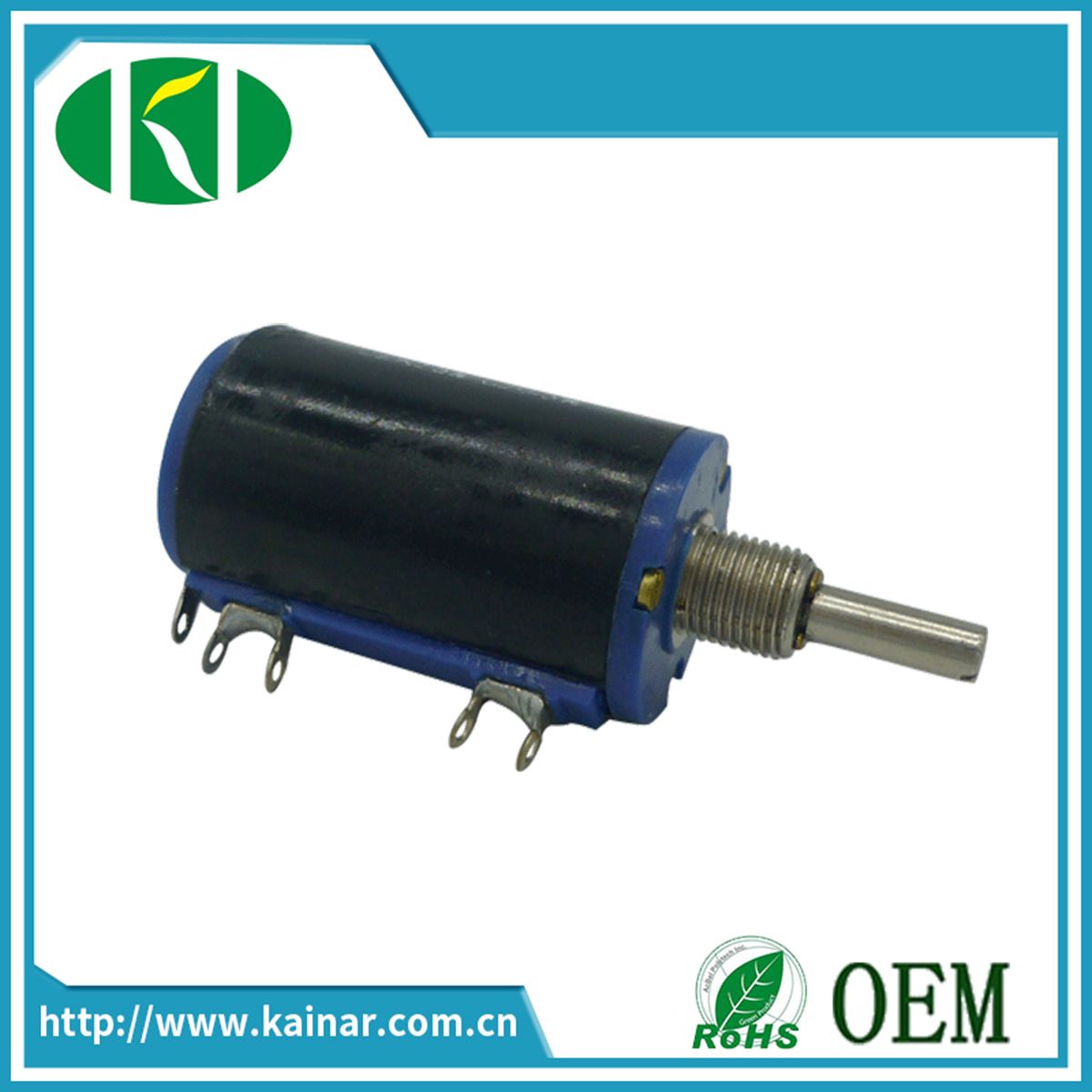

Wxd3-13 10 Turns Wire Wound Potentiometer

Name: Wxd3-13 10 Turns Wire Wound Potentiometer
Brand: all-electronics-online.com
SKU: 815304555
Availability: InStock
Rating: 5 (109 reviews)

Price:	US $ 0.65-0.75/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WXD3-13
Rated Volatge:	160V
Power Rating:	1W
Tolerance Of Resistance:	±5%
Brand:	Kainar

Product Description

WXD3-13 Precision Multiturn Wirewound Potentiometer

Electrical Characteristics	Range of nominal resistance	100Ω~100KΩ
	Resistance tolerance	±5%
	Terminal resistance	≤±0.2%R or 5Ω
	Peak Noise	≤100Ω
	Insulation resistance	≥ 200MΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Electrical angle	3600° ± 10 °
Environment Characteristics	Rated power	2W ( 300V 70 °C )
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (2W, 1000h)	ΔR≤± 3%R
	Mechanical endurance (1000 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± 3%R, Insulation Resistance≥100MΩ
Physical Characteristics	Total mechanical travel	3600° ± 10 °
	Starting torque	≤36mN.m
	Standard package	20 pcs /box

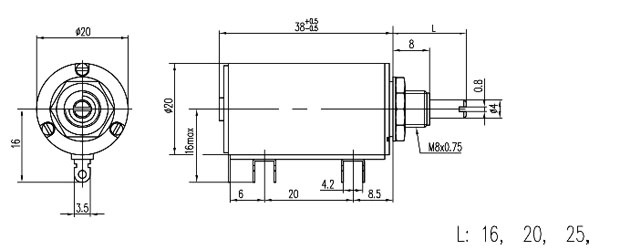

Outline Drawing

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
