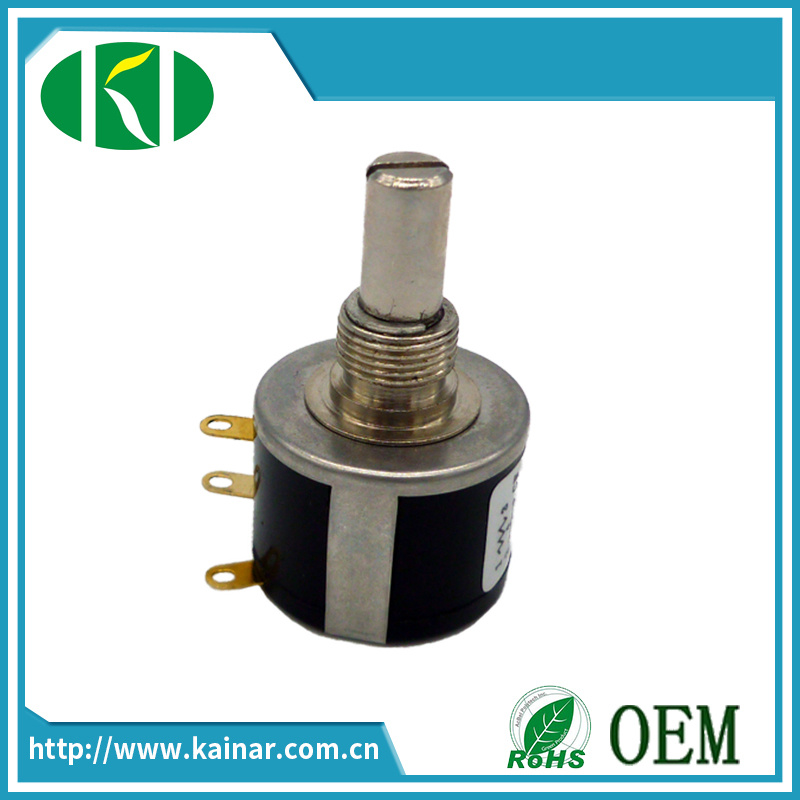

Wxd534 22mm Precisioun Wirewound Multiturn Potentiometer

Name: Wxd534 22mm Precisioun Wirewound Multiturn Potentiometer
Brand: all-electronics-online.com
SKU: 821310365
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 1.75-1.95/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WXD534
Resistance Range:	200ohm-100kohm
Tolerance Of Resistance:	±5%
Total Rotation Angle:	3600±10º
Rated Voltage:	160V
Power Rating:	2W
Color:	Black
Resistance:	Variable Resistor
Material:	Wire-wound Resistor
Package Type:	Carton
Brand:	Kn

Product Description

mutiturn Wirewound b104 bourns Potentiometers 5K 10K 100K potentiometer WXD534

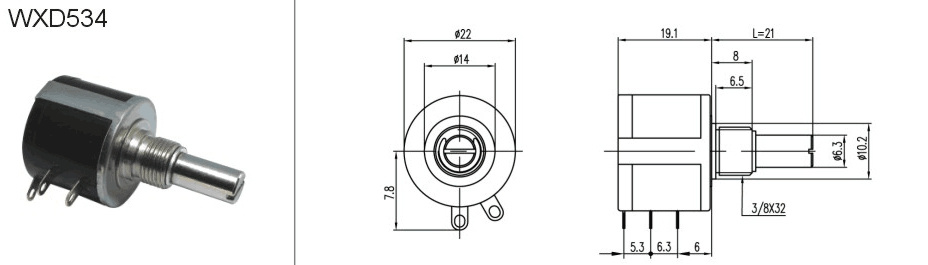

OUTLINE DRAWING

ELECTRICAL CHARACTERISTICS

RANGE OF NOMINAL RESISTANCE	200Ω~100KΩ
RESISTANCE TOLERANCE	±5% ±10%
INDEPENDENT LINEARITY	±0.5%
TERMINAL RESISTANCE	≤0.2% OR 5Ω
ROTALION NOISE	≤3%R OR 3Ω
WITHSTAND VOLTAGE	500AC
EFFECTTVE ELECTRICAL TRAVEL	3600°

ENVIRONMENTAL CHARACTERISTICS

RATED POWER	160VAC ,2W:70ºC , 0W:125ºC
TEMPERATURE RANGE	-15ºC~ +55ºC
TEMPERATURE COEFFICENT	±100ppm/ºC maximum / unit
TEMPERATURE VARIATION	ΔR≤±2%R
COLLISION	390m/S² , 4000 cycles ΔR≤±1%R
VIBRATION	10~500HZ, 0.75mm, 6h ΔR≤±1%R electric interrupt ≤100us
CLIMATE CATEGORY	ΔR≤±3%R R1≥100MΩ
70ºC ElECTRIC ENDURANCE	2W, 1000h, ΔR≤±3%R
MECHANICAL ENDURANCE	10,000 cycles ΔR≤±3%R,
LIFE	10,000 cycles
STEADY DAMP-HEAT	ΔR≤±3%R, R1≥100MΩ

PHYSICAL CHARACTERISTICS

TOTAL MECHANICAL TRAVEL	3600°±10°
STARTING TORQUE	≤36mN.m
STOP STRENGTH	≥300mN.m

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
