X Band Flat Rectangular Aluminum Copper Waveguide Tube

Name: X Band Flat Rectangular Aluminum Copper Waveguide Tube
Brand: all-electronics-online.com
SKU: 807305225
Availability: InStock
Rating: 4.3 (73 reviews)

Price:	US $ 100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WR90/BZ100
Place Of Origin:	Shanghai
Frequency:	9.84-15.0GHz
Insertion Loss:	Hexu Microwave Antenna Feed System
Name:	Antenna Feed System
Usage:	Satellite Antenna
Operating Wavelength:	Microwave
Directionality:	Omnidirectional Antenna
VSWR:	<1.5
Usage Occasion:	Satcom on The Move
Material:	Al&Cu
Nature Of Operation:	Receiving&Transmitting Antenna

Product Description

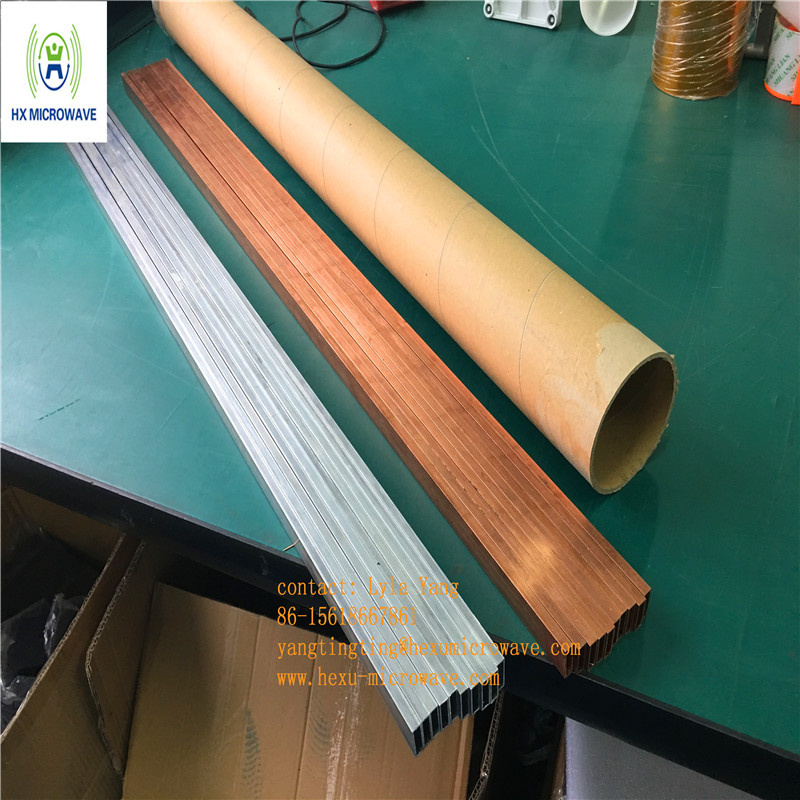

Name: X band flat rectangular aluminum copper waveguide tube
Specification for Bend Waveguide

Type	Frequency Range	VSWR	Standard Dimension	Waveguide Type		Flange	Material
Type	GHz	VSWR(Max.)	A×B mm	GB	EIA	Flange	Material
CW-3EW	0.32-0.49	1.15	300*300	BJ3	WR2300	FDP/FDM	Al
CW-4EW	0.35-0.53	1.15	280*280	BJ4	WR2100	FDP/FDM	Al
CW-5EW	0.41-0.62	1.15	250*250	BJ5	WR1900	FDP/FDM	Al
CW-6EW	0.49-0.75	1.15	200*200	BJ6	WR1500	FDP/FDM	Al
CW-8EW	0.64-0.98	1.15	150*150	BJ8	WR1150	FDP/FDM	Al
CW-9EW	0.75-1.15	1.15	150*150	BJ9	WR975	FDP/FDM	Al
CW-12EW	0.96-1.46	1.15	100*100	BJ12	WR770	FDP/FDM	Al
CW-14EW	1.13-1.73	1.15	100*100	BJ14	WR650	FDP/FDM	Al
CW-18EW	1.45-2.20	1.15	80*80	BJ18	WR510	FDP/FDM	Al/Cu
CW-22EW	1.72-2.61	1.15	80*80	BJ22	WR430	FDP/FDM	Al/Cu
CW-26EW	2.17-3.30	1.15	60*60	BJ26	WR340	FDP/FDM	Al/Cu
CW-32EW	2.60-3.95	1.15	50*50	BJ32	WR284	FDP/FDM	Al/Cu
CW-40EW	3.22-4.90	1.15	40*40	BJ40	WR229	FDP/FDM	Al/Cu
CW-48EW	3.94-5.99	1.15	40*40	BJ48	WR187	FDP/FDM	Al/Cu
CW-58EW	4.64-7.05	1.15	40*40	BJ58	WR159	FDP/FDM	Al/Cu
CW-70EW	5.38-8.17	1.15	30*30	BJ70	WR137	FDP/FDM	Al/Cu
CW-84EW	6.57-9.99	1.15	25*25	BJ84	WR112	FBP/FBM/FBE	Al/Cu
CW-100EW	8.20-12.40	1.15	25*25	BJ100	WR90	FBP/FBM/FBE	Al/Cu
CW-120EW	9.84-15.0	1.15	20*20	BJ120	WR75	FBP/FBM/FBE	Al/Cu
CW-140EW	11.9-18.0	1.15	20*20	BJ140	WR62	FBP/FBM/FBE	Al/Cu
CW-180EW	14.5-22.0	1.15	20*20	BJ180	WR51	FBP/FBM/FBE	Al/Cu
CW-220EW	17.6-26.7	1.15	20*20	BJ220	WR42	FBP/FBM/FBE	Al/Cu
CW-260EW	21.7-33.0	1.15	20*20	BJ260	WR34	FBP/FBM/FBE	Al/Cu
CW-320EW	26.5-40.0	1.15	15*15	BJ320	WR28	FBP/FBM/FBE	Al/Cu
CW-400EW	32.9-50.1	1.20	15*15	BJ400	WR22	FUGP	Cu
CW-500EW	39.2-59.6	1.20	15*15	BJ500	WR19	FUGP	Cu
CW-620EW	49.8-75.8	1.20	15*15	BJ620	WR15	FUGP	Cu
CW-740EW	60.5-91.9	1.20	15*15	BJ740	WR12	FUGP	Cu
CW-900EW	73.8-112	1.20	15*15	BJ900	WR10	FUGP	Cu

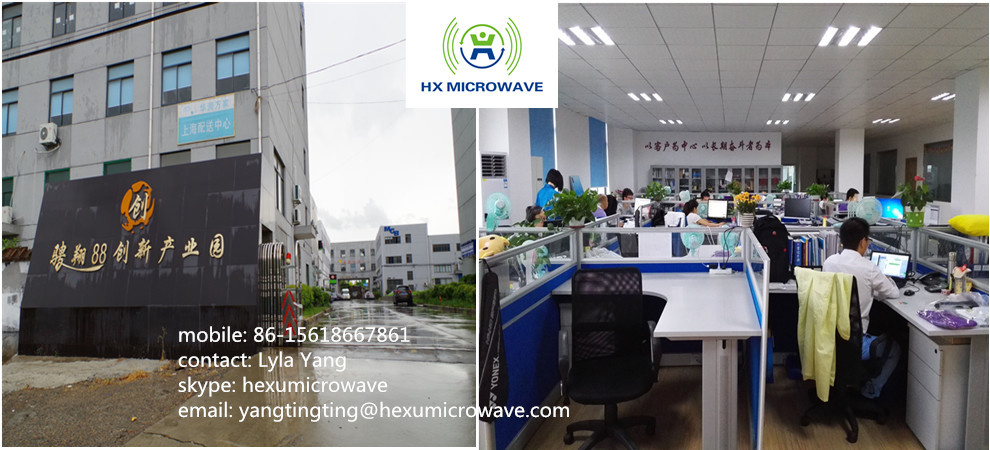

Company Show

Shanghai Hexu Microwave,a high-teach manufacture,specializes in development,design,production and series of microwave and mobile communciation fields.Our products involve flexible waveguides,
Coaxial components,hard waveguides components,elliptical waveguides,antenna,RF cable,mobile communication microwave transmissio components as well as ferrite devices,ets

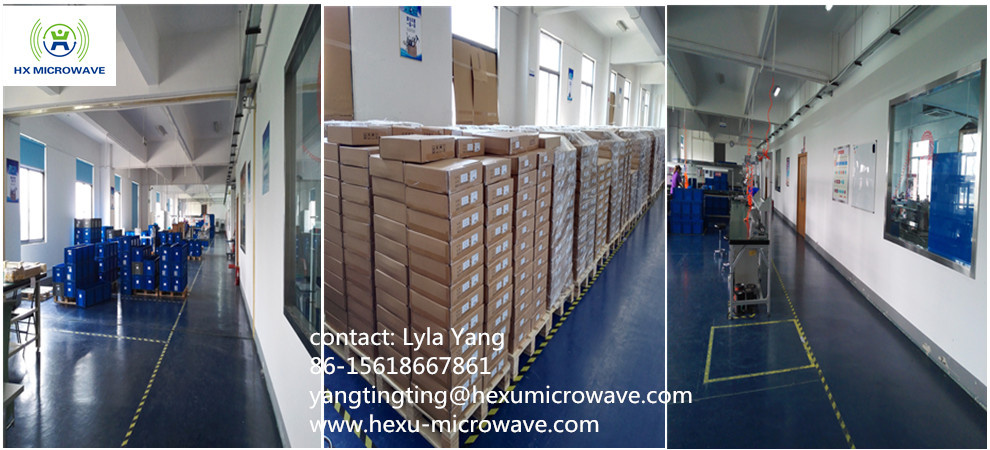

Workshop&Warehouse Show

Certificate Show

Technology Progress show

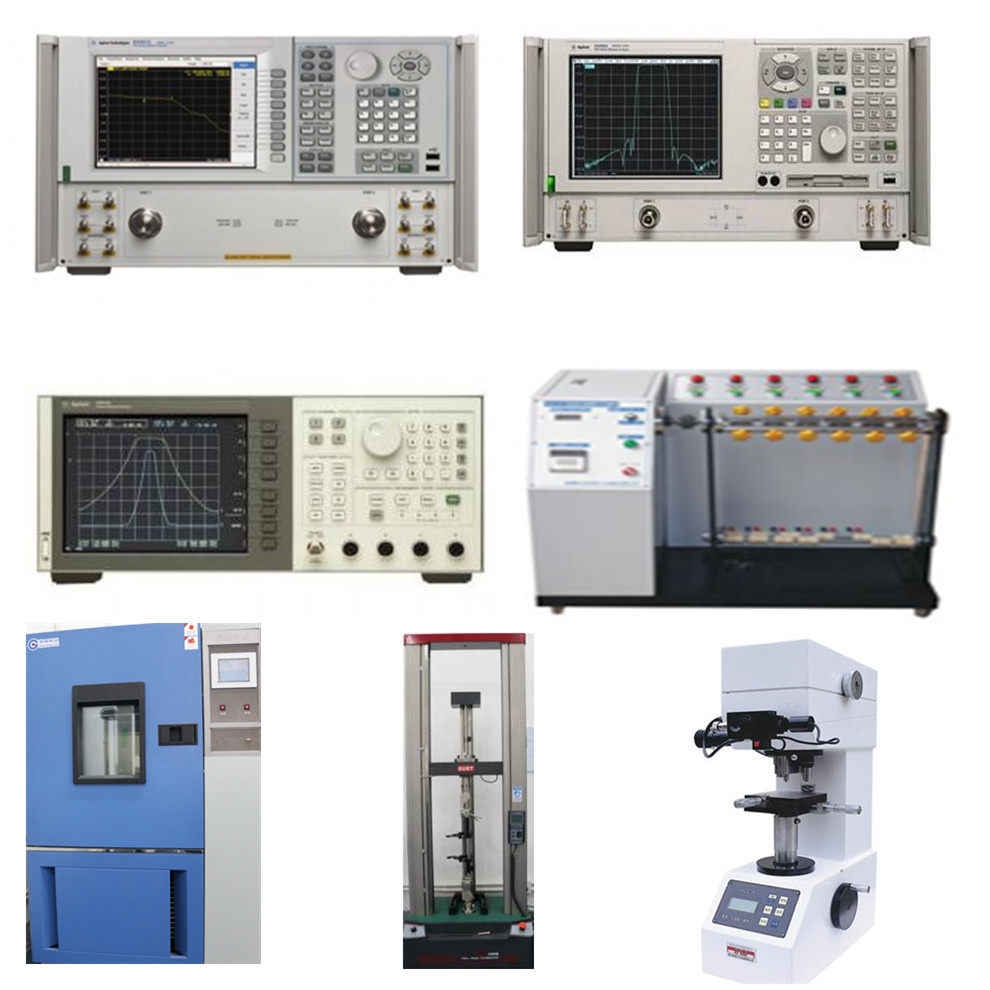

Equipment Show

Shanghai HeXu Microwave company is a high-tech manufacturer, Benefit from our more than 10 years experiences. HEXU application engineers work with you to find cost-effective design solutions that meet your requirements.

The products mainly include rectangular flexible waveguide, Elliptical flexible waveguide, RF cable assemblies, Microwave components as well as ferrite devices, etc. Which are widely used in telecommunication, satellite communication, radio and TV, medical and military industry, radar applications etc.

Our factory established in 2011 and our trading company founded in 2012. ISO certificated factory.
