| Prod Model: |
XB2-BS532 |
| Type: |
Composite |
| Usage: |
Start Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Xingzhu |
| Structure: |
Snap Lock Mechanism |
Product Description
Schneider type XB2 series 22mm push button switches
Zhejiang Xingzhu Machinery Co., Ltd. locates in the greatest low-voltage appliance market Liushi in Wenzhou city.
Our company was set up in 2001 and is a professional manufacture that mainly deal in producing and selling Push Button Switch, LED Signal lamps, Push button Control Box and its semi-products. Our products comply with GB/T14048.1 and IEC60947-5-1, We have gained CE , ISO9001, ROHS and CE certification.
The push button Switches are used in controlling circuit of AC 50HZ or 60HZ, Voltage to 660V, DC coltage below 400v, it is used for controlling signal and interlocking.
The main body adopts zinc alloy and high grade anti-flaming plastic, the contact adopts circuit of AC coltage 380v, 50hz or 60hz, DC vooltage below 380V, Used as kinds of indication signal, warning signal, accident signal and other signals
Setting Information |
Standard | IEC60947-5-1,EN60947-5-1,GB/T14048.1-93,GB/14048.5-93 |
UI | 660V |
1th | 10A AC-15 DC-13 |
Ambient air temperature | -25°c~ +40°c |
Relative air humidity: | ≤90% |
Protection degree: | IP40; IP65 Waterproof type as request |
Pollution degree: | class 3 |
Life | 3,000,000 times machine life span |
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 year (Grade B) 3 years ( Grade A) warranty to our products.

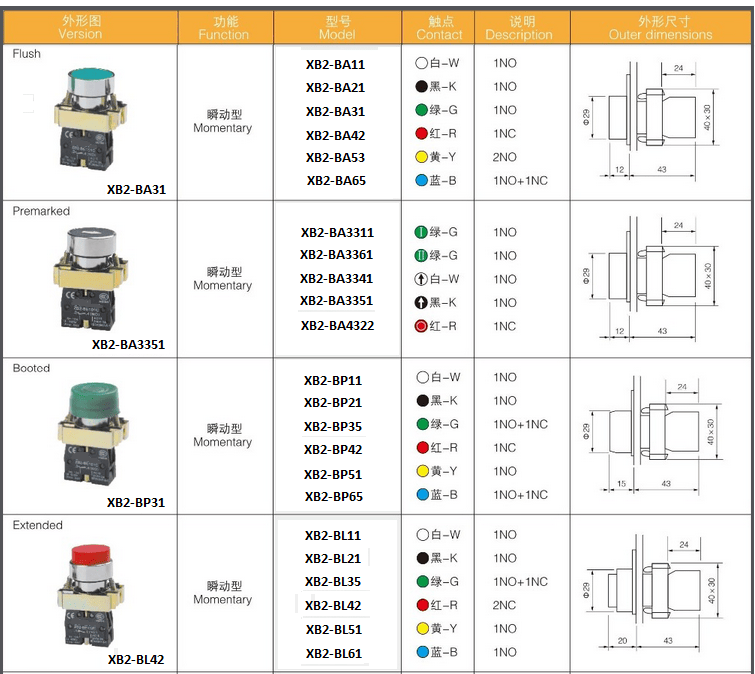

| type | Universal Model | Order Quantity |
| Flush Push button | XB2-BA31 | |
| Flush Push button | XB2-BA42 | |
| Flush Push button | XB2-BA35 | |
| Flush Push button | XB2-BA45 | |
| Flush Push button | XB2-BA25 | |

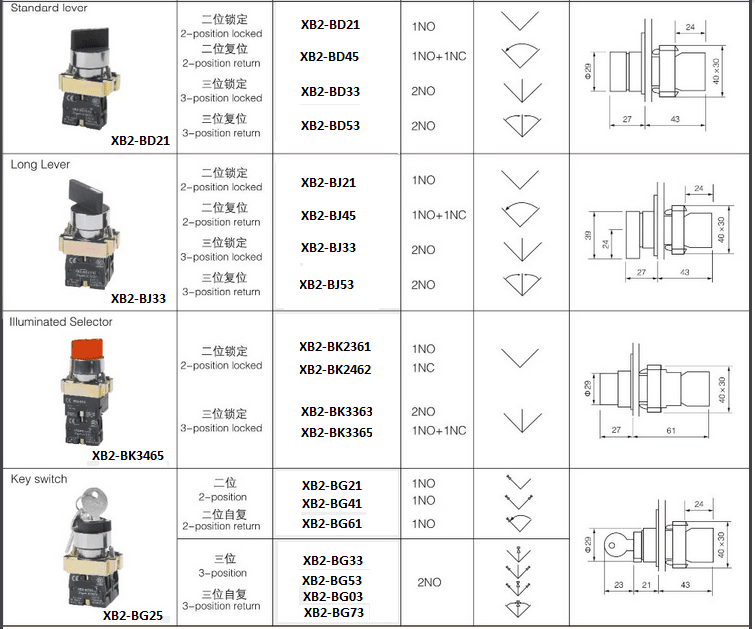

| 2-position Selector switch | XB2-BD21 | |
| 3-position Selector switch | XB2-BD33 | |
| 2-position Long Lever | XB2-BJ25 | |
| 3-position Long Lever | XB2-BJ33 | |

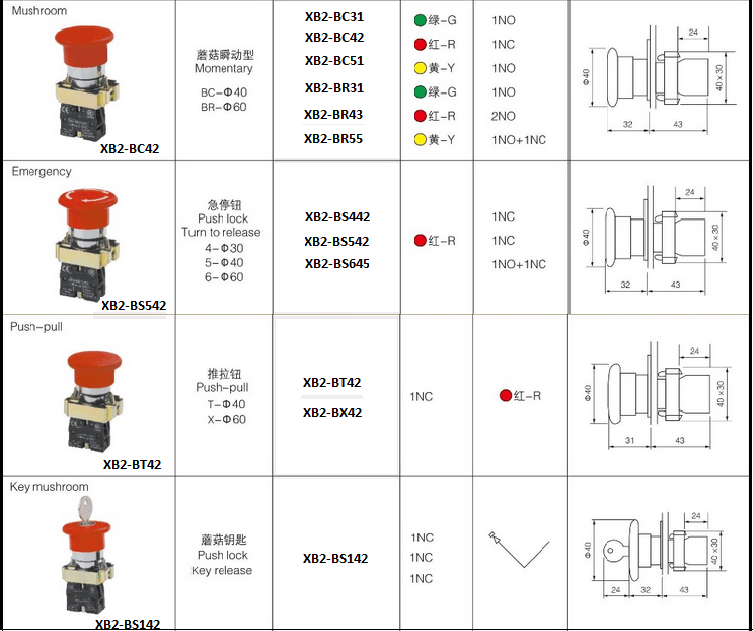

| Emergency stop | XB2-BS542 | |
| Mushroom push button | XB2-BC42 | |
| Push-pull Mushroom push button | XB2-BT42 | |
| 2-position key switch | XB2-BG21 | |
| 3-position key switch | XB2-BG33 | |
| 2-position return key switch | XB2-BG73 | |

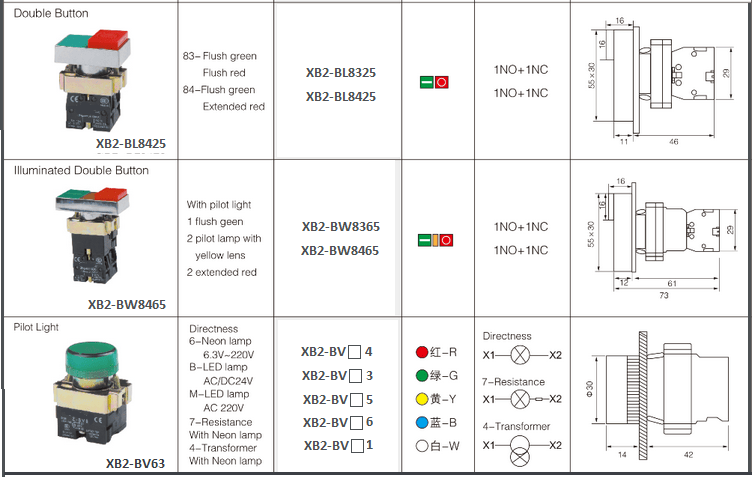

| Double button | XB2-BL8325 | |
| Selector switch with light | XB2-BK2361 | |
| Double button with light | XB2-BW8465 | |
| Double button | XB2-BL8465 | |
| key mushroom | XB2-BS142 | |

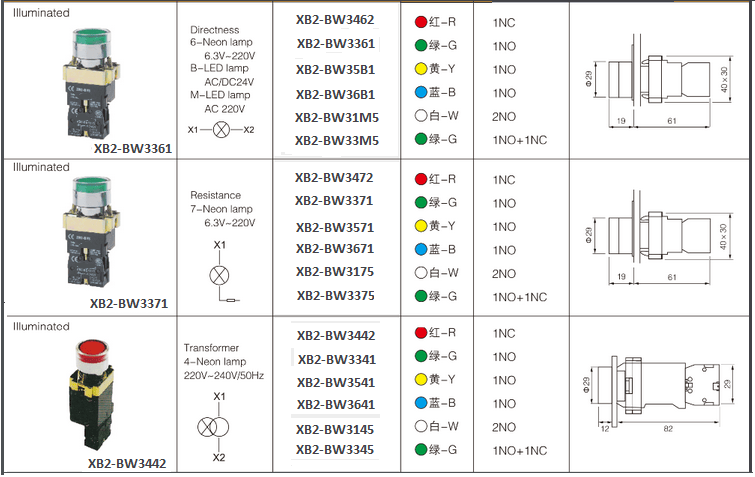

| Illuminated push button | XB2-BW3361 | |
| Illuminated push button | XB2-BW3462 | |
| Push button contact block | ZB2-BE101 | |
| Push button contact block | ZB2-BE102 | |
Zhejiang Xingzhu Machinery Co., Ltd. Locates in the greatest low-voltage appliance market Liushi in Wenzhou City, which is named of " the electric city of China", and our factory is 240 Kilometers from Ningbo port.
Our company was set up in 2001 and is a professional manufacture that mainly deal in producing and selling Push Button Switch, LED Signal lamps, Push button Control Box and its semi-products.
We has been awarded CE and CCC certification and approval by ISO9001 systems. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
As we provide the products with good quality at the reasonable price, our products have been selling well in domestic market and have been exported to the Middle East, Southeast Asia, Africa, Europe, South and North America.
We're pleased to get your Inquiry and we will response as soon as possible.
