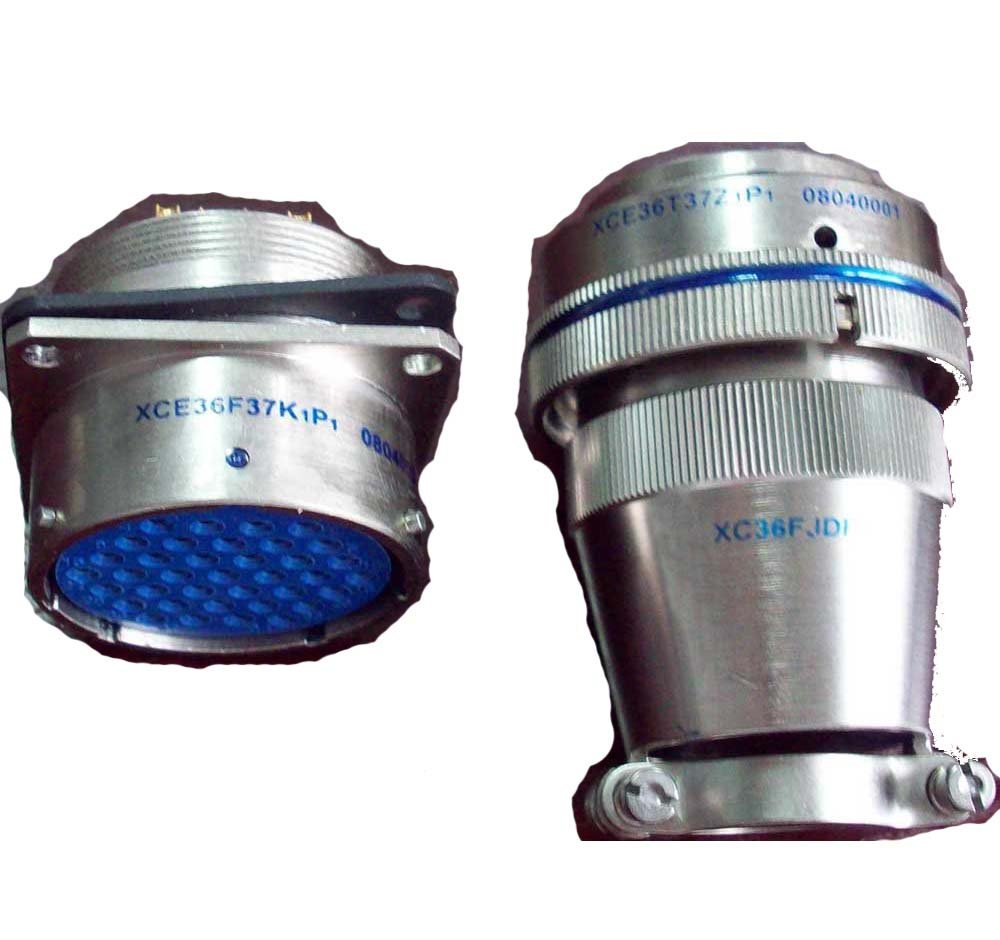

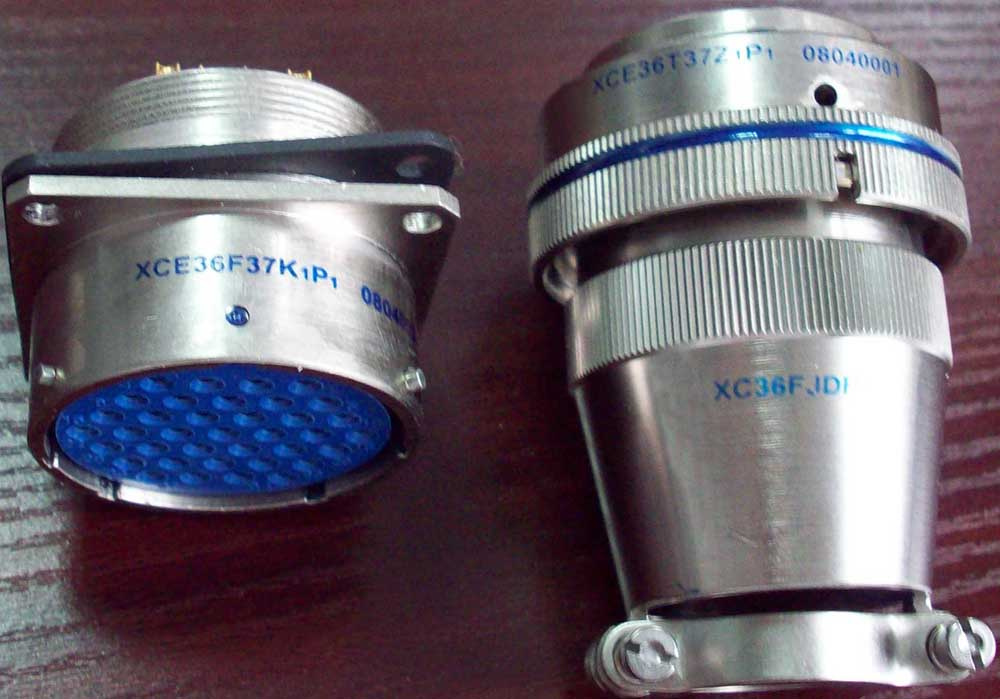

Xcg Series Bayonet Coupling Military Connectors

Name: Xcg Series Bayonet Coupling Military Connectors
Brand: all-electronics-online.com
SKU: 647569365
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 26.9-32/Set
Trade Terms:	FOB
Min Order:	5/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XCG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sealing Connector:	Solder Contacts
Xcg14 Series:	Xcg18 Series
Xcg22 Series:	Xcg24 Series
Xcg27 Series:	Xcg30 Series
Xcg33 Series:	Xcg36 Series

Product Description

XCG series connectors is manufactured conform to the State's military standard GJB2889(MIL-DTL-38999). They have latest design and high reliability. It use wire spring for socket, solder termination for the wires of pins and sockets. The plug and receptacle may be mounted with pins or sockets on request. These connectors are widely used for space, aviations, computers, telecommunications, navigation and electronic equipment.

Product Ordering
XCG 27 T 24 K D
1 2 3 4 5 6
1. Name of series: XCG series rain-proof circular connectors
2. Type: 14, 18, 22, 24, 27, 30, 33, 36
3. T: Plug, F: Flange receptacle
4. Number of contacts: 4, 5, 10, 12, 14, 15, 19, 22, 24, 27, 30, 40, 41, 55
5. Z: Pin, K: Socket
6. D: Without thread and accessorices, electric-plated,
HP: With straight shieded screw, electric-plated

Tightness: Sealing flange receptacle 152Kpa.
Environment proof: Good performance of moisture proof, rain-proof,
Resist mildew and dust.

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
