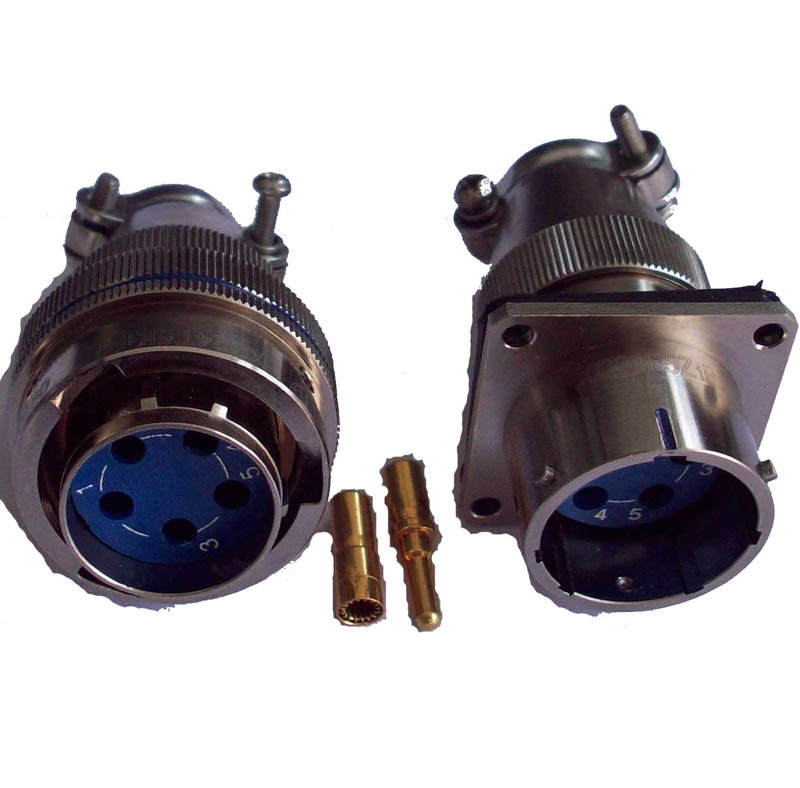

Xcg18 Series Bayonet Coupling Circular Connector

Prod Model:	XCG18
Contacts Type:	Crimp Contacts
Size:	Xc18 Series
Size1:	Xc24 Series
Size6:	Xc30 Series
Size5:	Xc36 Series
Size2:	Xc14
Size3:	Xc27
Size4:	Sx33

Product Description

XCG series connectors is manufactured conform to the state's military standard gjb2889. They have latest design and high reliability. It use wire spring for socket, and crimp or solder termination for the wires of pins and sockets. The plug and receptacle may be mounted with pins or sockets on request. These connectors are widely used for space, aviations, computers, telecommunications, navigation and electronic equipment.Meet CE.ROhs.
Product Ordering
     XCG  18  T   24   K   D
       1      2       3     4    5   6
      1. Name of series:   XCG series rain-proof circular connectors
2.Type:     14,18,22,24,27,30,33,36,39
3. T­-Plug,F-Flange receptacle
4.Number of contacts:5,10,12,14,15,19,22,24,27,30,40,41,55
      5. Z-Pin,K-Socket
6.  D-Without thread and accessorices, electric-plated,
D1- Without thread and accessorices,Nickel-plated,
HP-With straight shieded screw,electric-plated,
HP1-With straight shieded screw,Nickel-plated,

Technical characteristics


Temperature	Relative humidity	Elevation	Vibration	Shock	Endurance
-55°C~+200°C	95% at40°C	3000m	10~2000Hz, 154m/s²	490m/s²	500cycles



Contact Ø	Current	Voltage	Contact resistance
Ø1mm	5A	500V	≤5mΩ
Ø1.5mm	10A	500V	≤2.5mΩ
Ø2mm	20A	500V	≤1.25mΩ
Ø3mm	40A	500V	≤0.75mΩ



Environment	Sealing		Non-sealing
	Voltage	Voltage proof	Voltage	Voltage proof
Normal	500V	1500V	500V	1500V
Moisture	500V	750V	500V	1125V
Low pressure(1KPa)	150V	300V	250V	300V

Tightness:  sealing flange receptacle 152Kpa.
Environment proof:good performance of moisture proof,rain-proof,
                 Resist mildew and dust.
