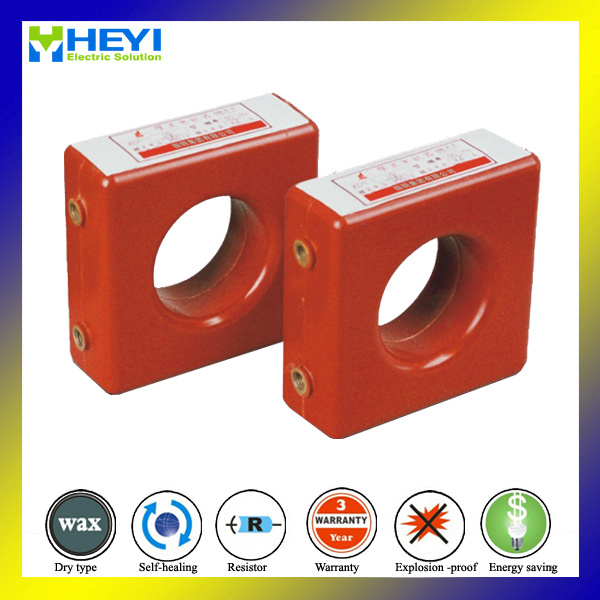

Xd1 Low Price Current Limiting Reactor 30kvar

Prod Model:	XD1-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	91*94*41
Color:	Grey
Package:	According to Client Requirement
Product Feature:	Electrical Harmonic Filter Reactor
Hand Sample Time:	Within 3-5 Days
Port:	Ningbo/Shanghai
Ultrasonic Reactor Function:	Ultrasonic Reactor Protect Power Capacitor
Ultrasonic Reactor Type:	Dry Type
OEM:	Accept
Material:	Cold Roller Silicon Steel Sheet
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Brand:	OEM

Product Description

XD1 low price Current limiting reactor 30kvar
1.Filter reactor low loss cold roller silicon steel sheet
2.anti corrosion exposed parts
3.low temperature rise, low loss

XD1 low price Current limiting reactor 30kvar specification

Type	A1	A2	A3	B1	H
XD1-12/0.4	50	70	91	94	41
XD1-14/0.4	50	70	91	94	41
XD1-15/0.4	50	70	91	94	41
XD1-16/0.4	50	70	91	94	41
XD1-18/0.4	50	70	108	108	41
XD1-20/0.4	50	70	108	108	41
XD1-25/0.4	55	72.5	108	108	41
XD1-30/0.4	55	72.5	108	108	41
XD1-35/0.4	65	83	108	108	41
XD1-40/0.4	65	83	108	108	41

Rated current	Match capacitor capacity and limited current times
Testing voltage	Under 3kv No puncture and flash  within1 min
Temperature change	1.Case less than 65k,coil less than 65k
	2.within 24 hours ,average temperature would not more than 35 ºC
Relative humidity	Less than 80%
Vibrate and welter	Less than 5degree
Ac limited reactor installation condition	No sun radiate ,no snowing and virus

XD1 low price Current limiting reactor 30kvar advantage
1.global leading profession manufacture of filter reactor
2.100% pure copper for inside core , iron steel instruction with anti rust
3.Monthly production : 100000pcs
4.Fast delivery : you will get the order when you need it
5.2000 square meter workroom for 100worker
6.OEM is warmly welcome
7.Convenient : 45 minutes to wenzhou airport

XD1 low price Current limiting reactor 30kvar function
1 Improve voltage distribute on each line
2. Balance reactive power when overload circuit ,reduce power loss on the line
3.When the reactor neutral grounding via small reactor device,Also available small reactor compensation line and phase to ground capacitance,to accelerate the arc current automatically extinguished, easy to use

XD1 low price Current limiting reactor 30kvar Payment terms
1. 30% T/T advance , the balance against to the copy B/L
2. The other specific issues can negociate.
3. Pls confirm the details with us before do the prepayment.

XD1 low price Current limiting reactor 30kvar Packing information
1. Each with wooden pacakge
2.48pcs/ctn , flap into wooden  carton
3. G/N.W: 30/28kg
4. We can packing as your required

Why choose XD1 low price Current limiting reactor 30kvar
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)2000 square meters work environment
