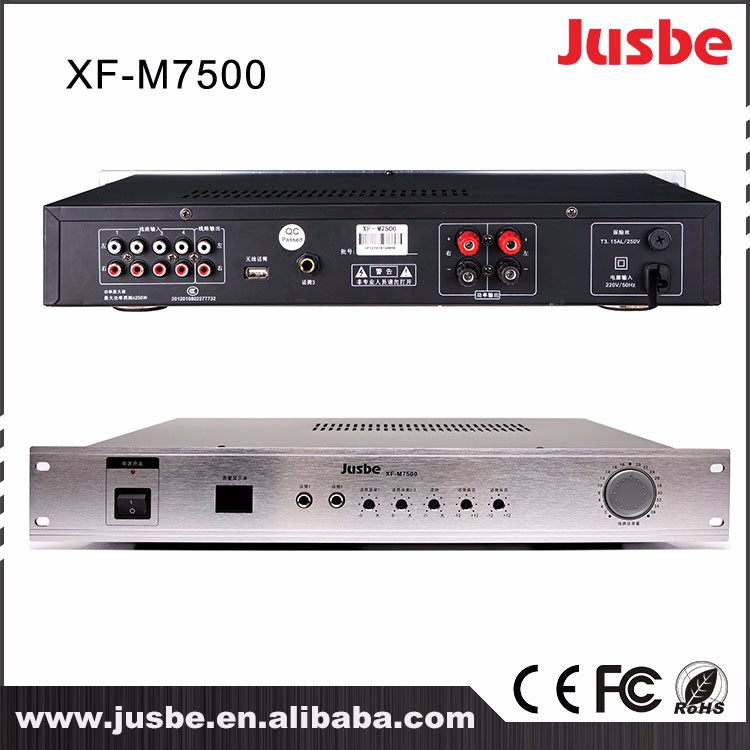

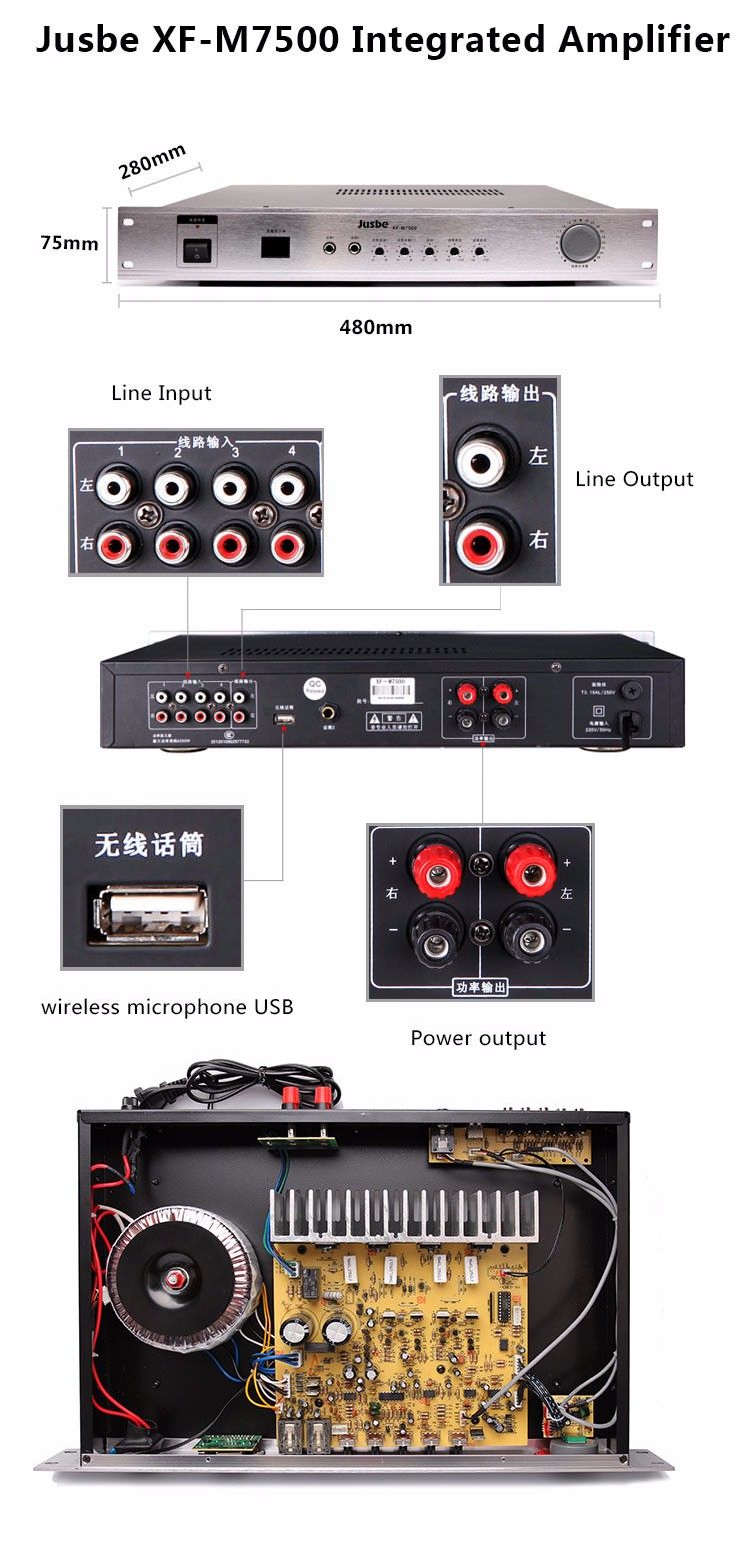

Xf-M7500 Integred Tube Amplifier for Classroom/Conference Room
| Price: |
US $ 55-75/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
T/T,D/P,Paypal,Money Gram |
| Prod Model: |
XF-M7500 |
| Color: |
Silver Gray |
| Material: |
Aluminium Alloy |
| Rated Power: |
2*100W/8Ω |
| Max Power: |
2*200W /8Ω |
| Rated Output Level: |
0.775V |
| Harmonic Distortion: |
≤ 0.5% |
| Snr: |
≥ 80dB |
| Main Fuse: |
3.15A |
| Power Supply: |
AC220V±10%50Hz |
| Net Weight: |
6 Kg |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Type: |
Teaching Amplifier |
| Usage: |
Teaching |
| Used For: |
Student |
| Sound Channel: |
2.0 |
Product Description
Product Description
Specification:| Product Name | Xf-M7500 Integred tube Amplifier for classroom/Conference Room |
| Model | XF-M5500 | XF-M7500 | XF-E500 | XF-S70 |
| Rated power | 2*150W/8Ω | 2*100W/8Ω | 2*80W/8Ω | 2*65W/8Ω |
| Max power | 2*300W /8Ω | 2*200W /8Ω | 2*160W /8Ω | 2*130W /8Ω |
Frequency
Response | Line input: 20Hz-20KHz |
| Microphone: 60Hz-14KHz |
| Rated Input Level | Microphone: 15mV(nonequilibrium) |
| Line:200mV |
| Rated Output Level | Line: 0.775V |
| Harmonic Distortion | ≤ 0.5% |
| SNR | ≥ 80dB |
| Main Fuse | 4A | 3.15A | 3A | 1A |
| Power supply | AC220V±10%50Hz | AC220V±10%50Hz | AC220V±10%50Hz | AC220V±10%50Hz |
| Material | Aluminum alloy |
| Surface treatment | sandblasting |
| Color | silver | silver gray | Red | Red |
| Product Size(mm) | 480×390×130 | 480×280×75 | 480×300×75 | 480×280×70 |
| Net Weight | 8.5kg | 6kg | 5.7kg | 3.5kg |
Feature
♣. Four audio sources input.
♣. Use dual-channel, high-fidelity, full separated parts, full range with power amplifier system.
♣. Microphone control volume, reverberation, high & low tones independently( Environmentally friendly microphone socket comes with DC+6V power source ).
♣. With digital display screen
♣. There have 2 microphone socket in front and 1 in the back that can adjust volume of microphone tones,& line independently.
♣. Have many advantages like: high fidelity, high definition, low noise, stable and reliable
♣.4 microphone sockets(Environmentally friendly microphone socket comes with DC+6V power source)
♣. Rack mountchassis, the main function keys using hidden type design which can avoid mis operationso that to extend the working life of the products effectively.
♣. With wireless microphone & USB interface
♣. Can configurate external 2.4G transmitter to supporting the use of 2.4G digital wireless microphone, so that to achieve the function of 2.4G digital wireless multimedia amplifiers.
Application
Packaging & Shipping
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
