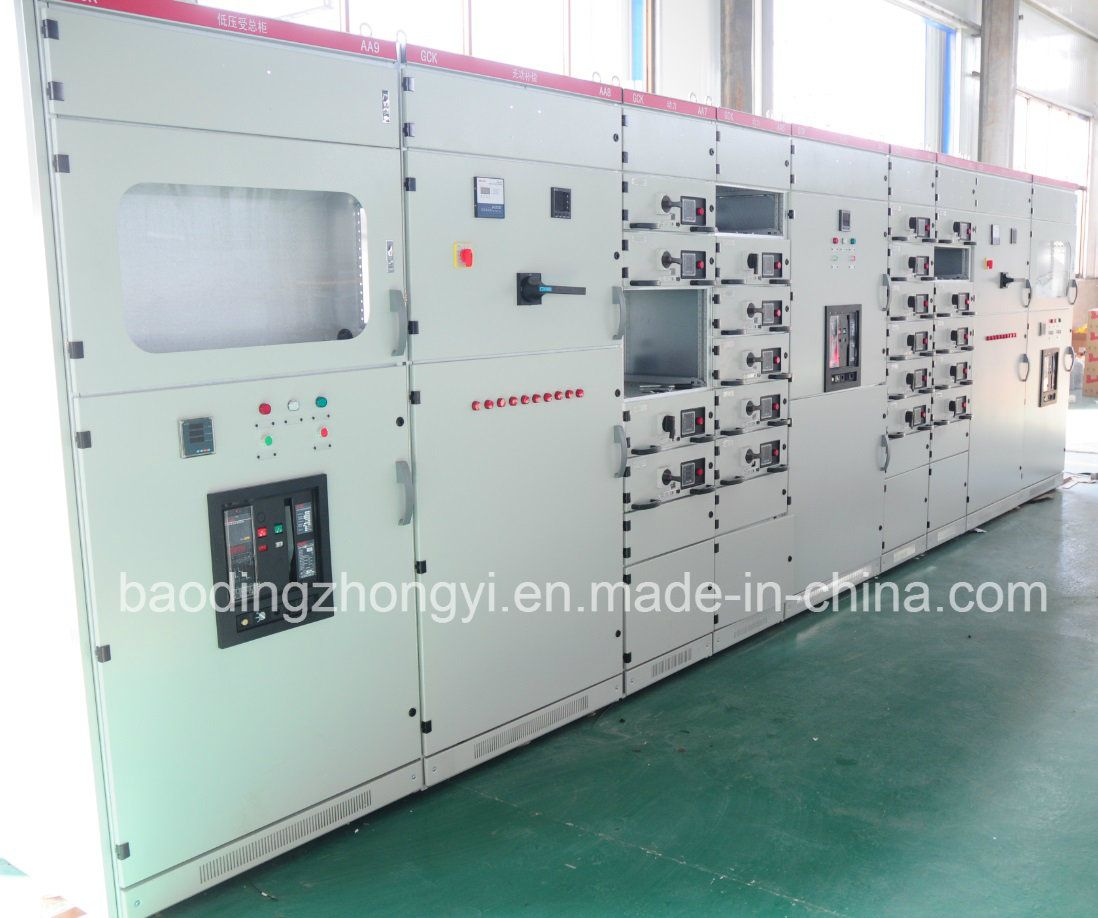

Xgn2 High Voltage Power Supply Electrical Control Cabinet with Factory Price

Prod Model:	XGN2
Frequency:	50Hz
Rated Voltage:	3kv / 6kv / 12kv
Type:	Modular High Voltage

Product Description

 [ Product Name ]

 XGN2 High voltage power supply electrical control cabinet with factory price

[ Product Description ] :

 XGN2 electrical 11kV switchgear panel box is a complete set of power distribution devices for 3.5kV ~ 12kV with three-phase AC 50Hz single bus ,single busbar with bypass system or dual bus system for  power receiving and transmission. It can meet the request for all kinds of power plants, substations
or  mining and industrial enterprises. This switchgear is indoor device, which can be equipped with various  models of the main circuit breaker, with the features of double-sided maintenance, and vertical self-stand installation, it is especially for frequent operation occasions.


[ Quality Assurance ] :

The oil immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the test of China Compulsion Certification (CCC) from  the  State  Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC draw-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed Ring unit XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the test of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .


[ Features ] :
 a. Reasonable structure
 b.Good reliabilities and safety
 c. Easy to operate and maintain


[ Application ] :

 XGN2 electrical high voltage switchgears panel box is applicable to the load center of powder distribution station and prefabricated substation in urban residential area, high-rise building, large public  buildings, factories and enterprises with three-phase AC 50Hz.
Normal operating conditions:

Ambient air temperature : -5°C ~ +40°C;
Daily average temperature(Within 24h): ≤+35ºC
Altitude:≤1000m;
Relative humidity: within 24h, daily average value ≤ 95% , daily average vapor pressure≤ 2.2KPa;                                       monthly average value ≤90%, monthly average vapor pressure≤ 1.8KPa





[ Packing & Delivery ] :

SAFE, TIMELY, EFFICIENT
Long time shipment & Seaworthy wooden box
Wooden package optional:

1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
Certifications :





[ Our Company ] :


      Baoding Zhongyi Electrical material Manufacturing Co., Ltd.mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a
variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

      Baoding Zhongyi Electrical material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.



[ Our Service ] :

Pre sale service :
1.make technical solution
2.send quotation, technical data sheet and drawing
3.prepare power transmission plan, testing plan,and shipment plan

In sale service :
1.supervise the manufacturing schedule totally in accordance with the plan
2.send photos to customer during every manufacturing process(hold point)
3.inform the customer one week before testinng.

After sale service:
1.installation and commissioning, training the workers
2.quick response within 12 hours any time
3.provide 12 months gurantee period normally.


[ FAQ ]:

1. Q: What is your minimum order quantity?
A: 1 set.

2. Q: What is your delivery time ?
A: Depend on the type of transformer.

3. Q: What is your payment term?
A: 30% advance by T/T , 70% before delivery by T/T or L/C
or we can discuss about it.

4. Q: What kind of starndard you follow?
A: IEC, ANSI, CSA, GB, etc

5. Q:What is your normal wanrranty period?
A: 12 months after transformer operation.

6. Q: Can u do installation and commissioningin user's site?
A: Yes, we can send our installation team to user's country for service.

7. Q: Do you have any experience in this kind of transformer?
A: Yes, we can provide reference list for check.

8. Q: Are you manufacturer or trading company?
A: Manufacturer
