Xhhw-2 12AWG 10AWG Building Wire, Cross-Linked Polyethylene Insulated

HeBei huatong wires&cables Group Co.,ltd.

Largest cable manufacture in north China

14 years export experience

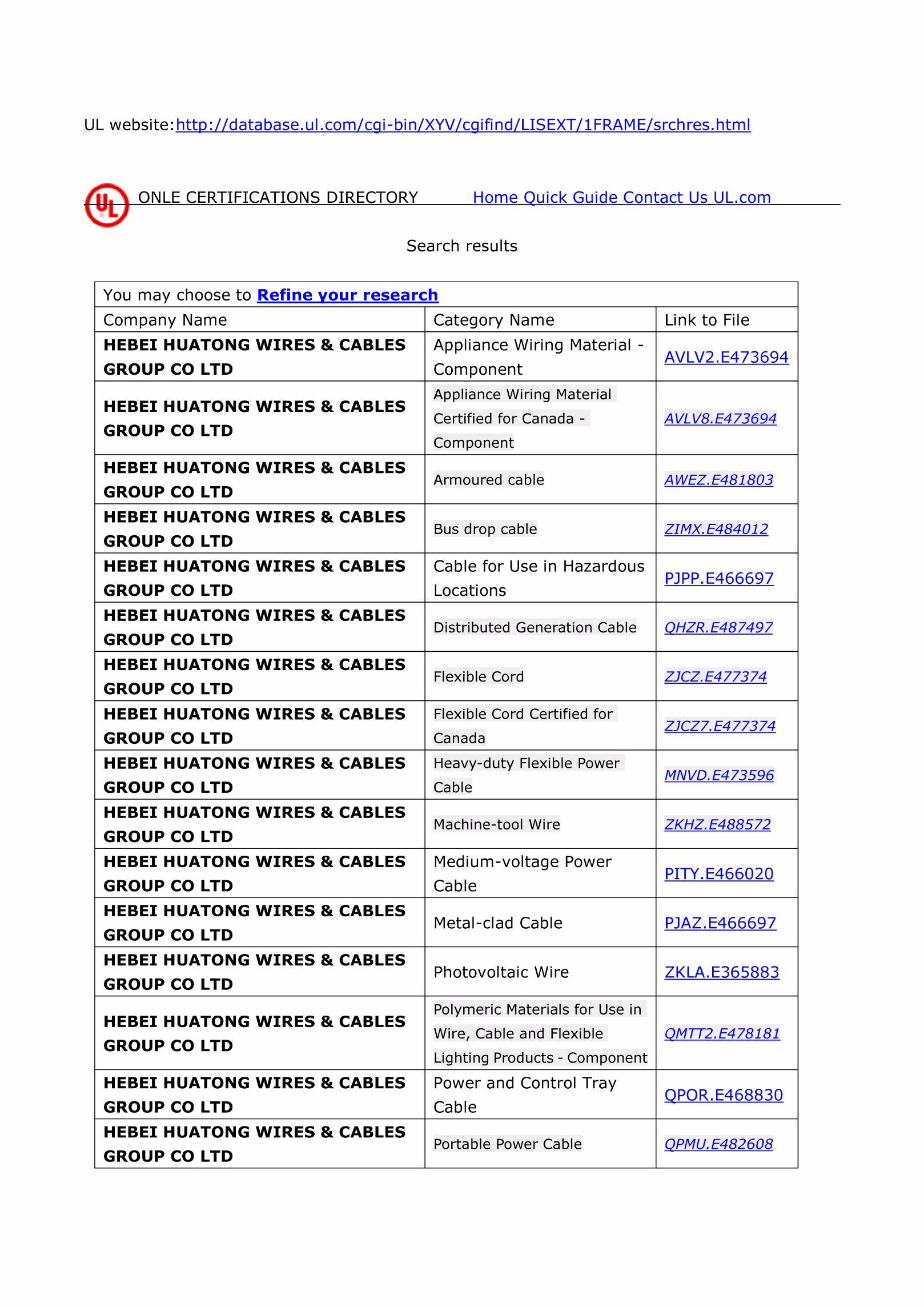

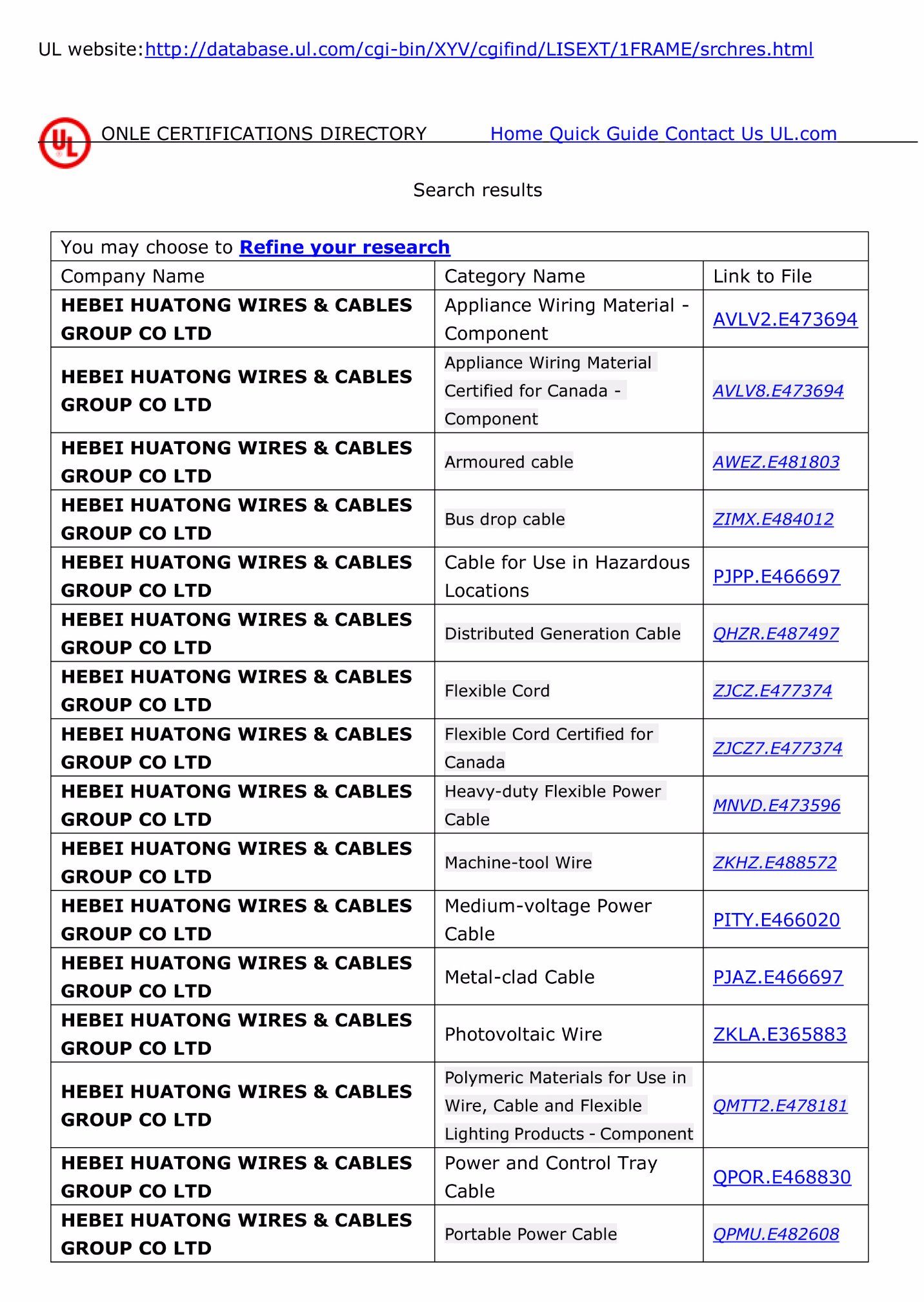

With UL,TUV,KEMA,CE,BV,PSB,SABS,GL,NK,KR,ABS ..products certifications

ISO9001,ISO14001,OHSAS18001 system certifications

With authorities testing report

CNAS approval laboratory

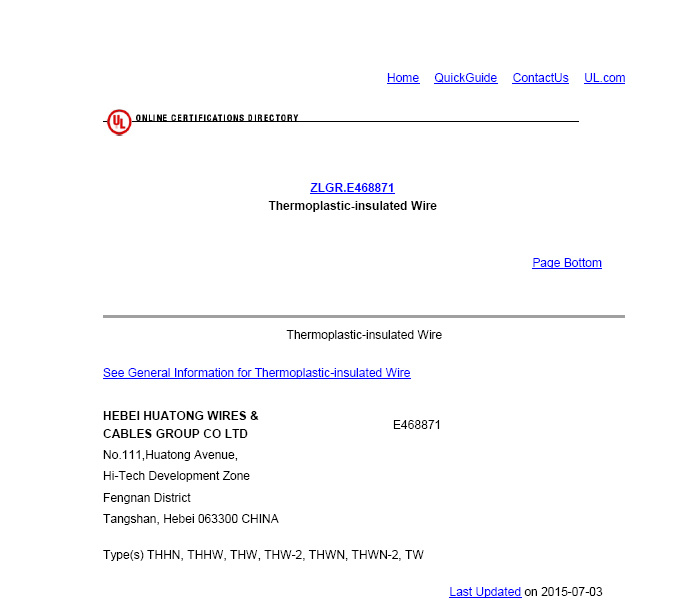

 UL listed 600v PVC/thermoplastic-insulated electric wire THHN/THWN/THW

SPECIFICATIONS

THHN or THWN-2 comply with:

ASTM - B3, B8 (7,19, 37, 61 Strands), B 787 (19 Wire Combination Unilay Strand)

Technical Compliances

- UL 83 - Thermoplastic-Insulated Wires and Cables

- CSA C22.2 No. 75-03

- UL 1063 (MTW) - Machine-Tool Wires and Cables (stranded cables only)

- UL 758 (AWM)

- ICEA S-95-658/NEMA WC 70

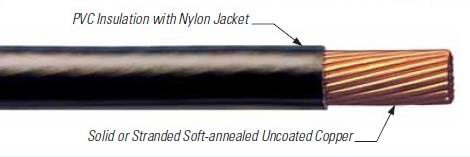

Cable Construction

Conductor:

Soft annealed bare copper, Class B

stranding per ASTM B8

Insulation:

Tough, heat and moisture resistant Polyvinyl chloride (PVC) insulation over which a nylon jacket is applied.

Color: option


THHN, THWN, THWN-2 Specifications

THHN, THWN, THWN-2

Conductor:Aluminum or Bare Copper, Soft Drawn

 Insulation:PVC

 Jacket:NYLON

1.Rated Temperature:75 Degree

2.Rated Volt:600V

3.Standard:UL83&1063

4.single core stranded

5.Cross section area:18awg-1000mcm  Standard Colors(denoted by a dash and number code following the part number below):       Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray  (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.

  Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM,    80° C where exposed to oil.


 Wire Applications:

      THHN building wire is meant for use as general purpose wiring for installation in conduit or  other recognied raceway. THHN may also be used for machine tool, appliance and control circuit

 wiring.


 Wire Approvals:

UL listed Stds. 83 & 1063 as: Type THHN Wire 90ºC in dry locations, Type THWN Wire  75ºC in wet locations.

A-A-59544, NEMA WC-5, UL-758

CSA approval upon request

 Wire Ratings:

 THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V

 THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V

  MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V

  AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V

  AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V

  AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V

  T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V

  TWN 75: - Oil, 75°C Wet, - Dry, 600V

We are one of China top rank cable&wire manufacturer.

Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS CSA GOST and so on.

we have obtained ISO9001,ISO14001,OHSAS18001,

UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.





HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
