XL Series Motive Electricity Cabinet
| Price: |
US $ 1500-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
XL-21 |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Indoor |
| Effect: |
Transformer |
| Rated Operating Voltage: |
400V |
| Rated Current: |
<800A |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

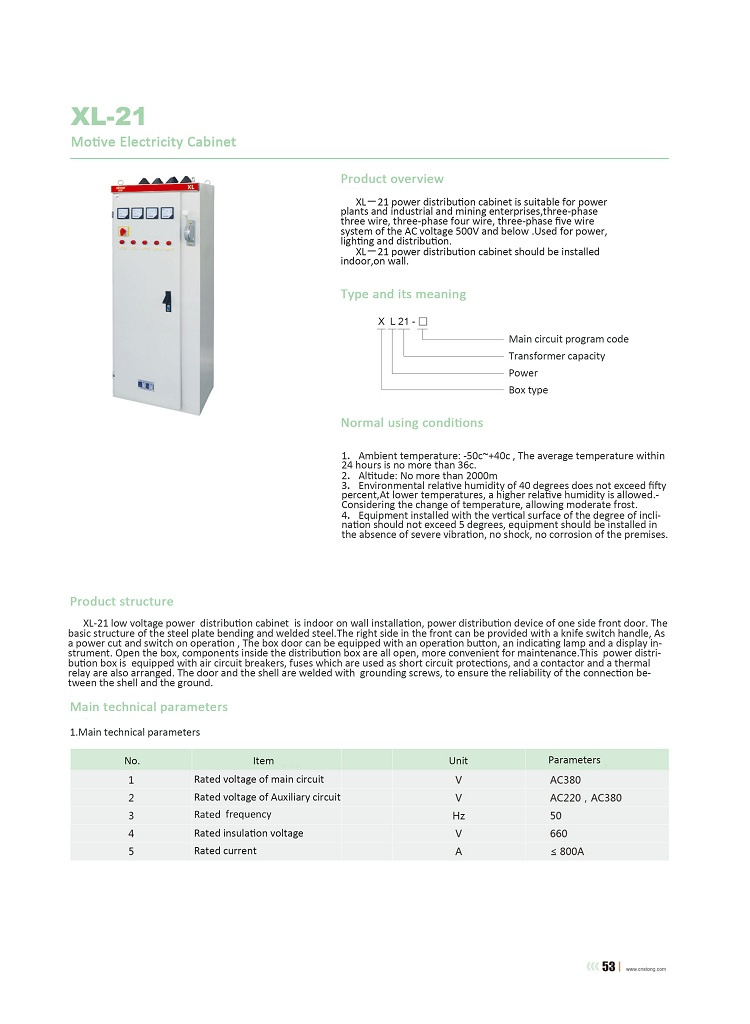

Product overview
XL-21 power distribution cabinet is suitable for power
plants and industrial and mining enterprises,three-phase
three wire, three-phase four wire, three-phase five wire
system of the AC voltage 500V and below .Used for
power ,lighting and distribution.
XL-21 power distribution cabinet should be installed
indoor,on wall.
Type meaning :
X-------- Box-type
L---------Power
21-------Design number
-------Main circuit program code
Normal conditions of use
1.Ambient temperature: -50c~+40c , The average temperature within 24 hours is no more than 36c.
2.Altitude: No more than 2000m
3.Environmental relative humidity of 40 degrees does not exceed fifty percent,At lower temperatures, a higher
relative humidity is allowed.Considering the change of temperature, allowing moderate frost.
4.Equipment installed with the vertical surface of the degree of inclination should not exceed 5 degrees,
equipment should be installed in the absence of severe vibration, no shock, no corrosion of the premises.
Product structure
XL-21 low voltage power distribution cabinet is indoor on wall installation, power distribution device of one side
front door. The basic structure of the steel plate bending and welded steel.The right side in the front can be
provided with a knife switch handle, As a power cut and switch on operation , The box door can be equipped
with an operation button, an indicating lamp and a display instrument. Open the box, components inside the
distribution box are all open, more convenient for maintenance.This power distribution box is equipped
with air circuit breakers, fuses which are used as short circuit protections, and a contactor and a thermal
relay are also arranged. The door and the shell are welded with grounding screws, to ensure the reliability of
the connection between the shell and the ground.
PLEASE FOLLOW MY LINKEDIN
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
