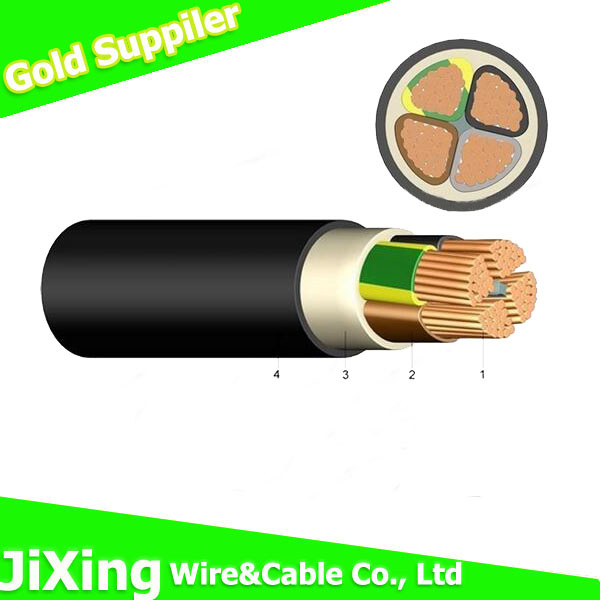

XLPE Insulated 4X95mm Electrical Power Cable

Name: XLPE Insulated 4X95mm Electrical Power Cable
Brand: all-electronics-online.com
SKU: 770720975
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 0.13/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Power Cable 4x95mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Voltage:	350V-750V
Standard Length:	100m/Roll
Working Temp:	0°c-70°c
Conductor:	Copper
Cores:	as Client's Requirement
Color:	Red/Black/Blue/Yellow/Green or as Required
Jcaket:	PVC
Package:	Fillm Packing
Delivery:	15-20days After Payment
Model:	XLPE Insulated 4X95mm Electrical Power Cable
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS
Brand:	Yongkuntai

Product Description

XLPE insulated 4x95mm Electrical Power Cable

Products model:
vv, vv22,YJV, YJV22
1, 1-5 Cores pure copper conductor
2. Pvc insulated, with or without steel armor, pvc shielded
3. High quality, ISO 9001, CCC, CE, ROHS certified
4. OEM is available.
1. Standard
Cables will be produced as per Chinese National Standard GB/T12706.2-12706.3 equivalent to IEC 60502
2. Application
This product is suitable for using in rated voltage from 6/6kV to 26/35kV system transmission and distribution lines. Based on different sheath structures, it can be used for laying in the air and underground.
3. Description and Installation Place

Description	Installation Place
Description	Installation Place
XLPE Insulated, PVC Sheathed Power Cable	Laid in indoor, outdoor, tunnels, cable canals, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force.
XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable.	Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force.
XLPE Insulated ,fine Steel Wire Armored and PVC Sheathed Power Cable	Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force.
XLPE Insulated, thick Steel Wire Armored and PVC Sheathed Power Cable.	Laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force.

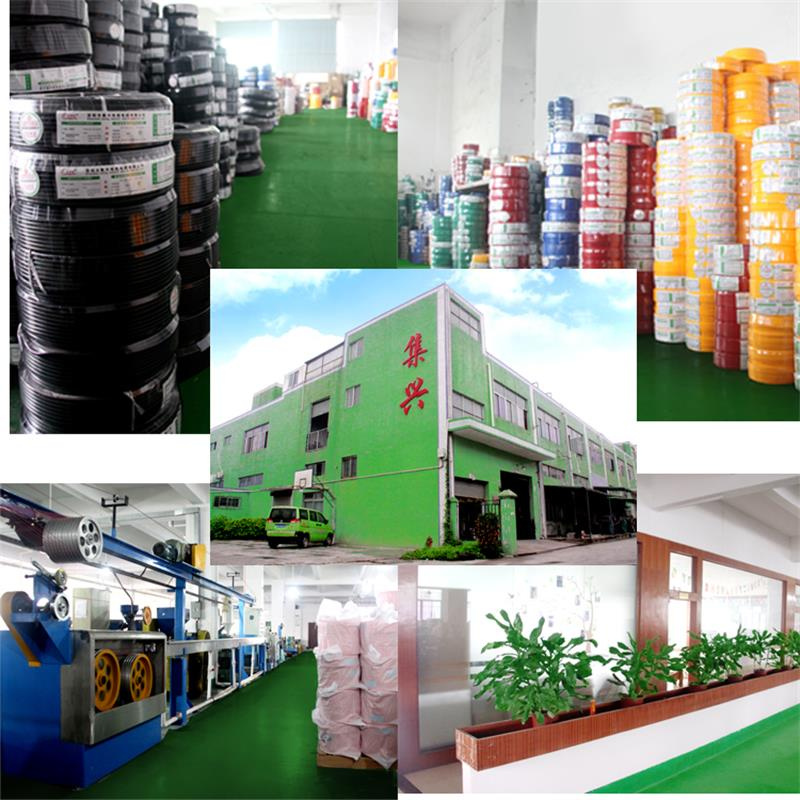

Our factory:

Our customers:

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.

Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.

Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
