| Prod Model: |
AS-ABC-020 |
| Insulation Thickness: |
1.52mm |
| Drume Size: |
1100*1100 |
| Color: |
Black Smoke |
| Standard: |
ASTM B232 |
| Carbon Black: |
2% |
| Phase Conductor: |
1350 AAC/XLPE |
| Application: |
Overhead |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Sheath Material: |
None |
| Brand: |
Asian Sun |
Product Description
Our Company

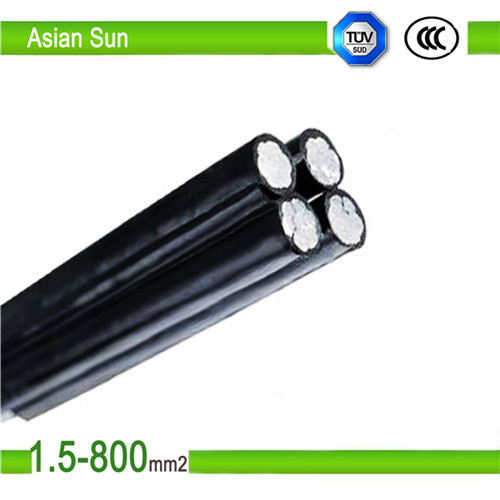

XLPE Insulated ABC High Voltage Power Cable
Luoyang Asian Sun Industrial Group Co., Ltd was established in 2010 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.
Product Description
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specification
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
| SPECIFICATIONS FOR ABC CABLE | | | | | | |
Code
Name | Size | PHASE CONDUCTOR | NEUTRAL CONDUCTOR | Appox. |
| Stran-ding | Ins.
Thick. | Ins.
O.D. | Stranding | O.D. | Rated Strength | Cable
Weight |
| No./mm |
| | AWG | No./mm | mm | mm | Al. | Steel | mm | kg | Kg/km |
| Shepherd | 6 | 7/1.55 | 1.44 | 6.93 | 6/1.68 | 1.68 | 5.04 | 539.77 | 111.6 |
| Terrier | 4 | 7/1.96 | 1.14 | 8.16 | 6/2.12 | 2.12 | 6.38 | 843.68 | 169.63 |
| Chow | 2 | 7/2.47 | 1.14 | 9.69 | 6/2.67 | 2.67 | 8.01 | 1292.74 | 261.89 |
| Bull | 1/0 | 19/1.89 | 1.52 | 11.73 | 6/3.37 | 3.37 | 10.11 | 1986.74 | 416. |
Our Service
1) Inquiries are typically answered within 12 hours and OEM is welcome.
2) We have experienced QC to control the quality of different kind of cables.
3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4)We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.
5) Huge Inventory Allows Us To Ship Your Order Immediately
6)Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
7) We ship worldwide
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
