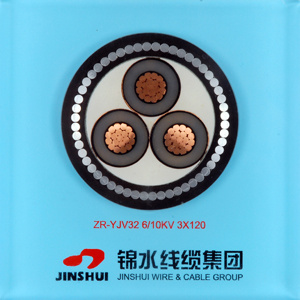

XLPE Insulated Electric Power Cable
| Price: |
US $ 1-3/Meter |
| Trade Terms: |
CIF |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
yjv |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging: |
Wooden Drum |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CE |
Product Description
For XLPE insulated power cable, either chemical method or physical method is employer to transform the molecular structure of PE form chain into three-dimensional network, i. e. Thermoplastic PE is transformer into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent property are still retained.
The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which is higher than that of paper, PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Standard
The product is manufactured according to the standard of GB12706 or IEC, BS, DIN and ICEA upon request.
Applications
The product is suitable for use in power distribution lines or fixed installations with rated power frequency voltage up to and including 0.6/1kV
Operating characteristics
| 1, Rated power-frequency voltage Uo/U: 0.6/1kV |
| 2, Max. Permissible continuous operating temperature of conductor: 90 |
| 3, Max. Short-circuit temperature of the conductor shall not exceed 250. (5s maximum duration ). |
| 4, The ambient temperature under installation should not below 0 |
| 5, The bending radius of a cable should not less than 15 times of the cable diameter. |
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of Uo/U (Um)KV.
Where:
Uo-The rated power-frequency voltage between conductor and earth or metallic scieen, for which the cable designed;
U-The rated power-frequency voltage between conductors, for which the cable designed;
Um-The maximum value of the highest system voltagefor which the equipment may be used.
Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.
Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.
Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.
With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.
With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
