XLPE Insulated Halogen-Free Low-Smoke Shipboard Medium Voltage Power Cable
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
shipboard cable |
| Conductor: |
Tinner Copper |
| Insulated: |
Epr or XLPE |
| Armored: |
Tinned Copper Wire Braid(Galvanized Steel Wire Bra |
| Outer Sheath: |
PVC/Pcp/Po(Shf1, Shf2) |
| Cores: |
1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37 |
| Areas: |
0.75mm2-300mm2 |
| Certificate: |
CCS, Lr, ABS, Dnv, BV, Gl, Nk, Kr, Rina, 90 |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Certification: |
UL |
| Model: |
Epr or XLPE |
| Sheath Material: |
PVC/Pcp/Po(Shf1, Shf2) |
| Insulation Material: |
Epr or XLPE |
| Application: |
The Marine |
| Brand: |
Rne Da |
Product Description
TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

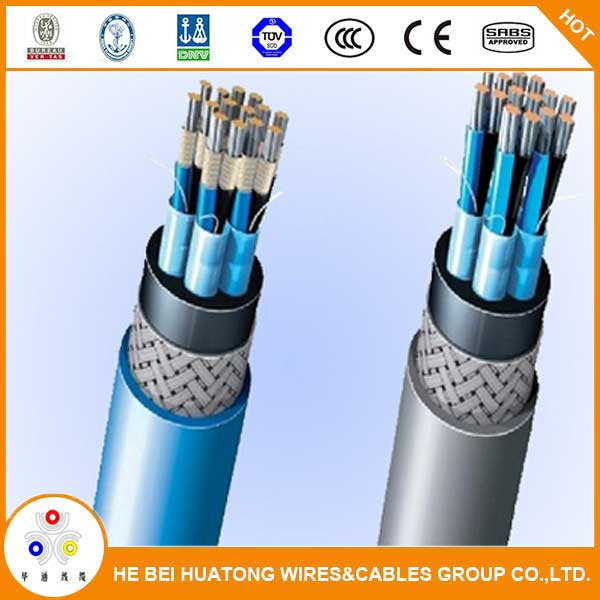

XLPE insulated halogen-free low-smoke shipboard medium voltage power cable
1 Rating voltage: 0.6/1KV 1.8/3kV 3.6/6KV 6/10KV 8.7/15KV 2 Specification &standardsIEC60228 IEC60092-350 IEC60092-359
IEC60092 351 IEC60332-1 IEC60332-3 Cat.A
IEC61034-2 IEC 60754-2 3A 3 Construction:Conductor:Tinned Copper
Insulated:EPR or XLPE
Filler
Tape
Inner sheathe:PCP/CSP/PVC/PO(SHF1,SHF2)
Armored:tinned copper wire braid(Galvanized steel wire braid)
Outer Sheath:PVC/PCP/PO(SHF1,SHF2)
Flammability Features:
DA:Single cable flame retardant
SA:Bunched cable flame retardant
SC:Bunched cable flame retardant,halogen-free,low-smoke,low-toxicity
4 Specifications:Cores:1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37
NominalCross-section Areas:0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,
35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2
Applicant:
The marine electrical cable is intended for power,lighting and control system of shipboard and off-shore building,and it is also available to metallurgical chemical works,power planted and mines etc.
Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,KR,RINA,90
The radius of bend for the installation of marine cables| Cable structure features | Over diameter of cable(D) | Minimum internal bending radius |
| Metal braided armored | Any value | 6D |
| Non-armored | D≤25 | 4D |
| D25 | 6D |

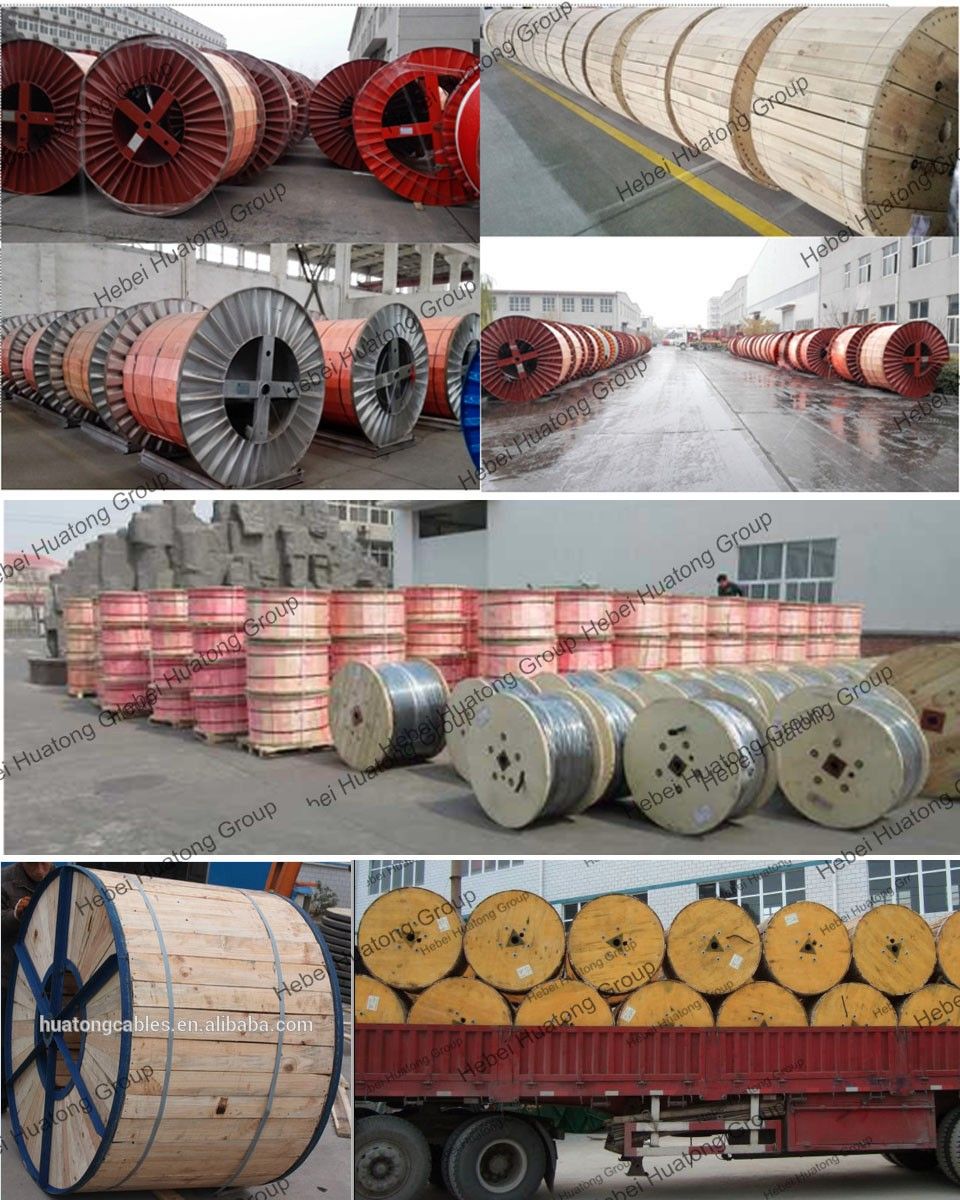

Packing: Standard export drum,500meters/rdum,1000meters/drum or as your requirment.
Certificate:We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
Our factory:

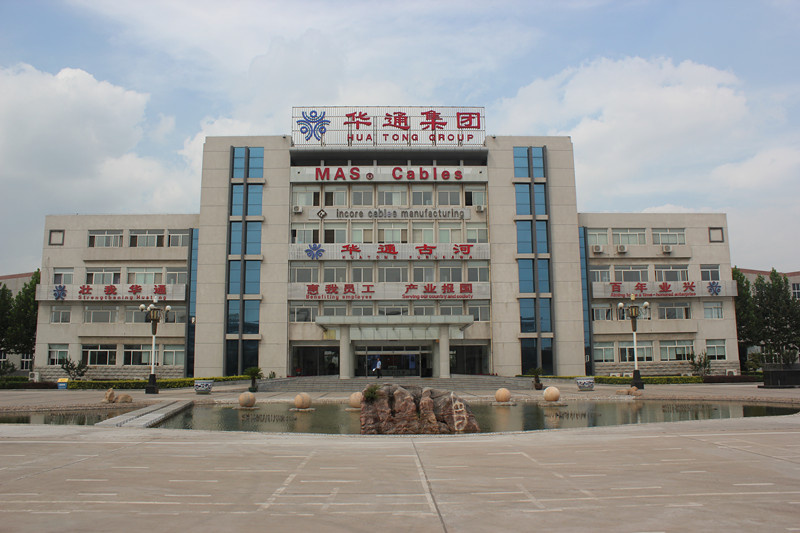

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
Our Service:1.How many year have our factory producing power cable?Our factory produce power cable for 22 years.2 Hong Long time the customer can get the new price after get your inquiry? Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.3.Which port our factory is near to? Tianjin port4.Which payment term do we accept? T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.5.What about the package for our power cable? It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.6.How long meter power cable for one wooden drum? This is according to power cable's diameter and customer's requirments.7.How about our delivery time? According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.8.Do we provide sample for free? Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
