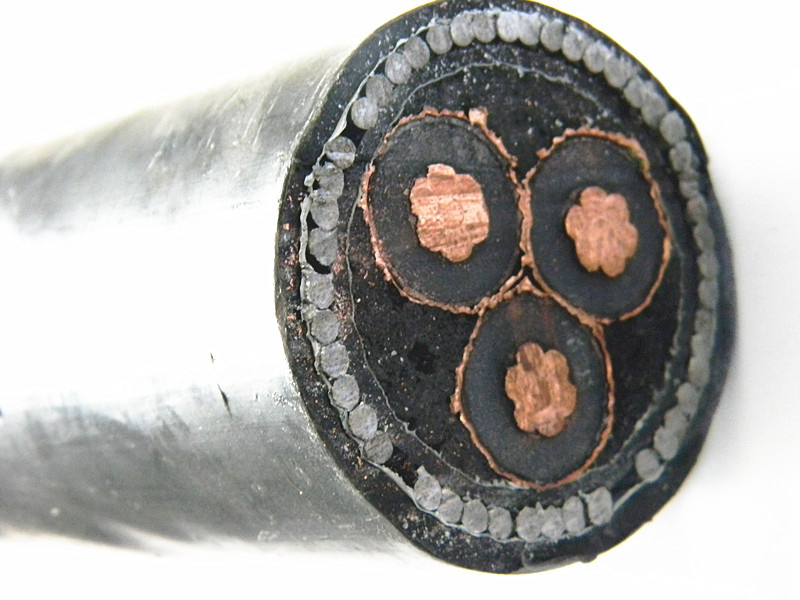

XLPE Insulated Medium Voltage Cable

Prod Model:	YJV YJV32 JYV22 YJLV-B2-07
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	XLPE
Certification:	CCC
Conductor Material:	Copper or Aluminum
Sheath Material:	XLPE/PVC/PE
Range Of Application:	Industry
Brand:	Yifang

Product Description

Wholesale Power Electric Cable With XLPE Insulated
Technical Parameters of our Power Cable
1). Standard: IEC60502; GB/T12706;IEC 60840;IEC62067;GB/T 11017;GB/Z 18890

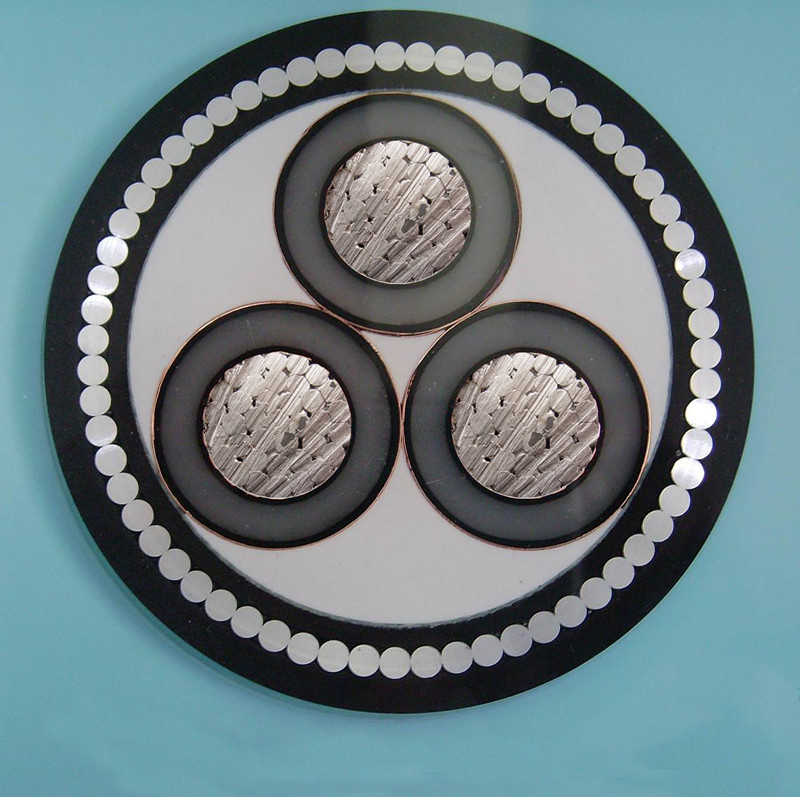

2). Detailed description or construction:
    * Conductor: compacted or uncompacted copper or aluminium
    * Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
    * Filler: Polypropylene filament with lapped binding tape
    * Binder: Binding tape
    * Inner sheath: Polyvinyl chloride (PVC)
    * Armour: Galvanized steel wire armored (SWA) or steel tape armored (STA)
    *Sheath: Polyvinyl chloride (PVC)
3). The rated voltages U0/U(Um) of the cables considered in this standard are as follows:
    U0/U(Um) =0.6/1(1.2)-3.6/6(7.2)-6/10(12)-6.35/11(12)-8.7/15(17.5)-12/20(24)-12.7/22(24)-18/30(36)-19/33(36)-26/35(40.5)KV
4). Voltage:
     0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV,6.35/11kV, 8.7/15kV, 12/20kV,12.7/22kV, 18/30kV,19/33kV,26/35kV
    In the voltage designation of cables U0/U(Um):
        * U0 is the rated power frequency voltage between conductor and earth or metallic screen for which the cable is designed;
        * U is the rated power frequency voltage between conductors for which the cable is designed;
        * Um is the maximum value of the "highest system voltage" for which the equipment maybe used.
5). Application:
     For laying indoors, in tunnel or cable trench with large difference of level able to bear external mechanical forces.
6). Marking: According to the customers' requirements
7). Nominal cross-sectional areas:
1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2


Type	Designation	Applications
VV YJV VLV YJLV	Copper conductor, PVC ,XLPE insulated, PVC sheathed power cable Aluminium conductor, PVC ,XLPE  insulated, PVC sheathed power cable	For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct.
VY YJY VLY YJLY	Copper conductor, PVC,XLPE insulated, PE sheathed power cable Aluminium conductor, PVC ,XLPE insulated, PE sheathed power cable
VV22 YJV22 VLV22 YJLV22	Copper conductor, PVC ,XLPE insulated, steel tape armoured, PVC sheathed power cable Aluminium conductor, PVC ,XLPE  insulated, steel tape armoured, PVC sheathed power cable	For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
VV23 YJV23 VLV23 YJLV23	Copper conductor, PVC ,XLPE insulated, steel tape armoured, PE sheathed power cable Aluminium conductor, PVC ,XLPE insulated, steel tape armoured, PE sheathed power cable
VV32 YJV32 VLV32 YJLV32	Copper conductor, PVC ,XLPE insulated, steel wire armoured, PVC sheathed power cable Aluminium conductor, PVC ,XLPE insulated, steel wire armoured, PVC sheathed power cable	For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
VV33 YJV33 VLV33 YJLV33	Copper conductor, PVC ,XLPE insulated, steel wire armoured, PE sheathed power cable Aluminium conductor, PVC ,XLPE insulated, steel wire armoured, PE sheathed power cable
Note: The armoured single core cables is only used for D.C. system. As for A.C. system, non-magnetic armour material should be applied.
