XLPE Insulated Muilti Core Power Cable and Electrical Cable
| Price: |
US $ 0.125/Piece |
| Min Order: |
3000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
power cable |
| Color: |
Requirement |
| Conductor: |
Annealed Copper/CCA/Al |
| Core: |
Multi Core |
| Application: |
Construction |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Yongkuntai |
Product Description
1. Standards:IEC60502-2005 or GB/T12706-2008
2. Description:Copper conductor, XLPE insulated PVC sheathed power cable
3. Conductor:Cooper
4. Insulation/sheath: XLPE/PVC
5. Voltage:0.6/1kV
6. Type ,description and application
1. Standards:IEC60502-2005 or GB/T12706-2008
2. Description:Copper conductor, XLPE insulated PVC sheathed power cable
3. Conductor:Cooper
4. Insulation/sheath: XLPE/PVC
5. Voltage:0.6/1kV
6. Type ,description and application
| Type | Description | | Application |
YJV(YJY)
YJLV(YJLY) |
Copper (Aluminum) conductor , XLPE insulated PVC sheathed power cable. |
| For laying indoors, in tunnels, in ducts. Able to bear external mechanical force but not lager pulling forces. Single core cables are impermissible to be laid in magnetic ducts. |
YJV22(YJY22)
YJLV22(YJLY22) |
Copper (Aluminum) conductor , XLPE insulated PVC sheathed steel tape armoured power cable. |
| For laying indoors, in tunnels, in ducts and underground. Able to bear external mechanical force but not lager pulling forces. Impermissible to use single core cable in A.C circuit. |
7. Specification| Type | No. of cores | Normal cross-sectional area(mm2) |
| YJV YJLV | 1 | 1.5-630 |
| YJV YJV22 YJLV YJLV22 | 2-5 | 1.5-400 |
| YJV YJV22 YJLV YJLV22 | 3+1 | 1.5-400 |
| YJV YJV22 YJLV YJLV22 | 3+2 | 1.5-400 |
| YJV YJV22 YJLV YJLV22 | 4+1 | 1.5-400 |
10. Operation characteristic
Operation temperature
The maximum operating temperature of cores shall not exceed 90ºC when the cable is used for long period. The temperature of cores shall not exceed 250ºC at short circuit for 5 seconds. The laying temperature should not below 0ºC during installation.
Permissible bending radius
The permissible bending radius for cables shall be with the regulation as below:
For single-core no armoured cable: R>20(D+d)±5% For multi-core:R>15(D+d)±5%
Armoured cable : R>15(D+d)±5% For multi-core:R>12(D+d)±5%
Where: R-bending radius (mm) D-overall diameter of the cable (mm)
d-diameter of conductor(mm)
The single core cable of using in AC circuit shall be without armour or with steel wire and shall not be laid magnetic ducts.

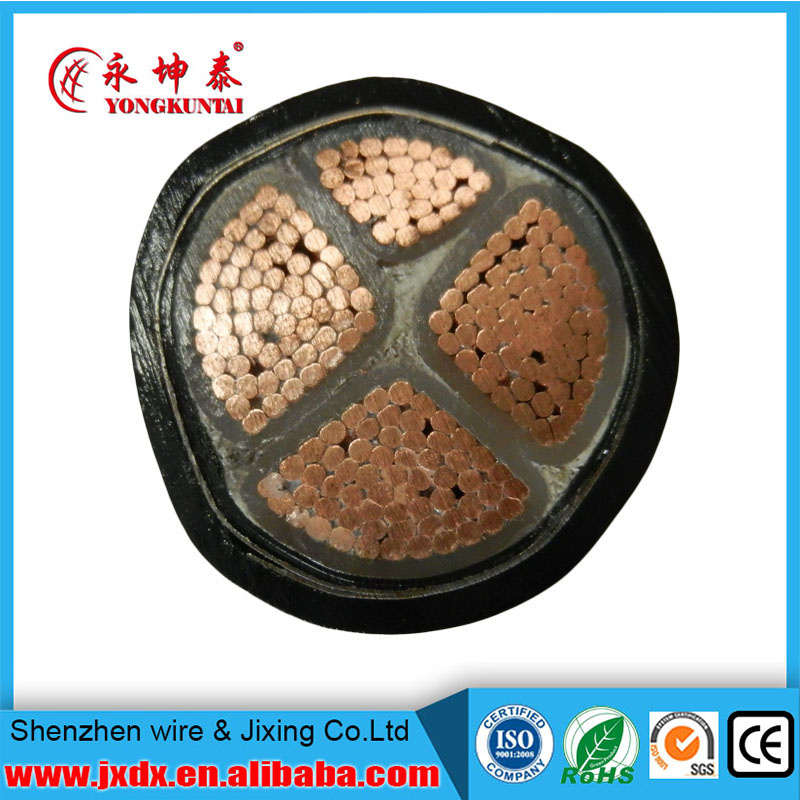

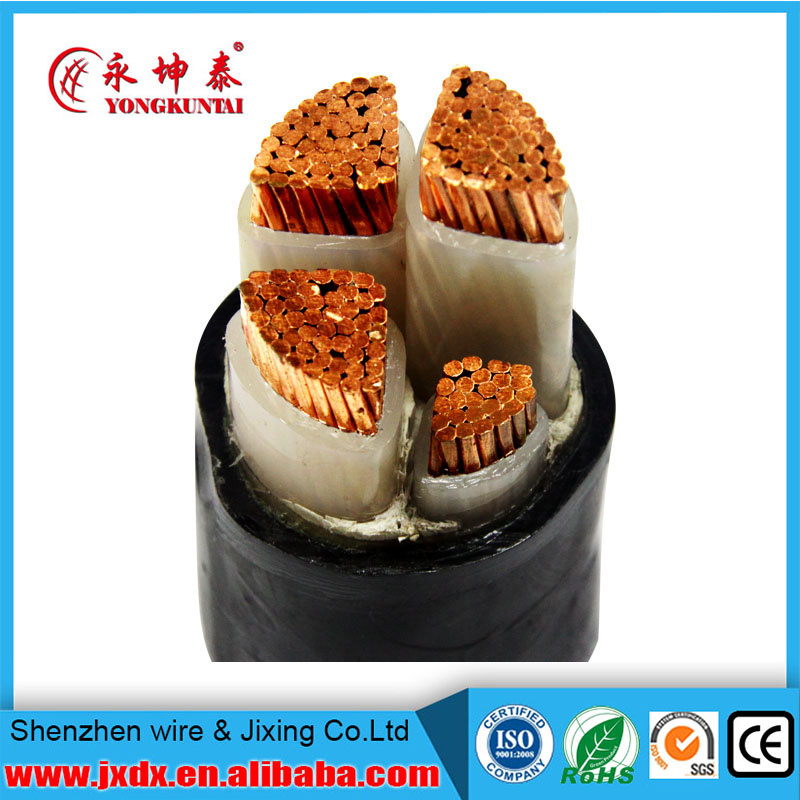

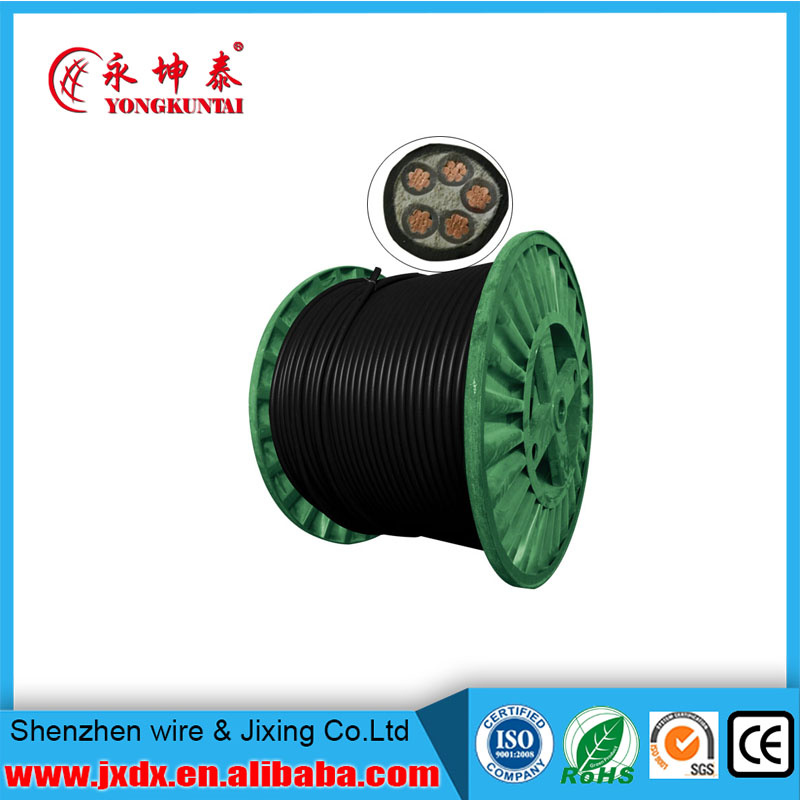

11. Photoes of cable
These are conform to international quality standards.
Customers' design and logo are welcome.
OEM accepted.
Well and high quality control.
Reasonable price.
Short Delivery Time.
Guarantees
1) Factory Direct and on-time shipment.
2) Finest available raw materials, Strict quality control system
3) Customized sizes, OEM are accepted!
4) Goods are sold with rerun or refund guarantee due to quality issue!
Shipping terms
1) We accept terms of delivery EXW, FOB, CFR, CIF, etc.
2) Sample time: 3-5 days..
3) Production time: 7-30 days (Depends on the Qty) upon advanced payment received.
4) Packing: export standard cartons, drums or customized as customers' requests.
Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.
Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.
Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
