XLPE Insulated PE Sheathed Water-Proof Power Cable
Price: |
US $ 50/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T |
Prod Model: |
YJAY/YJLAY |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Voltage Range: |
64/110kv |
Core Number: |
1 |
Conductor Material: |
Al. or Cu. |
Cross Section Area: |
240-2500mm2 |
Application: |
Computer |
Voltage: |
High Voltage Cable |
Current: |
DC & AC |
Insulation Material: |
XLPE |
Certification: |
IEC |
Model: |
Yjay |
Sheath Material: |
PE |
Brand: |
Qiangling |
Product Description

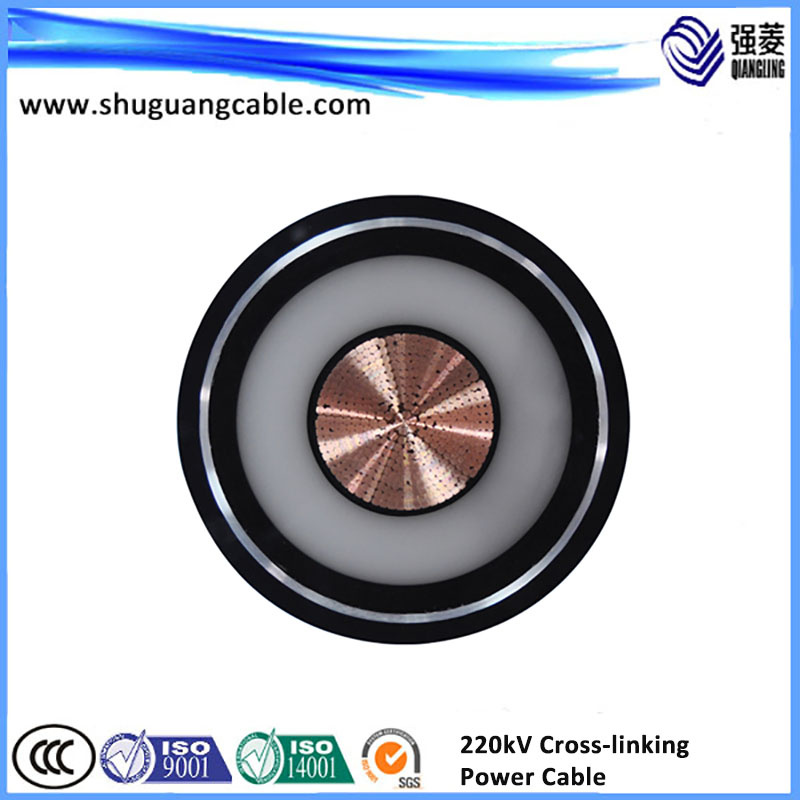

High Voltage XLPE insulated Power Cable
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting, anti-chemical corrosion, and it is simple construction, using convenient and higher operation of long term temperature. It can be laid with no drop restriction.
The flame-retardant and non-flame retardant XLPE cable can be manufactured with three technologies (peroxide, silane and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free and non-smoke non-halogenated and three classes of A, B, C.
1. Conductors: Copper or aluminum.
2. Voltage rating: 64/110kv
4. PVC or PE sheathed.
5. Number of cable cores: One core (Single core)
6. StandardsStandard applied to 110KV XLPE-insulated cables:
gb/t11017-2002 or equivalent with IEC60840:1999
This kind of cables cab be applicable in tunnel or cable trough and wet location, with better water-proof property.
Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".
With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.
We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.
With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.
"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
