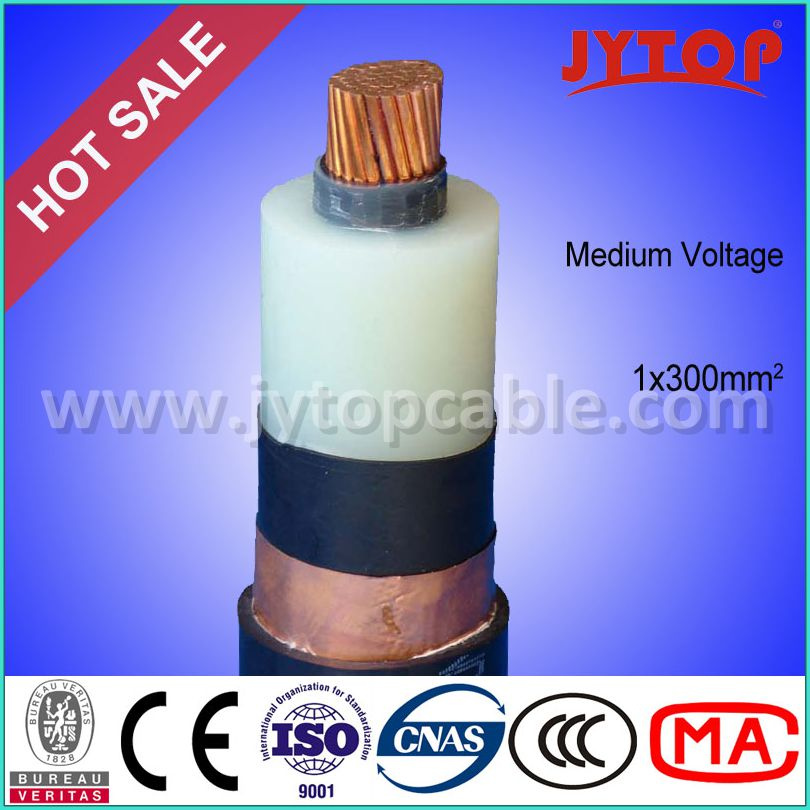

XLPE Insulated Power Cable with Single Core

Name: XLPE Insulated Power Cable with Single Core
Brand: all-electronics-online.com
SKU: 687941892
Availability: InStock
Rating: 4.9 (40 reviews)

Price:	US $ 1.6-8.8/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
XLPE Cable 1X25sq.Mm:	Max DC Resistance @ 20 Degree 0.727 Ohm/Km
XLPE Cable 1X35sq.Mm:	Max DC Resistance @ 20 Degree 0.524 Ohm/Km
XLPE Cable 1X185sq.Mm:	Max DC Resistance @ 20 Degree 0.0991 Ohm/Km
XLPE Cable 1X240sq.Mm:	Max DC Resistance @ 20 Degree 0.0754 Ohm/Km
XLPE Cable 1X300sq.Mm:	Max DC Resistance @ 20 Degree 0.0601 Ohm/Km
XLPE Cable 1X50sq.Mm:	Max DC Resistance @ 20 Degree 0.387 Ohm/Km
XLPE Cable 1X70sq.Mm:	Max DC Resistance @ 20 Degree 0.268 Ohm/Km
XLPE Cable 1X95sq.Mm:	Max DC Resistance @ 20 Degree 0.193 Ohm/Km
XLPE Cable 1X120sq.Mm:	Max DC Resistance @ 20 Degree 0.153 Ohm/Km
Application:	Power Station
Current:	DC Cable
Insulation Material:	XLPE
Certification:	VDE
Voltage:	1kv
Brand:	Jytop

Product Description

LV Single Core XLPE Insulated Power Cable 0.6/1kv XLPE Insulated Electric Cable

1KV, COPPER CONDUCTOR, XLPE INSULATED AND PVC SHEATHED CABLE

Main technical data of 0.6/1KV, Single core, Copper conductor, XLPE insulated and PVC or PE sheath cables CABLE CONSTRUCTION: 0.6/1KV CU/XLPE/PVC or PE

Note: RE= round conductor RM = stranded conductor SM=sectional conductor

Cable size	Conductor type	Nominal thickness of XLPE insulation(mm)	Nominal thickness of PVC or PE sheath(mm)	Approx. cable overall diameter (mm)	Max. D.C resistance @ 20 0 C (Ω/km)
1x1.5mm 2	RE or RM	0.7	1.4	5.6	12.1
1x2.5mm 2	RE or RM	0.7	1.4	6.0	7.41
1x4mm 2	RE or RM	0.7	1.4	6.5	4.61
1x6mm 2	RE or RM	0.7	1.4	7.0	3.08
1x10mm 2	RM	0.7	1.4	8.3	1.83
1x16mm 2	RM	0.7	1.4	9.3	1.15
1x25mm 2	RM	0.9	1.4	11.1	0.727
1x35mm 2	RM	0.9	1.4	12.2	0.524
1x50mm 2	RM	1.0	1.4	13.7	0.387
1x70mm 2	RM	1.1	1.4	15.7	0.268
1x95mm 2	RM	1.1	1.5	17.8	0.193
1x120mm 2	RM	1.2	1.5	19.7	0.153
1x150mm 2	RM	1.4	1.6	21.8	0.124
1x185mm 2	RM	1.6	1.6	24.1	0.0991
1x240mm 2	RM	1.7	1.7	27.1	0.0754
1x300mm 2	RM	1.8	1.8	30.0	0.0601
1x400mm 2	RM	2.0	1.9	33.5	0.0470
1x500mm 2	RM	2.2	2.0	37.7	0.0366
1x630mm 2	RM	2.4	2.2	39.9	0.0283
1x800mm 2	RM	2.6	2.3	44.3	0.0221

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
