XLPE Insulated/PVC Sheathed/Coal Mining/Armored/Electric Power Cable

XLPE Insulated/PVC Sheathed/Coal Mining/Armored/Electric Power Cable
Price: US $ 10/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 100/Meter
Pay Type: L/C,T/T
Prod Model: MYJV, MYJV22, MYJV32, MYJV42
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Applied: Nt818.12
Core Number: 3,3+1,4
Cross Section: 1.5-300
Flame Retardant: Applied
Voltage: Low and Medium Voltage Cable
Insulation Material: XLPE
Current: AC Cable
Application: Power Transmission
Certification: IEC
Model: Myjv,Myjv22, Myjv32,Myjv42
Brand: Qiangling
Wire Core Material: Copper

Product Description

XLPE Insulated, PVC Sheathed, Steel Tape /Thin & Thick Steel Wire Armored Power cable for Coal Mining

1. Standard Applied
PVC insulated flame retardant power cable applies to MT818.12, and XLPE insulated flame retardant power cable applies to MT818.13.

2. Application Scope
The product are applied for transmission and distribution electricity in power system with rated voltage up to 0.6/1kV -8.7/10kV and power supply line in need of flame retardant condition in coal mining area.

3. Type & Description
TypeDescription
MVVPVC insulated and sheathed power cable for coal mining
MVV22PVC insulated, steel tape armored, PVC sheathed power cable for coal mining

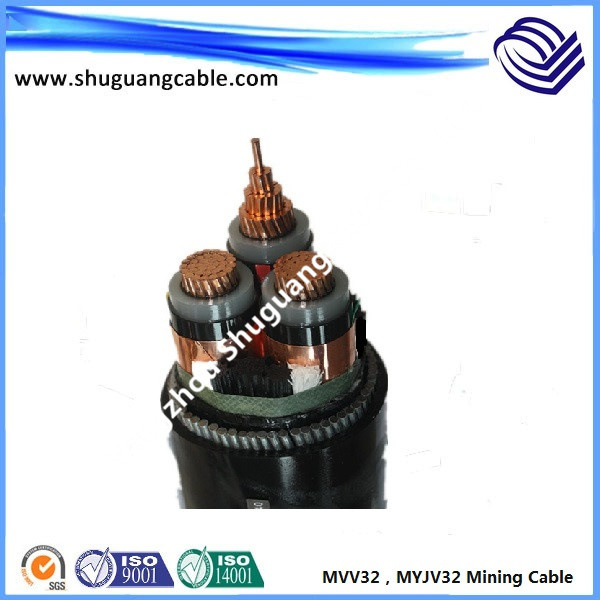

MVV32PVC insulated, thin steel wire armored, PVC sheathed power cable for coal mining
MVV42PVC insulated, thick steel wire armored, PVC sheathed power cable for coal mining
MYJVXLPE insulated and sheathed power cable for coal mining
MYJ22XLPE insulated, steel tape armored, PVC sheathed power cable for coal mining
MYJ32XLPE insulated, thin steel wire armored, PVC sheathed power cable for coal mining
MYJ42XLPE insulated, thick steel wire armored, PVC sheathed power cable for coal mining

4. Main Technical Data
TypeCore No.Rated Voltage
0.6/1kV1.8/3kV3.6/6,6/6,6/10kV8.7/10kV
Cross Section(mm2)
MVV,MYJV31.5-30010-30025-30025-300
MVV22,MYJV2232.5-30010-30025-30025-300
MVV32,MYJV3234-30010-30025-30025-300
MVV42,MYJV4234-30010-30025-30025-300
MVV3+14-30010-300

MVV223+14-30010-300

MVV44-1854-185

MVV2244-1854-185


5. Operation Conditio
1) Max. rated temperature of cable conductor:
PVC insulation 70 ºC, XLPE insulation 90 º

2) Max. conductor temperature in short-circuit(Max. lasting 5s):
PVC insulation 160 ºC, XLPE insulation 250 º

3) When laying cables, Min. bending diameter of single-core cable is 20 times overall radius of cable and min. bending radius of multi-core is 15 times overall diameter of cable.





Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".

With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.

We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.

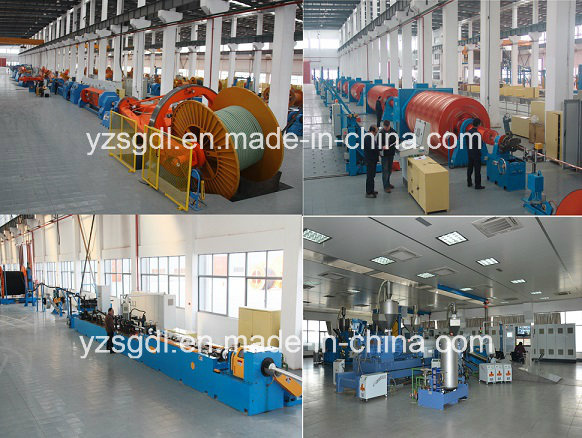

With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.

"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
