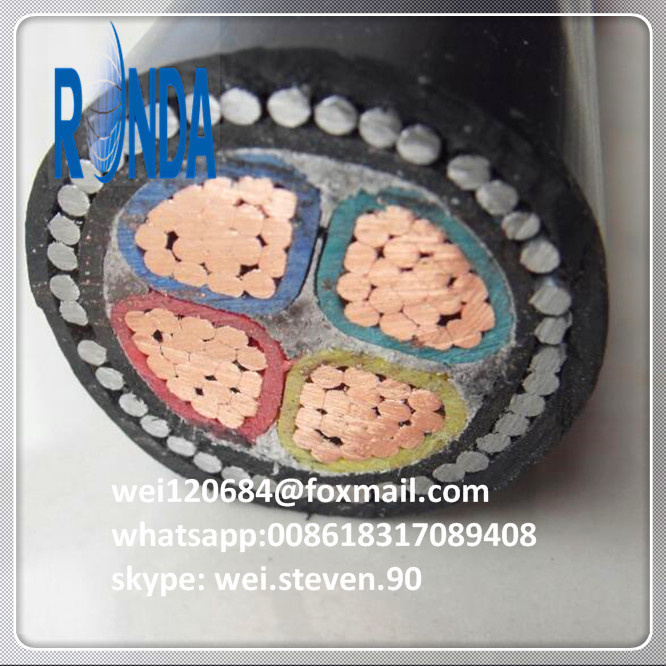

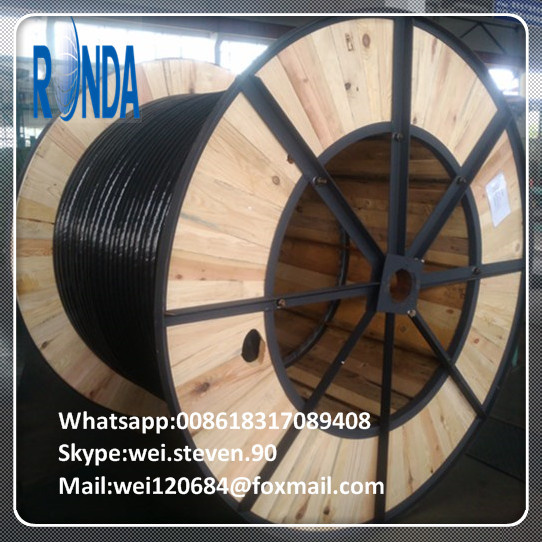

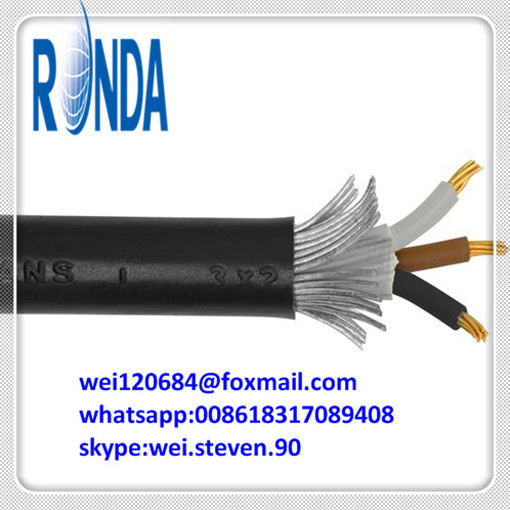

XLPE Insulated Stranded Underground Copper Power Cable

Name: XLPE Insulated Stranded Underground Copper Power Cable
Brand: all-electronics-online.com
SKU: 808691295
Availability: InStock
Rating: 4.5 (52 reviews)

Price:	US $ 0.1-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Conductor:	Annealed Copper
Application Standard:	IEC60228, IEC60502, IEC60331
Type:	Insulated
Conductor Type:	Stranded
Application:	Construction
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC
Range Of Application:	Power Supply
Brand:	Ronda

Product Description

Steve Wei Sales Manager

26KV 35KV XLPE Insulated PVC Sheathed Power Cable
1.Application

21/35kV XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.

Standards:
IEC60502-2

Cores:
1 Core or 3 Core

Conductor:
Cu or Aluminum

Insulation:
XLPE (Cross-Linked Polyethylene)

Armor:
non-armor, Galvanised steel tape armored, Galvanised round steel wire armored

Sheath:
PVC or PE

Sheath Color:
Black or Colors

Products Description:

-   XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
-   XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
-   XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
-   Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
-   Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
-   Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
    FR-Flame Retardant

Technical data
Temperature Range:
During Installation:-5 °C up to +70 °C
max. operating temp: +90 °C
at short circuit of max. 5 s:up to 250 °C

For More Information:

cell: 0086 183 1708 9408

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
