| Prod Model: |
IEC60502 |
| Volatge: |
600/1000V |
| Insulation Color: |
Red, Black, Green, Ect. |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Underground |
| Brand: |
Rmjt |
Product Description

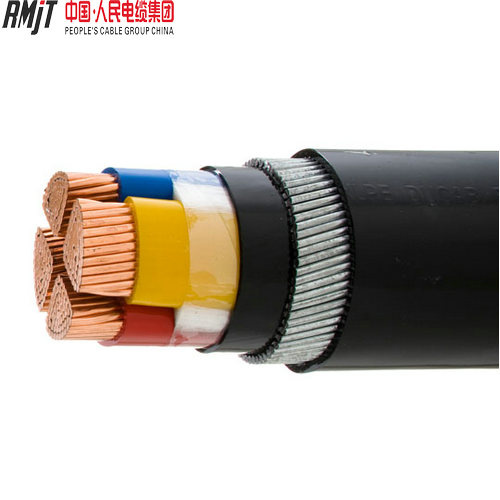

Underground Cable SWA Armoured Cable YJLV32 XLPE Power Cable
1.Application:
PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
Rated Voltage: 0.6/1kV.
Conductor material: copper or aluminum.
Qty of cores: single core, two cores, three cores, four cores (3+1 cores), five cores (3+2 cores).
Cable types: non-armored, double steel tape armored and steel wire armored cables
| Cable Type Description |
Cu(Al)Conductor PVC Insulated PVC Sheathed Power Cable
Cu(Al)Conductor PVC Insulated PVC Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated PE Sheathed Power Cable
Cu(Al)Conductor PVC Insulated PE Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
Cu(Al)Conductor PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated Steel Tape Armored PE Sheathed Power Cable
Cu(Al)Conductor PVC Insulated Steel Tape Armored PE Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated Fine Steel Wire Armored PVC Sheathed Power Cable
Cu(Al)Conductor PVC Insulated Fine Steel Wire Armored PVC Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated Fine Steel Wire Armored PE Sheathed Power Cable
Cu(Al)Conductor PVC Insulated Fine Steel Wire Armored PE Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated Thick Steel Wire Armored PVC Sheathed Power Cable
Cu(Al)Conductor PVC Insulated Thick Steel Wire Armored PVC Sheathed Fire Resistant Cable |
Cu(Al)Conductor PVC Insulated Thick Steel Wire Armored PE Sheathed Power Cable
Cu(Al)Conductor PVC Insulated Thick Steel Wire Armored PE Sheathed Fire Resistant Cable |
2.Specification
1)600/1000V, Single Core, Circular Compacted Al or Cu/PVC/PVC Unarmored or Armored Power Cable
| Cross Section of Conductor | No. of Wires | Thickness of Insulation | Unarmored | Armored |
| | | | Thickness of Sheath | Overall Dia. | Approx.Net Weight | Thickness of Bedding | Thickness of Al Tape | Thickness of Sheath | Overall Dia. | Approx.Net Weight |
| | | | | | Al Conductor | Cu Conductor | | | | | Al Conductor | Cu Conductor |
| mm2 | - | mm | mm | mm | kg/km | kg/km | mm | mm | mm | mm | kg/km | kg/km |
| 1.5 | 1 | 0.8 | 1.4 | 5.8 | - | 51 | - | - | - | - | - | - |
| 2.5 | 1 | 0.8 | 1.4 | 6.2 | - | 64 | - | - | - | - | - | - |
| 4 | 1 | 1 | 1.4 | 7.1 | - | 88 | - | - | - | - | - | - |
| 6 | 7 | 1 | 1.4 | 7.8 | 78 | 114 | - | - | - | - | - | - |
| 10 | 7 | 1 | 1.4 | 8.6 | 96 | 159 | 1 | 0.5 | 1.8 | 13.4 | 234 | 295 |
| 16 | 7 | 1 | 1.4 | 9.6 | 123 | 222 | 1 | 0.5 | 1.8 | 14.4 | 274 | 370 |
| 25 | 7 | 1.2 | 1.4 | 11.2 | 172 | 328 | 1 | 0.5 | 1.8 | 16 | 344 | 496 |
| 35 | 7 | 1.2 | 1.4 | 12.2 | 209 | 428 | 1 | 0.5 | 1.8 | 17 | 393 | 606 |
| 50 | 19 | 1.4 | 1.4 | 13.9 | 271 | 565 | 1 | 0.5 | 1.8 | 18.7 | 478 | 764 |
| 70 | 19 | 1.4 | 1.5 | 15.9 | 356 | 818 | 1 | 0.5 | 1.8 | 20.5 | 582 | 1020 |
| 95 | 19 | 1.6 | 1.5 | 18 | 471 | 1041 | 1 | 0.5 | 1.8 | 22.6 | 717 | 1291 |
| 120 | 37 | 1.6 | 1.6 | 19.6 | 563 | 1307 | 1 | 0.5 | 1.8 | 24 | 822 | 1545 |
| 150 | 37 | 1.8 | 1.6 | 21.3 | 684 | 1592 | 1 | 0.5 | 1.8 | 25.4 | 952 | 1857 |
| 185 | 37 | 2 | 1.7 | 23.9 | 840 | 1985 | 1 | 0.5 | 1.8 | 27.9 | 1136 | 2236 |
| 240 | 61 | 2.2 | 1.8 | 27 | 1071 | 2533 | 1 | 0.5 | 1.9 | 31 | 1404 | 2877 |
| 300 | 61 | 2.4 | 1.9 | 29.6 | 1317 | 3162 | 1.2 | 0.5 | 2.1 | 34.3 | 1722 | 3551 |
| 400 | 61 | 2.6 | 2 | 33.2 | 1666 | 4120 | 1.2 | 0.5 | 2.2 | 37.6 | 2114 | 4488 |
| 500 | 61 | 2.8 | 2.2 | 37.5 | 2089 | 5163 | 1.2 | 0.5 | 2.3 | 42.1 | 2592 | 5683 |
| 630 | 61 | 2.8 | 2.3 | 41.2 | 2581 | 6447 | 1.4 | 0.5 | 2.4 | 46.3 | 3184 | 7060 |
3.Production process:
power cable conductor producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
4.Package
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
5.About us:
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
6.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
