XLPE Insulation Copper Armoured Power Cable

Name: XLPE Insulation Copper Armoured Power Cable
Brand: all-electronics-online.com
SKU: 647409055
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 0.15-0.2/Meter
Trade Terms:	By sea
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV22
Factory:	Huizhou, Dongguan, Shenzhen
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

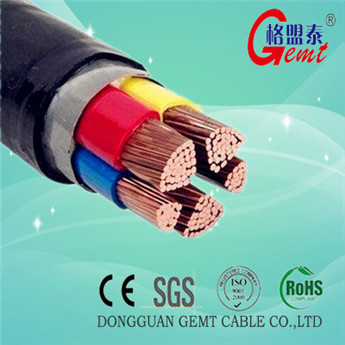

Product name:XLPE Insulation Copper Armoured Power Cable

1. Specifications

0.6/1KV Armoured Power Cable:
1)Number: 2,3,4.3+1,etc
2)Size:1.5mm~250mm
3)ISO9001 Certificate
4)Standard:IEC60502

2. Packaging & Delivery

Packing Details: 1)100m/drum, 500m/drum
2)Wooden/Iron Drum
Delivery Details: 12 days after receipt of the downpayment.

3. Description:
The cable is used to transmit power on the power transmission and distribution line of A. C. 50Hz, rated voltage 35kV or lower. In comparison with PVC insulation cable, it boats not only excellent electric character, mechanical character, heat and aging-resistant character, environmental stress-resistant character and chemical corrosion-resistant character, but simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working(90degrees)as well.

Executive standard:
As section in GB12706.1-12706.4-2002 or IEC60502-1997

4. Working Conditions:
1. Environment temperature should be no lower than 0degress for laying the cable, otherwise the cable should be preheated.
2. The minimum cable bending radius is stipulated as follows:
Single core: 20(d+D) 5%; 3cores: 15(d+D) Plus or minus 5%; (D for actual cable outer diameter, d for that of conductor)

The hightest rated temperature of the conductor is 90degrees, no high than 250degrees in time oh short circuit( lasting no longer than 5seconds)

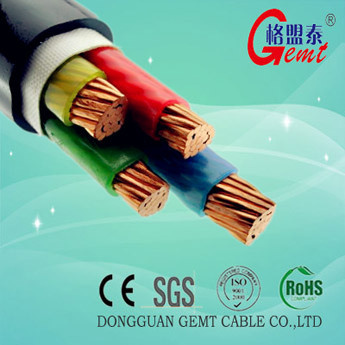

More Photos to reference:

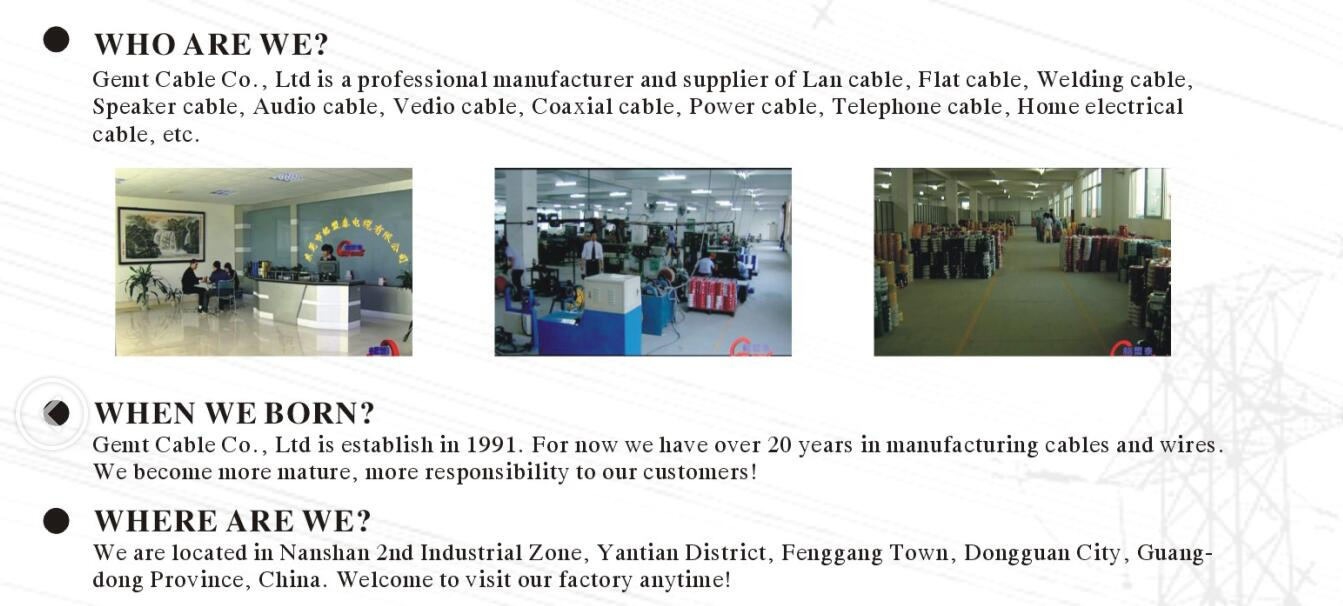

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
