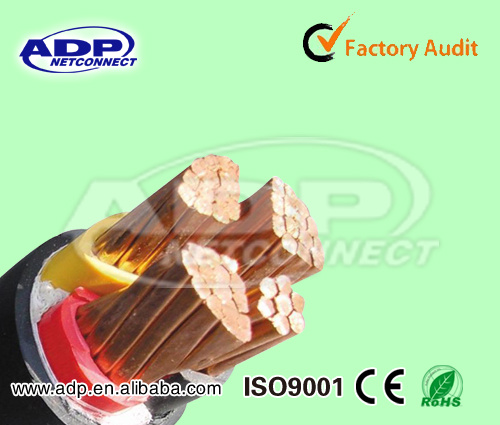

XLPE /PVC (Cross-linked polyethylene) Insulated Electric Power Cable

Prod Model:	Power Cable
Applied Standard:	GB/T 12706-2008, IEC 60502-2005
Voltage Range:	0.6/1kv
Armor Material:	Steel Tape
Flame Retardant:	Available, as Per Customer′s Requirement
Cross Section:	1.5-800mm2
Core Number:	1-5, 3+1, 3+2, 4+1
Length And Packing:	1000m/Drum
Application:	Telecommunication
Voltage:	High Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	RoHS

Product Description

PVC/XLPE INSULATION POWER CABLE
1.     Applicable Standard:
GB/T 12706-2008, IEC 60502-2005

2.     Product Description:
For XLPE insulated power cable, either chemical method or physical method had been employed to transform the molecular of PE from liner structure into three-dimensional network structure, i.e. thermoplastic PE and been transformed into thermosetting XLPE. After cross-linking, the mechanical performance, heating aging property and ambient stress resistance have been greatly improved, while its excellent electrical properties are still maintained.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, hot water and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non halogen and three classes of A, B, C.

Maximum rated temperature of cable conductor is 90ºC
Maximum short-circuit temperature of cable conductor ≤ 250ºC
The temperature when laying cable ≥ 0ºC, The minimum bending diameter of cable is stipulated as follow:

For single-core cable: 20(D+d)±5% in mm
For multi-core cable: 15(D+d)±5% in mm
Where: D is the actual outer diameter of the cable
d is the actual outer diameter of the conductor.

3.     Name & Application

Type	Description	Application
VV	Copper ( Al) PVC insulation PVC sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV22	Copper (Al) steel tape armored PVC insulation / sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV32	Copper (Al) thin steel wire armored PVC insulation / sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
VV42	Copper (Al) thick steel wire armored PVC insulation / sheath power cable	Can be laid in indoor tunnels and pipelines, can't bear external mechanical force.
YJV	Copper ( Al) XLPE insulation PVC sheath power cable	Can be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil. Cable can't bear outer mechanical force, but can bear a certain traction force.
YJV22	Copper (Al) steel tape armored XLPE insulation PVC sheath power cable	Laid underground, cable be bear outer mechanical force, but should not bear a large traction force.
YJV32	Copper (Al) thin steel wire armored XLPE insulation PVC sheath power cable	Laid indoor, tunnel or mines. Cable can bear outer mechanical force and fairly large traction force.
YJV42	Copper (Al) thick steel wire armored XLPE insulation PVC sheath power cable	Can be laid in vertical section, indoor, tunnels or mines. Cable can bear outer mechanical force and very large traction force.

4.     Specification

Type		Voltage	Section	Core Number
VV	YJV	0.6/1kV	1.5-800mm2	1
VV22 VV32	YJV22 YJV32		2.5-400mm2
VV42	YJV42		10-400mm2
VV	YJV	0.6/1kV	1.5-400mm2	2
VV22 VV32	YJV22 YJV32		2.5-400mm2
VV42	YJV42		4-400mm2
VV	YJV	0.6/1kV	1.5-400mm2	3
VV22 VV32	YJV22 YJV32		2.5-400mm2
VV42	YJV42		4-400mm2
VV VV22	YJV	0.6/1kV	4-400mm2	4,3+1,5, 4+1, 3+2
VV32 VV42	YJV32 YJV42		4-400mm2

5.     Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional Suppliers

Name	Type	Origin	Application
35KV Cable production line	CCV	Maillefer Finland	Production of medium voltage insulation wire core
35KV Cable production line	CCV	TROESTER Germany	Production of medium voltage insulation wire core
110KV Cable production line	CCV	TROESTER Germany	Production of high voltage insulation wire core
500KV Cable production line	VCV	Maillefer Finland	Production of high voltage insulation wire core
500KV Cable production line	VCV	TROESTER Germany	Production of high voltage insulation wire core
35KV rubber cable  production line	CCV	TROESTER Germany	Production of medium voltage rubber cables
630 Frame type stranding machine	91 wires	Pourtier France	Production for blocks of large section conductor
3600 Drum-twister for milliken conductor	DPTC3600	Pourtier France	Production for blocks of large section conductor
High voltage cable out-sheath Product Line	Φ150+90	Germany (Shanghai) TROESTER Machinery Co., Ltd.	Production for EHV cable double sheath

Package:  Wooden Drum Package or Iron-wooden drum
