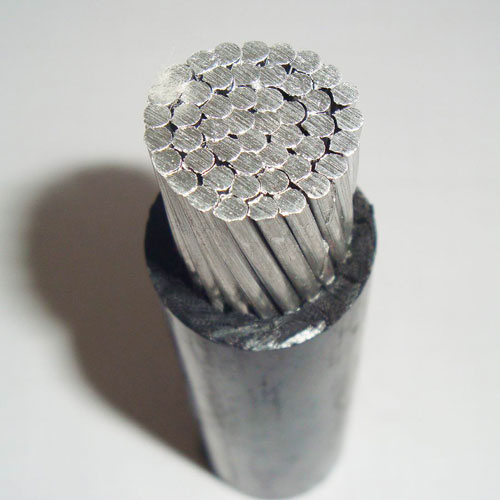

XLPE PVC Insulated Sheathed Power Cables
| Price: |
US $ 0.16/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
AL pvc power cable |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cores: |
1,2,3,45,5,3+1,3+2,4+1cores |
| Size: |
1.5mm2-800mm2 |
| Armour: |
Aluminum Wire Armour |
| Certificate: |
CE,TUV,Kema,SABS |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
TUV,Kema |
| Model: |
VV32 Vlv32 |
| Brand: |
Rne Da |
Product Description
XLPE Insulated PVC Sheathed Power Cables
Introduction:
Crosslinked polyethylene insulated power cable not only has excellent electric,mechanical properties,but also has powerful resistance againest chemical corrosion,heataging and environmental stress.Its structure is simple,too.
Our XLPE cable can be produced according to our Factory's specification which is equivalent to IEC60502.We can design and manufacture special XLPE cable according to the other standards,required by the customers.
Construction:
Number of cores: 1 .2.3.4.5,3+1,3+2,4+1 cores
Relative manufacturing standards: IEC60505, BS, DIN.
Packing: Wooden drum, steel wooden drum or as your request
Power Cable (structure)
-Conductor:
Solid or stranded copper or aluminum
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Circuit Identification:
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)
-Application: for laying indoor,tunnel,canal and underground.
Using features
1. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
2 . D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.
3 . The environment temperature should be no lower than 0 when lay. Otherwise it should be preheate d.
4.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be no smaller than 12 times of cable outer diameter.
5.. Working Frequency Voltage Test:.
For cable with Uo of 3.6kv~18kV: 3.5Uo/5min without puncture.
6 . Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
