XLPE/PVC/Swa/PVC Armored Power Cable 0.6/1kv

Name: XLPE/PVC/Swa/PVC Armored Power Cable 0.6/1kv
Brand: all-electronics-online.com
SKU: 685756842
Availability: InStock
Rating: 4.7 (109 reviews)

Price:	US $ 20-8000/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV32 (copper) YJLV32 (aluminum)
Voltage:	Low and Medium Voltage Cable
Insulation Material:	PVC
Current:	AC Cable
Application:	Car
Certification:	VDE

Product Description

XLPE/PVC/SWA/PVC Armored Power Cable 0.6/1kV
Code : YJV22 (copper) YJLV22 (aluminum)Standard : IEC 60502. GB/T 12706-2002

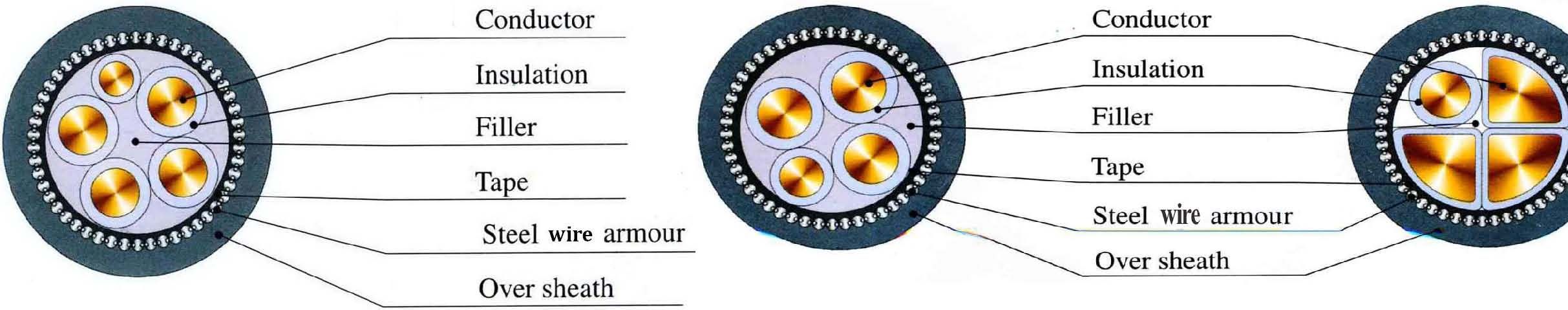

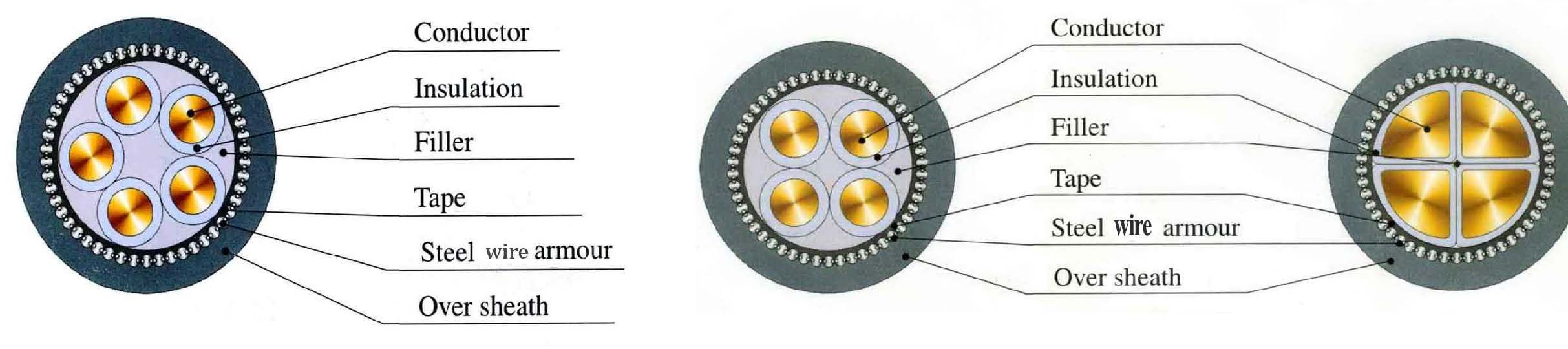

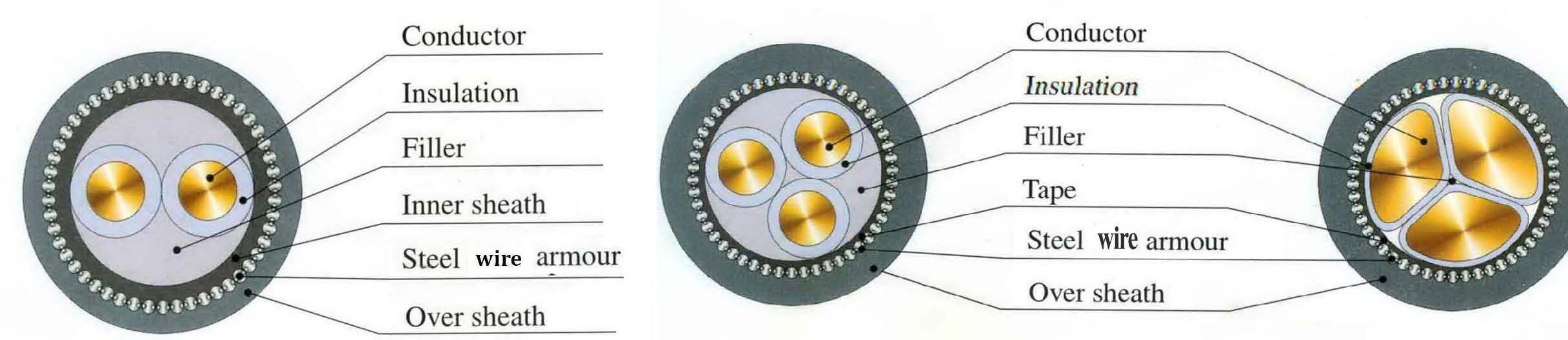

Construction : 1-Solid or Stranded Copper Conductor2-XLPE insulation (cross-linked PE). 3-PVC Inner Sheath 4 Steel Wire Armour
5-PVC outer sheath
Application :Preferably for installation indoors. in cable ducts and in industrial plants or switching stations. under ground installation with additional protection where mechanical damage is unexpected.
Technical Data : Max. operating temperature 90ºC Short circuit temperature 250ºC
0.6/1kV 2-core steel wire Power Cable 0.6/1kV 3-core steel wire Power Cable.

0.6/1kV 4+1-core steel wire Power Cable 0.6/1kV 3+1-core steel wire Power Cable .
0.6/1kV 5-core steel wire Power Cable 0.6/1kV 4-core steel wire Power Cable .
0.6/1kV, 2, 3-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32 0.6/1kV, 3+1-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32 0.6/1kV, 4-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

0.6/1kV, 4+1-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32 0.6/1kV,5-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Nominal	OD. of	Thickness of	Thickness of		Approx. weight
cross-section	conductor	insulation	sheath	Approx. OD.	kg/km
mm 2	mm	mm	mm	mm	CU	AL
2×10	4.1	0.7	1.8	20.9	912.1	783.9
2×16	5.1	0.7	1.8	23.0	1124	920.6
2×25	6.4	0.9	1.8	26.4	1478	1156
2×35	7.6	0.9	1.8	28.7	1775	1328
2×50	5.6	1.0	1.9	25.4	1792	1231
2×70	6.7	1.1	2.0	29.4	2543	1733
2×95	8.1	1.1	2.1	32.4	3146	2022
2×120	9	1.2	2.3	35.0	3746	2328
2×150	11.7	1.4	2.4	42.6	5041	3292
2×185	12	1.6	2.6	44.4	5835	3646
3×10	4.1	0.7	1.8	21.7	1049	856.4
3×16	5.1	0.7	1.8	24.0	1323	1017
3×25	6.4	0.9	1.8	27.7	1779	1296
3×35	7.6	0.9	1.8	30.2	2174	1504
3×50	5.6	1.0	2.0	29.7	2433	1592
3×70	6.7	1.1	2.1	34.6	3429	2215
3×95	8.1	1.1	2.2	38.1	4327	2641
3×120	9	1.2	2.3	41.3	5192	3066
3×150	11.7	1.4	2.5	46.8	6704	4080
3×185	12	1.6	2.7	51.0	8029	4747
3×240	15.9	1.7	2.9	56.3	9995	5680
3×300	17.8	1.8	3.0	61.2	12031	6618

Nominal cross-section	OD. of conductor	Thickness of insulation	Thickness of sheath	Approx. OD.	Approx. weight
					kg/km
mm 2	mm	mm	mm	mm	CU	AL
3×10+1×6	12.6	0.7	1.8	22.4	1137	907
	10.7	0.7
3×16+1×10	14.2	0.9	1.8	25.0	1471	1101
	10.7	0.7
3×25+1×16	12.9	0.9	1.8	28.8	1984	1398
	9.8	0.7
3×35+1×16	13.9	0.9	1.9	31.0	2372	1599
	10.7	0.7
3×50+1×25	15.8	1.0	2.0	32.0	2807	1805
	10.7	0.9
3×70+1×35	17.6	1.1	2.1	38.5	4012	2574
	12.6	0.9
3×95+1×50	20.3	1.1	2.3	42.7	5038	3049
	14.2	1.0
3×120+1×70	22.7	1.2	2.4	47.7	6661	4097
	15.8	1.1
3×150+1×70	13.9	1.4	46.8	50.2	7768	4707
	10.7	1.1
3×185+1×95	15.3	1.6	51.2	56.6	9357	5468
	12.6	1.1
3×240+1×120	17.4	1.7	56.5	62.3	11592	6511
	14.2	1.2

Nominal cross-section	OD. of conductor	Thickness of insulation	Thickness of sheath	Approx. OD.	Approx. weight
Nominal cross-section	OD. of conductor	Thickness of insulation	Thickness of sheath	Approx. OD.	kg/km
mm 2	mm	mm	mm	mm	CU	AL
4×10	4.1	0.7	1.8	23.2	1217	960.6
4×16	5.1	0.7	1.8	25.7	1560	1153
4×25	6.4	0.9	1.8	29.9	2132	1487
4×35	7.6	0.9	1.8	32.9	2649	1755
4×50	5.6	1.0	2.0	33.0	3218	2097
4×70	6.7	1.1	2.1	38.7	4312	2692
4×95	8.1	1.1	2.2	42.7	5468	3221
4×120	9	1.2	2.3	47.9	7087	4252
4×150	11.7	1.4	2.5	52.4	8469	4972
4×185	12	1.6	2.7	57.0	10148	5771
4×240	15.9	1.7	2.9	62.9	13238	6921
4×300	17.8	1.8	3.0	69.1	16273	7798

0.6/1kV, 4+1-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32 0.6/1kV,5-core XLPE Insulated Steel Wire Armored PVC Sheathed power cable YJV32,YJLV32

Nominal cross-section	OD. of conductor	Thickness of insulation	Thickness of sheath	Approx. OD.	Approx. weight
					kg/km
mm 2	mm	mm	mm	mm	CU	AL
4×10+1×6	4.1	0.7	1.8	24.0	1317	1023
	2.8	0.7
4×16+1×10	5.1	0.7	1.8	27.0	1722	1251
	4.1	0.7
4×25+1×16	6.4	0.9	1.8	31.5	2370	1624
	5.1	0.7
4×35+1×16	7.6	0.9	1.9	33.9	2858	1863
	5.1	0.7
4×50+1×25	8.3	1.0	2.1	38.3	3815	2482
	6.0	0.9
4×70+1×35	9.8	1.1	2.3	42.9	4920	3036
	7.0	0.9
4×95+1×50	11.5	1.1	2.5	49.0	6858	4201
	8.3	1.0
4×120+1×70	12.9	1.2	2.6	53.5	8318	4914
	9.8	1.1
4×150+1×70	14.5	1.4	2.7	58.2	9867	5694
	9.8	1.1
4×185+1×95	16.0	1.6	2.9	63.9	11681	6606
	11.5	1.1
4×240+1×120	18.3	1.7	3.2	70.9	14589	7972
	12.9	1.2

Nominal cross-section	OD. of conductor	Thickness of insulation	Thickness of sheath	Approx. OD.	Approx. weight
Nominal cross-section	OD. of conductor	Thickness of insulation	Thickness of sheath	Approx. OD.	kg/km
mm 2	mm	mm	mm	mm	CU	AL
5×10	4.1	1.0	1.8	24.7	1391	1071
5×16	5.1	1.0	1.8	27.6	1805	1296
5×25	6.4	1.2	1.9	32.4	2501	1704
5×35	7.6	1.2	2.0	36.5	3375	2258
5×50	8.3	1.4	2.2	39.4	4093	2620
5×70	9.8	1.4	2.3	44.6	5326	3244
5×95	11.5	1.6	2.5	50.8	7432	4479
5×120	12.9	1.6	2.7	55.7	8999	5265
5×150	14.5	1.8	2.8	61.5	10936	6241
5×185	16	2.0	3.0	67.2	12793	7188
5×240	18.3	2.2	3.3	74.8	16041	8703
5×300	20.5	2.4	3.5	83.2	20754	11332
